Thank you very much for purchasing our products, please read the manual in its entirety before
use.
01

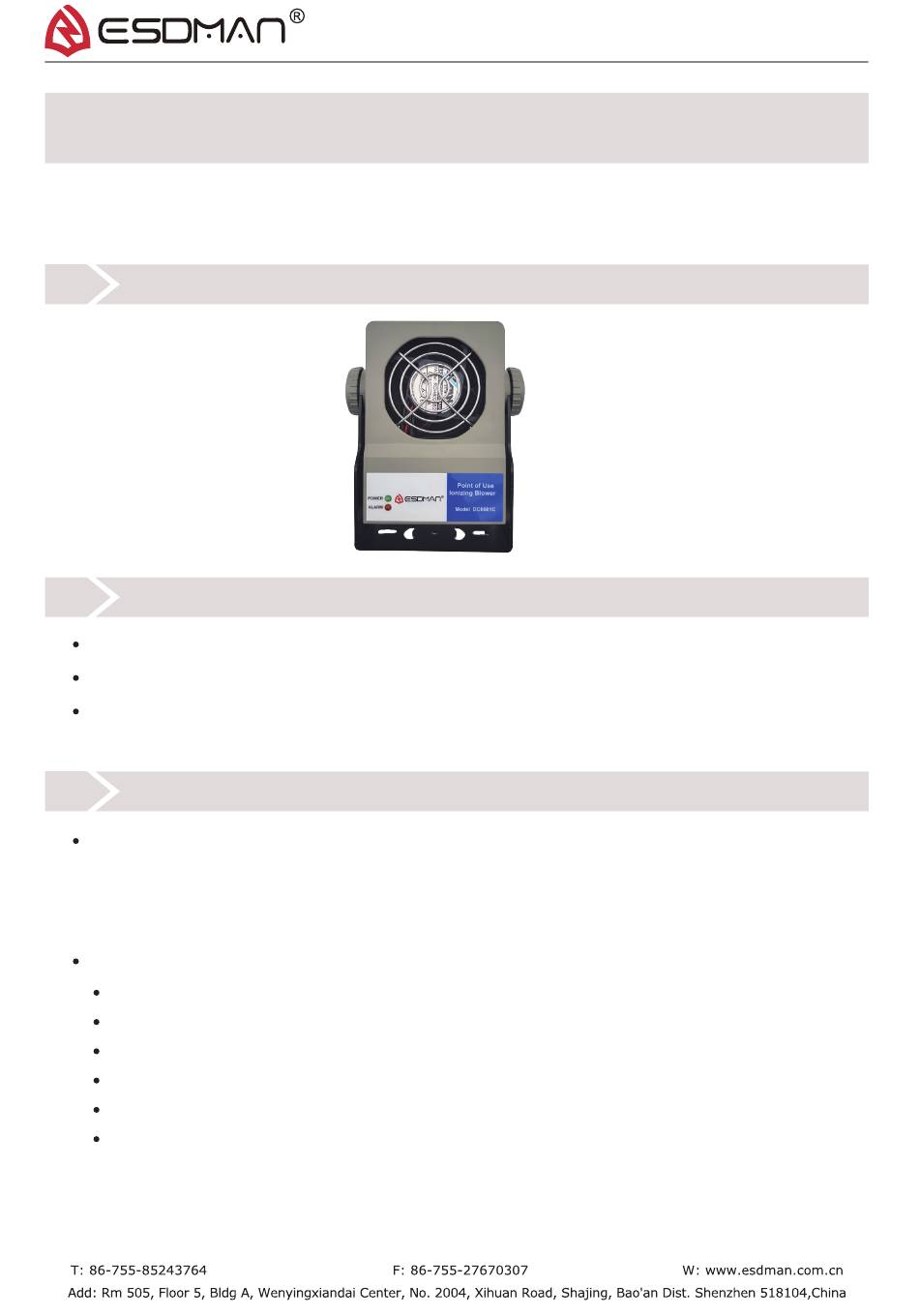

Product Picture
02
Safety
Do not disassemble the product without permission.
Do not use in dangerous environment.(such as flammable and explosive)
Do not use in place with plenty of oil or water，high temperature and humidity,
especially in places with condensation.
03
Product Description
Adopting steady-state DC ionization technology, it is generally used to deal with static
electricity problems during assembly, testing, and packaging. It can also be installed in
equipment to provide rapid static elimination in a limited space to solve static electricity
generated during high-end manufacturing processes.
Steady-state DC ionization technology has the following advantages:
Compact body design, light weight,
Both sides buckles design, can lock the blowing angle,
Stable ion balance,
Longer cleaning and maintenance intervals,
No need for grounding, easy installation,
The emitter tip has high-voltage shielding technology to avoid electric field induction charging,
In the case of low wind speed, it can provide faster static dissipation speed, low wind speed and
low noise, which will not cause much noise to the production environment, making the operator
more comfortable.
Sp e ci fi c ation
Point of Use Ionizing Blower_DC0601C
Advertisement
Table of Contents
Summary of Contents for ESDMAN DC0601C
- Page 1 Sp e ci fi c ation Point of Use Ionizing Blower_DC0601C Thank you very much for purchasing our products, please read the manual in its entirety before use. Product Picture Safety Do not disassemble the product without permission. Do not use in dangerous environment.(such as flammable and explosive) Do not use in place with plenty of oil or water，high temperature and humidity, especially in places with condensation.
- Page 2 Can be powered by device power DC24V Input Small space is required, reducing the impact on Meet cleanliness requirements laminar wind Specifications Model DC0601C Input Voltage DC24V±5% Operating Power Approx. 4.5W Approx 2.0s ( 30 cm distance, maximum air volume, No dust filter) Decay Time ±10V...
- Page 3 Signal output DC24V signal will be output. 0.7m³/min Air volume Below 0.004ppm (distance 150mm) Ozone 0-40°C 20-75%RH（non condensing） Operating Env. 117*83*64mm Without bracket 138*115*64mmWith bracket H*W*D Dimension Aprpox 0.4Kg Net weight ABS Shell + aluminum alloy oxide bracket Case material One year Warranty Certification...
- Page 4 Installation Insert the DC head of the attached power adapter into the power port on the back of the instrument, connect the power adapter to the AC110-220V socket, the POWER green indicator light is on, and the instrument is running normally. Installation Method Use M6 screws and nuts to fix the bottom bracket of the fan at an appropriate position that needs to eliminate static electricity.
- Page 5 Test Schematic Field test method: During on-site testing, the test panel of the instrument should be placed where the ESD sensitive components are actually operated. The specific test method is subject to the instructions of different test instruments. Static Elimination Performance Operating Voltage: DC24V Temperature23±3 Test Voltage ±1000V-±100V...
- Page 6 When the high pressure is abnormal, the red light of ALARM will prompt the operator to overhaul the fan. Warranty ESDMAN's products have undergone strict factory inspection. In case of failure, please contact the nearest ESDMAN office and provide details of the failure. Warranty Period The warranty period is one year, starting from the day the product is delivered to the place designated by the purchaser.
