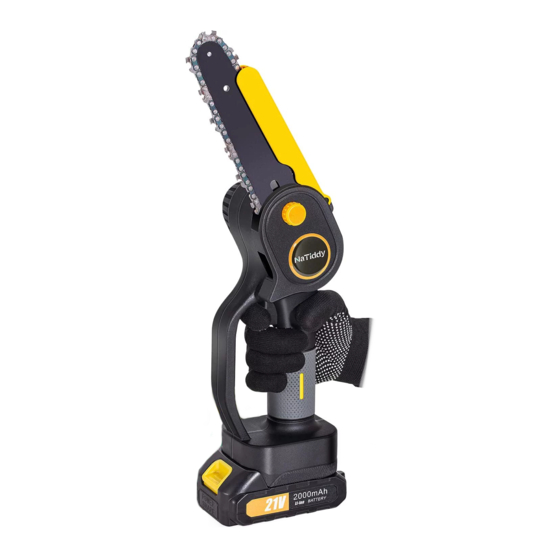

Summary of Contents for NATIDDY GB-CS001

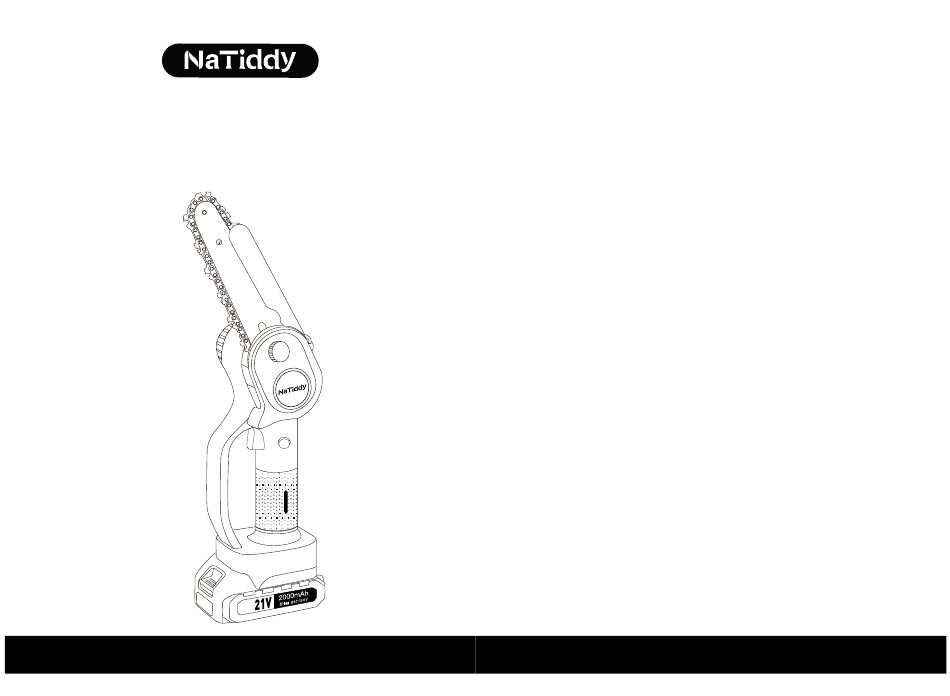

- Page 1 21V Cordless Mini Chainsaw User Manual Ushering in a New Era of Garden Tidy Please read this user manual carefully before using, and save it for future reference.
-
Page 2: Table Of Contents
Contents 1. Safety Instructions 2. Major Components of the 6’’ Cordless Mini Chainsaw 3. What’s in the Box 4. Product Specifications 5. Relevant Symbols 6. Charging Procedure 7. Operation Tips 7.1 Switch Action 7.2 How to Change the Saw Chain 8. -
Page 3: Safety Instructions
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to Safety Instructions power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. •... - Page 4 (6). Keep handles dry, clean, and free from oil and grease. Greasy and oily handles are slippery, (1). Health defects resulting from vibration emission if the product is being used over longer thus causing loss of control. period of time or not adequately managed and properly maintained. (7).
-
Page 5: Major Components Of The 6'' Cordless Mini Chainsaw
Battery Assembly Switch CAUTION: These accessories or attachments are recommended for use with your NaTiddy tool Battery Pack specified in this manual. The use of any other accessories or attachments might present a risk of injury... -
Page 6: Product Specifications
Product Specifications Relevant Symbols The following shows the symbols used for the equipment. Be sure that you understand Name GB-CS001 their meanings before use. Rated Voltage 21V DC Warning, safety alert. Horse Power 300W No Load Speed 4000RPM Read and follow all safety... -
Page 7: Charging Procedure
(3). While charging, the charger may hum and become warm to touch. This is a normal phenom- Charging Procedure enon and does not indicate a problem. (4). If the batteries do not charge properly: a. Check current at the receptacle by plugging in a lamp or other appliances. b. -
Page 8: Operation Tips
Operation Tips Step 2 Remove the side cover. 7.1 Switch Action CAUTION: • Before inserting the battery pack into the tool, always check to see that the switch trigger actuates properly and returns to the “Locked” position when released. • To prevent the switch trigger from being accidentally pulled, a lock-off button is provided. •... - Page 9 Step 4 Adjust the snap position. Step 6 Adjust the tightness of the chain. Step 5 Step 7 Install the guide plate and new chain and Put in the side cover and nut and tighten the nut. notice the direction of the chain.
-
Page 10: Maintenance, Storage And Disposal
Maintenance, Storage and Disposal Step 8 The chain replacement is complete. (1). Keep all nuts, bolts and screws tight to make sure that the product is in safe working condition. (2). Store the product only in a dry place. When not in use, store the machine in a place out of the reach of children. -
Page 11: After-Sales Information
After-Sales Information Remedy/Return Rules (1). Natiddy will repair or replace (at Natiddy’s option ) any Natiddy product that fails to operate during 10 months from the date of purchase by the original consumer purchaser due to defect in workmanship or material. If a valid claim is made during the applicable period, Natiddy, at its option, will either replace the new product , or exchange the product with a new product that is of equal value.
Need help?
Do you have a question about the GB-CS001 and is the answer not in the manual?
Questions and answers

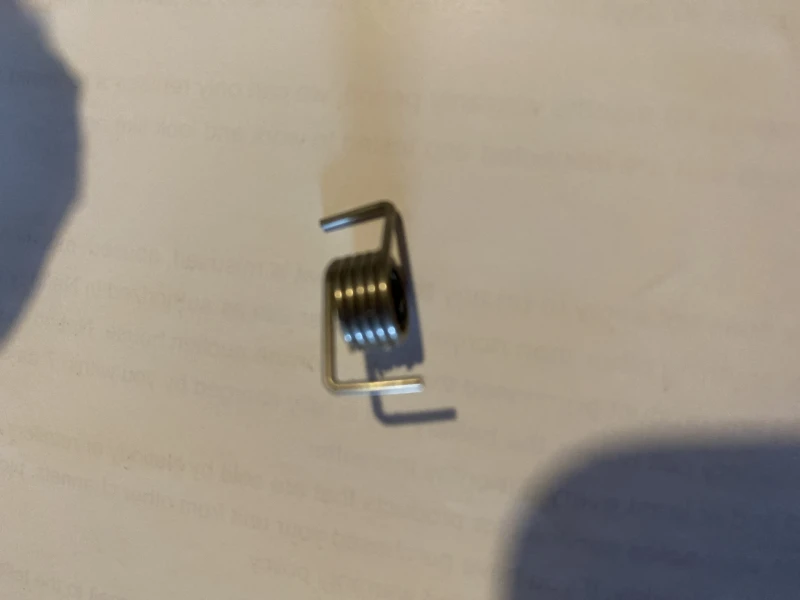

Where is the spring located on the natiddy ant chainsaw. It popped out when I was working on the chain and I didn’t see where it came from and it isn’t mentioned in the manual
