Summary of Contents for Clint floyd FVW Series

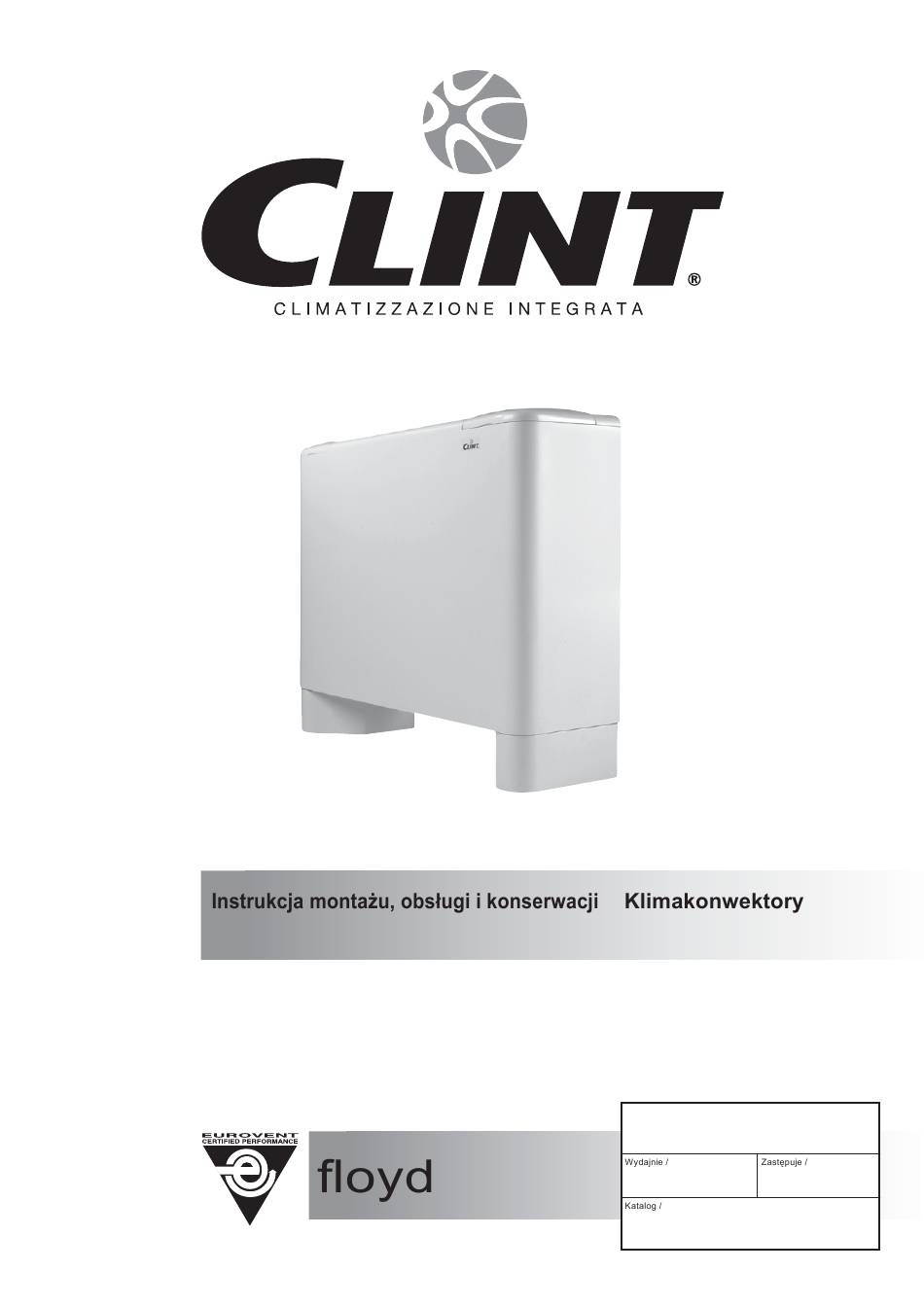

- Page 1 • Installation, use and maintenance manual • Fan coil units Seria / Series FVW 12÷74 Edition Superseedes 04.06 05.05 Catalogue CLM 84...
- Page 2 G. I. Holding S.p.A. thanks you for your choice in the purchase of this fan coil unit. This manual must be read completely and carefully. The messages “Danger” and “Warning” in the usage insructions must be given special attention; if they are not observed there may be damage to the fan coil unit and/or to persons and things.
- Page 3 Enclosure This is realized in pre-painted, rust and corrosion resistant sheet metal. Air filter Washable dry air filter in acrylic material, placed in a sturdy galvanized sheet metal frame. Internal frame Built in thick galvanized sheet metal with pre-punched holes for the various configurations.
-
Page 4: Electrical Connections
2.2 Obracanie wymiennika 2.2 Coil rotation Jeżeli montaż wymaga obrócenia wymiennika, postępuj zgodnie z poniż- If installation requirements make it necessary to rotate the coil, proceed szym opisem: in the following manner: • Zdemontuj obudowę klimakonwektora (Fig. A). • Remove the cabinet from the fan coil unit (Fig. A). •... -
Page 5: Operation And Control
Operation and control 3.1 Wbudowane lub zdalne sterowanie obro- 3.1 Built-in or remote fan speed control tami wentylatora (opcja) (optional) This is equipped with a three-position selector for the selection of the fan speed and another selector to switch the unit on and off. To turn on the fan coil unit, use this second selector and select the operating mode Cooling... - Page 6 Konserwacja / Maintenance Uwaga! Attention! All maintenance operations must be perfor- med after disconnecting the electrical power supply from the fan coil unit. Each year, it is advisable to perform spe- cial maintenance for complete cleaning of the fan coil unit, contacting the retailer or the authorized technical customer service center.
-
Page 7: Spare Parts List
Spare parts list Legend Rh door Lf ddor Center grille Panel Front air intake grille (VH and VO version only) Crosspiece Rh reinforcement Lf reinforcement Moisture drain pan (horizontal models only) Air filter Fan group Standard coil / Frame Control support Panel closing (vertical version only) Warnings Before any maintenance work, disconnect... -
Page 8: Troubleshooting
Symbole ostrzegawcze / Safety symbols Danger: live current Ground Legend Danger: moving parts Transport / Transportation Don’t stand on packages. Do not let the packaging get wet. Do not transport the package alone if its weight is more than Always check on the package for 35 kg.
