Summary of Contents for ASTE Heineken Vault

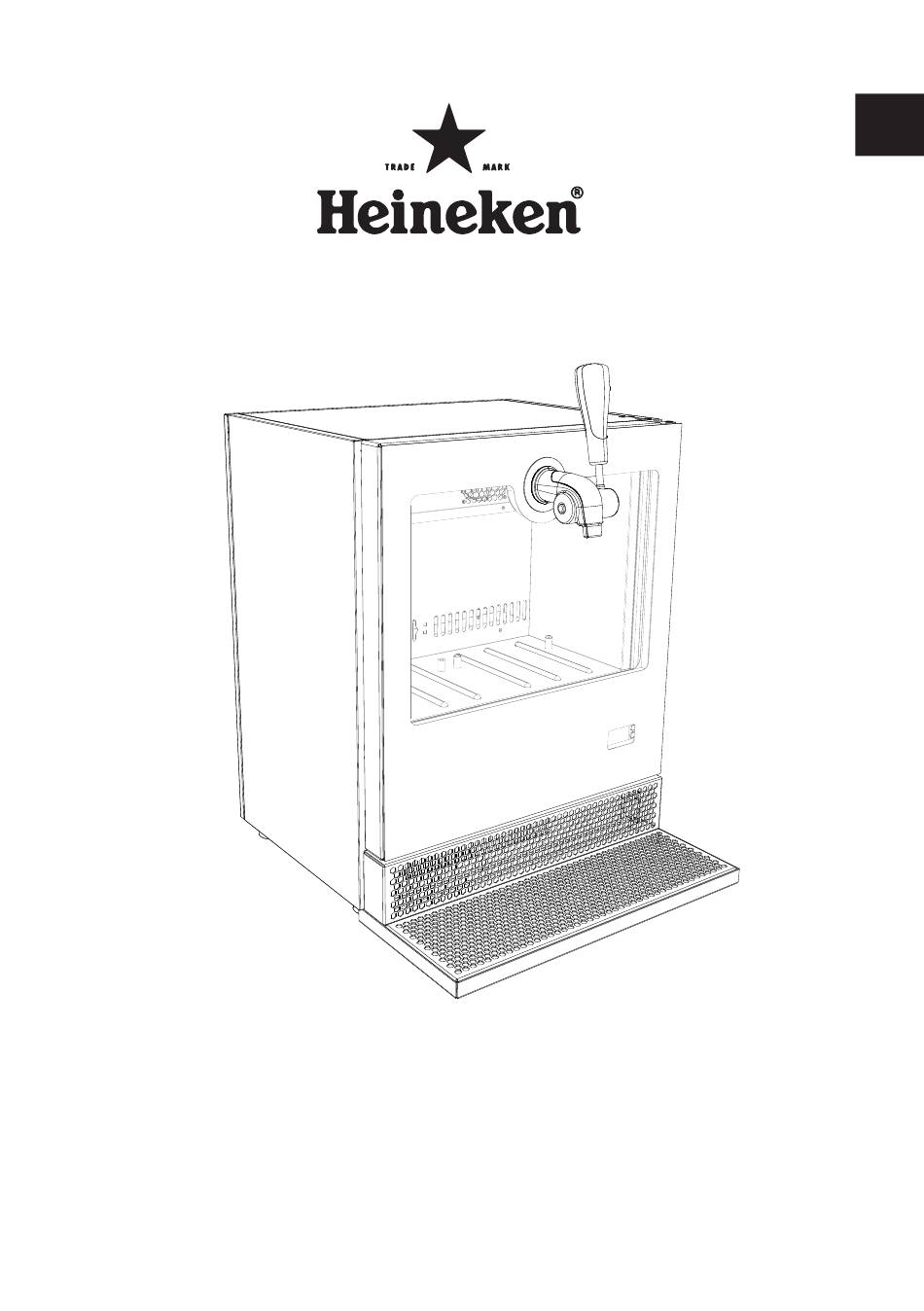

- Page 1 User Manual THE VAULT COMMERCIAL BEER DISPENSER SINGLE TAP | TWIN TAP...
- Page 2 1. Safety Instructions • Please read this operating and maintenance guide carefully and also give it to anyone else assigned the task of handling and using this unit. This operating and maintenance guide must be kept during the expected service life of the unit and also always be available at the unit.
- Page 3 2. Serving the beer Pouring beer Removing the keg Installing the keg Precooling the keg Cleaning the driptray...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safety Instructions ................... Serving the beer....................Unpacking and handling .................. Usage....................... 4.1. Electronic Controller ................. 6 4.2. Adjusting Temperature ................6 4.3. LED lightning .................... 6 Maintenance ....................5.1. Cleaning after daily usage................ 6 5.2. Cleaning the condenser ................7 Technical information .................. -
Page 5: Unpacking And Handling
3. Unpacking and handling • Check that the packaging and appliance are intact. Check the external condition of the packaging and the appliance when you remove the appliance from its packaging. Notify the vendor as soon as possible of any problems with the packaging or the appliance. -
Page 6: Usage
4. Usage 4.1. Electronic Controller When the appliance is connected to the mains current, the electronic temperature control shows the temperature of the appliance at that moment. The temperature is always displayed while the appliance is connected to the mains. The Vault is fully automatic cooling system, you don´t need to adjust temperatures during the usage. -
Page 7: Cleaning The Condenser
5.2. Cleaning the condenser Condenser must be cleaned every 3 months or when necessary. Clean the condenser with a brush or vacuum cleaner. To do this, remove the ventilation grating by pulling it out from side edges in order to reach the condenser (see Figures 1, 2 and 3). -
Page 8: Technical Information
6. Technical information Product - The Vault Net weight......................30 kg Gross volume ....................... 21 l External dimension h, w, d............580 x 455 x 350 mm Power input......................180 W Defrosting ....................Automatic Compressor ......................ACC Energy consumption ................1,5 kWh/24 h Evaporator ................Finned coil evaporator Condenser ................ -
Page 9: Exploded View And Part List
8. Exploded view and part list Part nr. Description Per unit 1 106-0010 Controller 1,00 PCS 2 107-0010 Evaporator fan 2,00 PCS 3 710-0046 Keg guide pin 4,00 PCS... -
Page 10: Environmental Policy And Recycling
9. Environmental Policy and Recycling The basic is to consider the environment throughout the whole lifetime of our products; from design process through production till the final recycling. We explore continuously the economical and effective use of new environmentally friendly materials on our products and production. Our target is to minimize the use of nonrenewable natural resources. -
Page 11: Troubleshooting
Connect The Vault to the the mains power supply. power supply. The Vault doesn’t turn on The electronic board may be Contact the ASTE customer defective. service. Remove the tube spout from The tube spout is not inserted You can’t close the tap cover The Vault and fit it again fol- correctly. - Page 12 MANUFACTURED BY: ASTE FINLAND OY Koskivuorenkatu 5 30420 Forssa - FINLAND info@astecoolers.com Tel. +358 2970 200 160 www.astecoolers.com...
