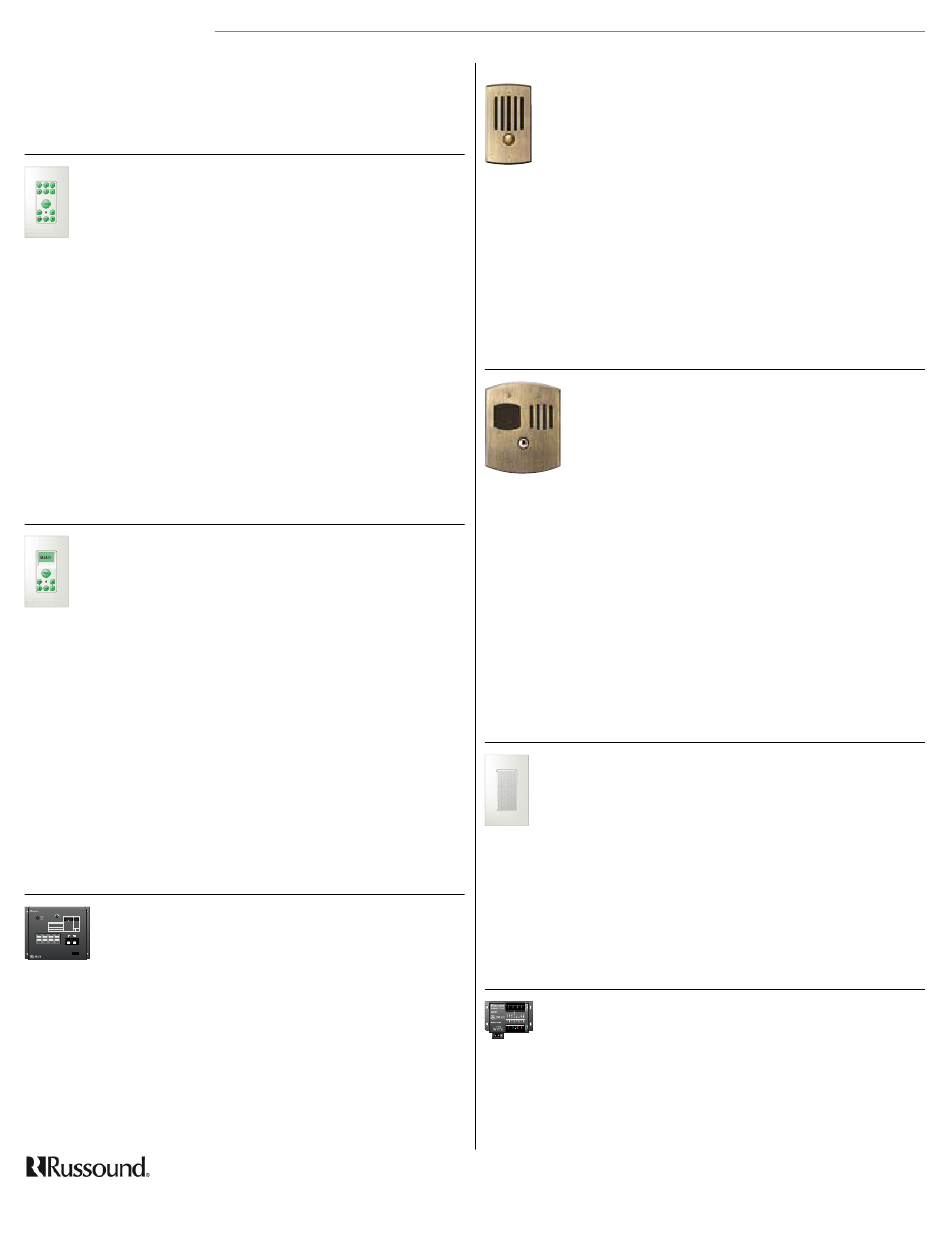

Specifications

System
Maximum zones: 36 (up to 6 hubs)
Door stations: 2 maximum
Communications cable: CAT-5/CAT-5e
Maximum cable length: 250 feet (76 m) per zone or door station
ISK1 Basic Keypad
User controls: 6 zone selection/indication keys
Key backlighting: Installer-selectable amber or green, with red
Audio input: Built-in microphone with automatic gain control
Amplifier: Monaural (for system functions only)
Min. load impedance: 6 ohms per channel
Speaker relay: 4-pole double-throw
Speaker relay rating: 50 watts RMS continuous
Speaker connector: 8-pole screw terminal
Speaker wire size: Up to 14 AWG (1.63 mm)
CAT-5 connector: 110 punch-down block
Power consumption: 15 VDC 800 mA maximum, 200 mA typical
Keypad style: Single-gang Decora®
Available colors: White/almond, bone, brown, black
Dimensions: 1.875" W x 4.188" H x 2.5" D
Weight: 4.8 oz (136 g)
ISK2 Advanced Keypad
Display: 5-character backlit LCD panel
User controls: Talk key
Backlighting: Installer-selectable amber or green, with red
Audio input: Built-in microphone with automatic gain control
Amplifier: Monaural (for system functions only)
Min. load impedance: 6 ohms per channel
Speaker relay: 4-pole double-throw
Speaker relay rating: 50 watts RMS continuous
Speaker connector: 8-pole screw terminal
Speaker wire size: Up to 14 AWG (1.63 mm)
CAT-5 connector: 110 punch-down block
Power consumption: 15 VDC 800 mA maximum, 200 mA typical
Keypad style: Single-gang Decora®
Available colors: White/almond, bone, brown, black
Dimensions: 1.875" W x 4.188" H x 2.625" D
Weight: 5.6 oz (159 g)
ISH1 Hub
Keypad ports: (6) 8-pole modular RJ-45
Door station ports: (2) 8-pole modular RJ-45
Link ports: (2) 8-pole modular RJ-45
Update port: 4-pole port for Programming Cable, Russound
Switches: 4-switch DIP for hub ID setting
Doorbell options: 7 selectable chime patterns plus no chime
Power requirement: 15 VDC 3.5 A (Use model ISPS power supply)
Mounting method: Surface or structured wiring panel
Dimensions: 6.438" W x 5.125" H x 1.813" D
Weight: 25.6 oz (0.73 kg)
5 Forbes Road, Newmarket, New Hampshire 03857 USA
Since 1967, innovation, quality and reliability have been the core of the Russound product tradition. Today, Russound offers everything for enjoying multiroom audio-video in your home. All
audio-video distributed solutions are built to high standards and designed with the unique consideration of making products that are a pleasure to live with and enjoy.
©2008 Russound. All rights reserved. All trademarks are the property of their respective owners. Specifications are subject to change without notice.
Russound is not responsible for typographical errors or omissions.
Talk key
2 door selection/indication keys
DND selection/indication key
Volume Up and Volume Down keys
function indication
(4.8 x 10.6 x 6.4 cm)
Next and Previous keys
DND selection/indication key
Volume Up and Volume Down keys
function indication
(4.8 x 10.6 x 6.7 cm)
part #2500-521065
8-switch DIP for 2 doorbell settings
Potentiometer for doorbell volume
(16.4 x 13.0 x 4.6 cm)
ISK3 Door Station
User control: Call key with amber backlight
Audio input: Built-in microphone with automatic gain control
Amplifier: Monaural (for system functions only)
Volume control: Installer-adjustable potentiometer
Audio output: Built-in speaker
Cover plate: Weatherproof plated die-cast zinc
CAT-5 connector: 110 punch-down block
Doorbell connector: 2-pole screw terminal
Doorbell wire size: Up to 18 AWG (1.024 mm)
Doorbell contact: 1 A @ 12 VDC
Power consumption: 15 VDC 220 mA maximum
Available finishes: Polished brass, antique brass, brushed chrome
Overall dimensions: 3" W x 5.125" H x 3.25" D (7.6 x 13.0 x 8.3 cm)
Dimensions in wall box: 2" W x 2.875" H x 2.75" D (5.1 x 7.3 x 7.0 cm)
Wall box required: Single gang, 22 cu in (360 cm3) min. volume
Weight: 8 oz (227 g)
ISK4 Camera Door Station
User control: Call button with amber backlight
Audio input: Built-in microphone with automatic gain control
Amplifier: Monaural (for system functions only)
Volume control: Installer-adjustable potentiometer
Audio output: Built-in speaker
Video output: Composite, 75 ohms unbalanced
Camera resolution: 600 horizontal lines
Camera sensitivity: 0.1 lux minimum illumination
Cover plate: Weatherproof plated die-cast zinc
Intercom CAT-5 connector: 110 punch-down block
Doorbell connector: 2-pole screw terminal
Doorbell wire size: Up to 18 AWG (1.024 mm)
Doorbell contact: 1 A @ 12 VDC
Door station power requirement: 15 VDC 220 mA maximum (provided from hub)
Camera power requirement: 12 VDC regulated, 100 mA
Available finishes: Antique brass, brushed chrome
Dimensions: 4.8" W × 5.8" H × 2.9" D (12.1 × 14.8 × 7.3 cm)
Weight: 15.8 oz (448 g)
ISSP Speaker
Device type: Single-gang Decora
Grille: Perforated aluminum
Driver: 1.25" x 2.5" (3.2 x 6.4 cm)
Connection: Attached wire leads
Power rating: 2 watts nominal, 5 watts maximum
Impedance: 8 ohms
Sensitivity: 86 dB SPL ± 3 dB at 1 watt/1 meter
Frequency response: 240 Hz – 15 kHz ± 10 dB
Available colors: White/almond
Dimensions: 1.65" W x 4.13" H x 1.42" D
Weight: 3 oz (85 g)
ISDR1 Door Strike Release Module
CAT-5 connectors: (2) 110 punch-down blocks
Strike release relay: 1-pole double-throw (NC/NO)
Relay connector: Removable 3-pole screw terminal
Relay wire size: Up to 14 AWG (1.63 mm)
Relay contact rating: 5 A @ 12 VDC
Mounting method: Surface
Dimensions: 3" W x 1.875" H x 1" D (7.6 x 4.8 x 2.5 cm)
Weight: 4.8 oz (136 g)
