Summary of Contents for Filamos CM Series

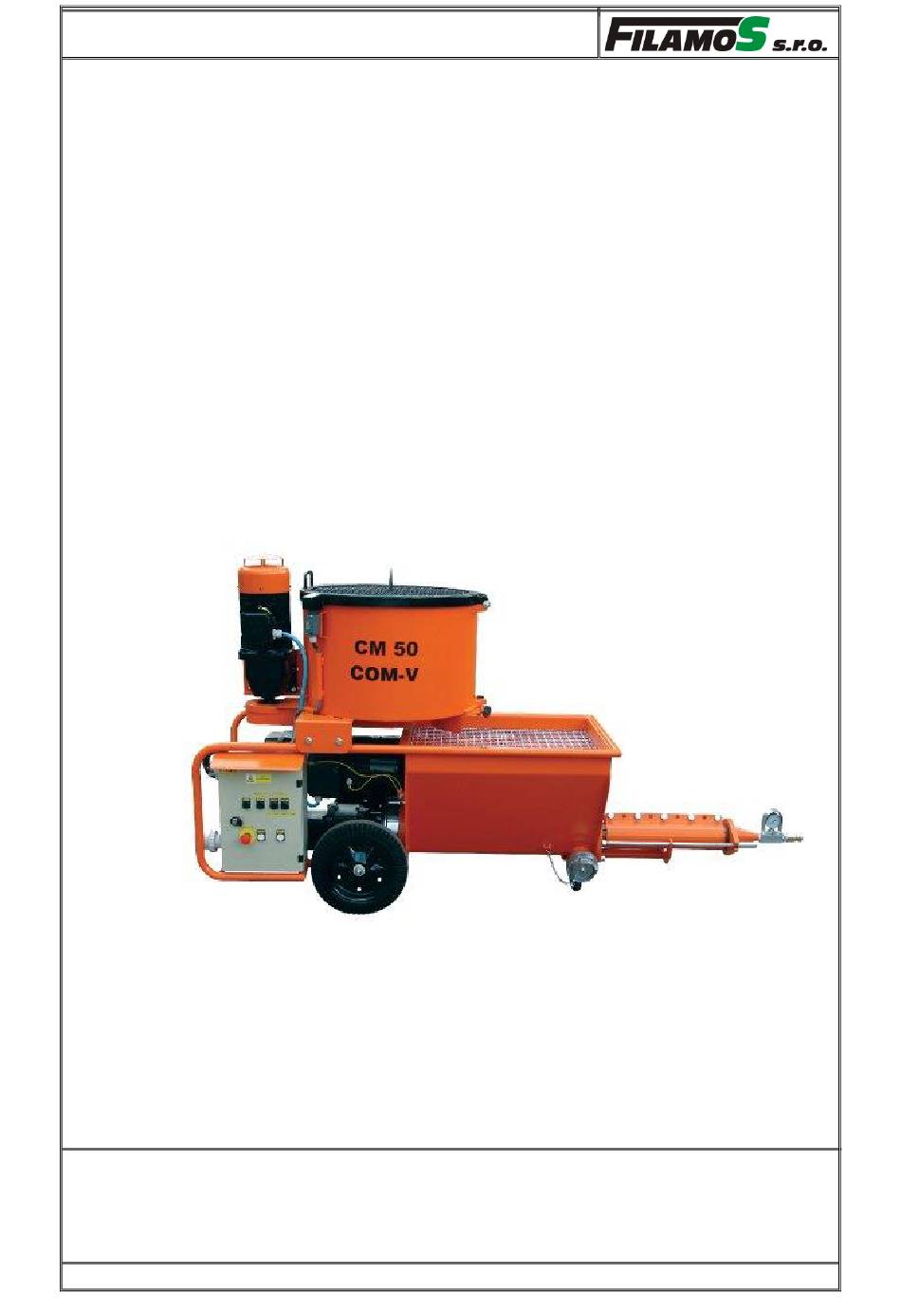

- Page 1 User Manual Pump for transport, plastering, grouting and injecting of fine- grained wet mixtures CM 50 COM-V , s.r.o. PRODUCER: FILAMOS Hatě 546, 261 01 Příbram, Czech Republic Tel: + 420 318 637 763, Fax: + 420 318 624 181 www.filamos.cz...
-
Page 2: Table Of Contents
Grouting and plastering pump CM 50 C0M-V CONTENT Page Terminology and marking...............3 Machine use ..................3 III. Machine description ..............3 Technical data ................6 Instructions for operation and maintenance ........7 Testing ..................13 VII. Acceptance, delivery, warranty ........... 13 VIII. Packaging, transport, storage ............. 14 Service .................. -
Page 3: Terminology And Marking
CM – basic marking of machine (pump + compulsory mixer) 50 – type series (max. output in l/min) COM-V – machine drive equipped with a variator Manufacturer Name: FILAMOS, s.r.o. Hatě 546, 261 01 Příbram Registered office and business address: III, Czech Republic Telephone:... - Page 4 Grouting and plastering pump CM 50 C0M-V Mixer: - tank - drive (gearbox with electric motor) - stirrer - gear mechanism - seal - cover with filter and position switch - electric actuation (separate switchboard) Mixture (bagged or from silo) is fed to the mixer tank through a sieve of the cover, which is provided with comb to rupture the packaging of bagged mixes.
- Page 5 Grouting and plastering pump CM 50 C0M-V Mixer is controlled by the START button to start and by STOP button for ending operation. When lifting the lid, the mixer automatically shuts down by limit switch. In an emergency, you can stop the mixer by pressing TOTAL STOP. The pump is controlled by the START button to start and by STOP button for ending operation.
-
Page 6: Technical Data
Grouting and plastering pump CM 50 C0M-V IV. Technical data Mixer Tank volume 150 dm3 Stirrer rate 65 rpm Electric motor input 2,2 kW Pump Pump is fitted with various types of conveyors according to the customer request for maximum capacity (l/min) and maximum pressure (MPa). Type of conveyor Max. -
Page 7: Instructions For Operation And Maintenance
Grouting and plastering pump CM 50 C0M-V All parts are made in accordance with this documentation, intolerable dimensions conform to the relevant standard. Welds are made according to technical documentation. Coating, paint and colors correspond to documentation - coating thickness is 100μm. - Page 8 Grouting and plastering pump CM 50 C0M-V Machine preparation Before putting the machine into operation, it is necessary first to examine the connection of machine drive to the mains, which must comply with the applicable safety regulations. The machine can be used only if the connection to the power supply is in good condition.
- Page 9 Grouting and plastering pump CM 50 C0M-V During operation the operator has a duty to continuously monitor the temperature of the machine, especially the jacket temperature of the gearbox. When carrying the machine by crane, forklift, during transport or when moving to another workplace machine must be disconnected from the mains or from an external source of compressed air.
- Page 10 Grouting and plastering pump CM 50 C0M-V Security risks Repairs of el. installation must be performed only by a person with professional training and electrical qualifications according to applicable regulations. During repairs, cleaning and inspection machine, always disconnect the machine from the power supply. When lifting covers (screens) do not reach into tanks, if the device is not disconnected from the mains - the risk of injury from the rotating agitator mixer or pump shoving screw...
- Page 11 In addition, this technician must be trained by Filamos, s.r.o. Before starting any maintenance activities activate all appropriate safety equipment and assess whether it will be necessary to warn personnel working in the vicinity.
- Page 12 Grouting and plastering pump CM 50 C0M-V Daily checking Rotor (worm) and stator (casing) state check, Transport hoses and pressure gauge state check Weekly checking All screw connections check Electric wiring state and tightening check Yearly checking - Check of oil level in gearbox In operation, the operator must monitor the correct operation of the device.
-
Page 13: Testing
Grouting and plastering pump CM 50 C0M-V You can mix different brands of oil, never synthetic and mineral oil each other! VI. Testing Dimensional inspection done by the manufacturer according to the drawings. Features of the machine are controlled functional test: directions, changes in rotation speed, the maximum delivery rate and maximum pressure tested with water. -
Page 14: Packaging, Transport, Storage
Grouting and plastering pump CM 50 C0M-V If damage to a third party or force majeure, During the warranty without warranty certificate (Certificate of Quality and Completeness), Wear agitator in the mixing vessel, shoving screw, rotor and stator, pressure gauge and transport hoses from the operation of the machine, because their life depends on the abrasiveness transported mixture by the machine manufacturer's control, If the used machinery manufacturers recommended blend mixture... - Page 15 THE END In Příbram – April, 2004 Made by: Ing. Jiří Labuda Company: FILAMOS, s.r.o., Hatě 546, 261 01 Příbram, Czech Republic...
- Page 16 Grouting and plastering pump CM 50 C0M-V Appendix No. 1: Machine scheme CM 50 COM-V (main parts)
- Page 17 Grouting and plastering pump CM 50 C0M-V Appendix No. 2: Electric wiring scheme CM-50 COM-V -XC 01.01 supply IP 67 -RM 01.01 distributor -F 03.01 engine switch -M 01 asynchronous motor 2,2 kW -F 03.03 engine switch -M 02 asynchronous motor 5,5 kW -F 01.01 circuit breaker -S 01.01...
