- Page 1 If you experience any difficulty with the installation or operation of your new shower, then please refer to the Fault Diagnosis section, before contacting Kohler Mira Ltd. Our telephone and fax numbers can be found in the back of this guide...
- Page 2 Important Information Products manufactured by Kohler Mira Ltd are designed to be safe, provided that they are installed, used and maintained in good working order, in accordance with our instructions and recommendations. Follow all warnings, cautions and instructions contained in this guide, and on, or inside the product.
- Page 3 Isolate electrical and water supplies to the product and contact Kohler Mira Ltd. 4. The Mira Mode can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental...
-
Page 4: Specifications
Guarantee The Mira Mode has been designed for domestic use only, it is not recommended for Commercial or Healthcare use. For domestic installations, Kohler Mira Limited, guarantee the Mira Mode against any defect in materials or workmanship for a period of five years from the date of purchase (shower fittings for one year). -
Page 5: Product Descriptions

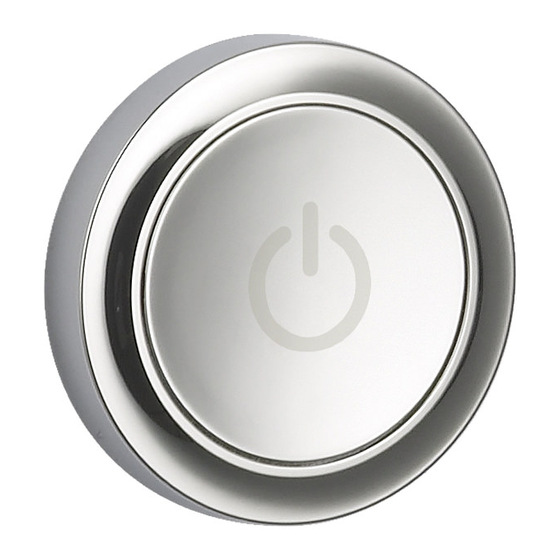

Product Descriptions Four versions of the interface are available and a Remote ON/OFF button. Basic functions are described below: Single Outlet Shower - 1874.202 Dual Outlet Shower - 1874.203 On/Off Button - Turns product On/Off. Shower Overhead Symbol (Top Button) – Turns Product Overhead On/Off. - Page 6 Pack Contents Interface (Included in Literature Pack) Pack Contents ON/OFF Button 1286337-W2-E...
- Page 7 Dimensions Ø62 Ø94 Ø48mm 38.2mm 50mm min. Refer to Digital Mixing Valve Installation guide for schematic. 1286337-W2-E...
- Page 8 Install the Interface Position the installation template (supplied) at the position on the wall where you intend to install the interface. Make sure that the template is level. Mark the positions of the fixing holes on the wall. 1286337-W2-E...
- Page 9 Ø 29 - 30 mm DO NOT drill through the shower unit into the wall. DO NOT drill into buried cables or pipes. Caution! Be aware of hidden pipes or cables. For solid walls drill the fixing holes for the backplate with a 6 mm drill and insert the wall plugs (supplied).
- Page 10 Note! Cables routed through wall cavities, chased into solid walls, directed under baths or in attic spaces must be fitted in such a way so that they can later be removed. To facilitate this appropriate cable conduit / trunking must be used at all times. The conduit / trunking must be at least 20mm diameter / square to allow for safe removal of the connectors.
- Page 11 Locate the top of the interface in the backplate and press down on the bottom button as you install in position. Install the On/Off Button Ø29~30mm Decide on a suitable location for the ON/OFF button. Mark the centre position and draw a vertical line using a spirit level to assist in the alignment of the ON/OFF button.
- Page 12 Route the cable from the digital valve through the hole in the wall. Note! Cables routed through wall cavities, chased into solid walls, directed under baths or in attic spaces must be fitted in such a way so that they can later be removed. To facilitate this appropriate cable conduit / trunking must be used at all times.
- Page 13 Rubber Grommet Connect the cable to the back of the ON/OFF button. Push the rubber grommet into place. The alignment of the remote ON/OFF button cannot be adjusted when it is fitted. Make sure to test fitment before removing the tape. This will ensure that there is no clearance issue.
- Page 14 Carefully, visually align the symbol to the vertical line on the wall Locate into the hole in the wall and push firmly. Clean off the vertical line once the on/off remote is correctly installed. If required, the ON/OFF remote button can be removed from the backplate by rotating anticlockwise.
-
Page 15: Using The Shower
Using the Shower Note! The factory default maximum temperature is set to 45°C. On/Off Button Turns product On/Off. Rotary movement selects showering temperature Temperature Indicator S h o w e r O v e r h e a d Symbol - (Top Button) – Turns Product Overhead On/Off. - Page 16 Temperature Indicator light pulses on/off. Note: After 5 seconds the lights will pulse in a circular pattern around the interface bezel to indicate pairing mode, you need to continue to hold the button for the entire 10 seconds before releasing. Temperature Indicator...
- Page 17 Indicator light pulses on/off. Note! After 5 seconds the lights will pulse in a circular pattern around the interface bezel to indicate pairing mode, you need to continue to hold the button for the entire 10 seconds before releasing. Temperature Indicator...
- Page 18 Note! After 5 seconds the lights will pulse in a circular pattern around the interface bezel to indicate pairing mode, you need to continue to hold the button for the entire 10 seconds before releasing. Temperature Indicator...
- Page 19 Note! After 5 seconds the lights will pulse in a circular pattern around the interface bezel to indicate pairing mode, you need to continue to hold the button for the entire 10 seconds before releasing. Temperature Indicator...
- Page 20 Bathfill Preset Adjustment For Products with a Bath Fill Shower Interface and Dual Shower/Bath fill Interface Bath Fill Preset – Push down the plug in the bath. Hold down the Bath Symbol Button (bottom half) for 5 Seconds approx. until the Bath Symbol Button flashes.
- Page 21 The Bluetooth word mark and logos are registered trademarks owned by the ® Bluetooth SIG, Inc. and any use of such marks by Kohler Mira Ltd is under license. Other trademarks and trade names are those of their respective owners. 1286337-W2-E...
- Page 22 Dim or Off Flashing 2/s Ready to Set Bath fill learn Dim or Off Flashing 4/s mode Whilst in Bath fill learn mode Flashing 1/s Timeout warning at 1 min and Flashing 6/s Pulsing or On 10s before end of run time...
- Page 23 U p d a t e m o b i l e p h o n e t o Mode Showering App operating system the latest operating system. Note: The Mira Mode showering App will only run on the latest Apple and Android Operating Systems.
- Page 24 “Typical Suitable Installations” Reversed inlet supplies Check and remedy Digital Mixer valve box failure Contact Kohler Mira Ltd 1286337-W2-E...
-
Page 25: Disposal And Recycling
Cleaning Many household cleaners contain abrasives and chemical substances, and should not be used for cleaning plated or plastic fittings. These finishes should be cleaned with a mild washing up detergent or soap solution, and then wiped dry using a soft cloth. Disposal and Recycling When this appliance has reached the end of its serviceable life it should be disposed of in a safe manner, in accordance with current local authority recycling or waste disposal policy. -
Page 26: Spare Parts
Spare Parts Digital Interface 1874.274 1874.270 1874.272 Backplate Shower Interface Dual Shower Interface 1874.277 1874.273 1874.271 Interface Lead Dual Shower/Bath Fill Interface Bath Fill Shower Interface Remote ON/OFF Button 1874.275 ON/OFF Remote 1874.278 1874.276 Remote Lead ON/OFF Remote Backplate 1286337-W2-E... - Page 27 Spare Parts 1874.279 Coupler Cable - Bathfill Only 1874.280 Coupler Cable 1286337-W2-E...
-
Page 28: Customer Service
Kohler Mira Limited. Cromwell Road, K/E S.A.S. Cheltenham, 3 rue de Brennus, The company reserves the right Gloucestershire 93631, La Plaine Saint-Denis, to alter product specifi cations GL52 5EP France without notice. 14648 1473739-W6-A 1286337-W2-E © Kohler Mira Limited, April 2022...
