Instruction Manual

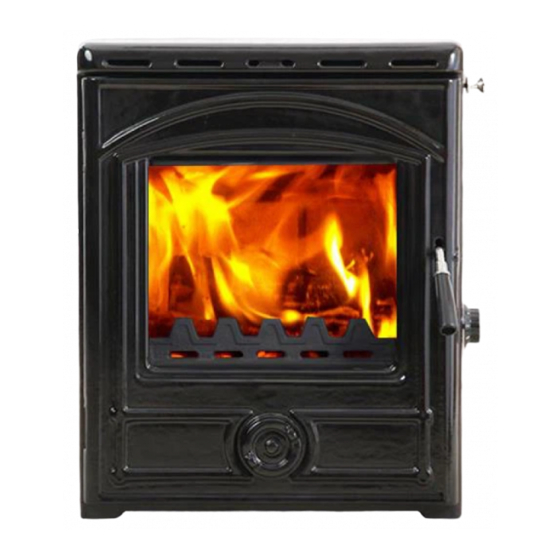

Model OL357i Gabriel Inset
®
Multi Fuel and Wood Burning
Non-Boiler Inset Stove
Please note This appliance has been independently
CE tested and approved for the burning of wood
and multi fuels and must, at all times, be used in
accordance with these instructions to ensure safe and
efficient operation.
You will need to refer to the serial number of your
stove should you ever need to make a claim under the
Olymberyl Warranty. You will find the serial number,
beginning with OL, on the CE plate at the rear of the
stove as well as on the lid of the outer packaging.
Write the date the stove was delivered to you below
as this is likely to differ from the purchase date.
-
-
www.hi-flame.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gabriel OL357i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Olymberyl Gabriel OL357i

Summary of Contents for Olymberyl Gabriel OL357i

  • Page 1 You will need to refer to the serial number of your stove should you ever need to make a claim under the Olymberyl Warranty. You will find the serial number, beginning with OL, on the CE plate at the rear of the stove as well as on the lid of the outer packaging.

  • Page 2: Table Of Contents

    Olymberyl Gabriel Inset stove. However, the principles illustrated here remain the same. Hi-Flame Fireplace (UK) Limited...

  • Page 3: Standard Features

    IMPORTANT TECHNICAL DATA In the interests of safety please read these instructions carefully before installing or General Specification operating your new stove. Even if you have Model Name Gabriel® Inset installed or operated stoves before manufacturer’s requirements can vary and can OL357i Model Number also change with updates to building...

  • Page 4: Important Safety Advice

    IMPORTANT SAFETY ADVICE INSTALLATION REGULATIONS • Ensure that an approved carbon monoxide detector You must ensure that your stove is installed by a (BS EN50291:2001) is fitted in the same room as the recognised competent person who is appropriately stove. It should be powered by a battery designed for qualified in the installation of stoves and that the the working life of the alarm.

  • Page 5: Packing List

    Under no B Stove Serial Number circumstances should the door be removed as this will invalidate your Olymberyl® Warranty. Stove Components C Handle Cover and Handle Cover Securing Bolt Always lift the stove to finally position it. Alterna- D Locking Bolt and Retaining Clamp for top fixing...

  • Page 6: Removing The Baffle Plate

    • Check List Study the Packing List on page 5 and • Handle Assembly Thread the split washer along make sure that you have received all of the the handle bolt. Feed the bolt and washer through the components listed before proceeding. Some handle grip.

  • Page 7: Smoke Control Areas

    Please note If you live in a UK Smoke Control Area residue inside the stove and flue system. you must only burn approved smokeless fuels. The following fuels are approved by Olymberyl® for use in For more information about wood fuel visit the DEFRA the OL357i inset stove: funded National Energy Foundation website Logpile at www.nef.org.uk/logpile.

  • Page 8: Prohibited Fuels

    Ireland. The most popular include Phurnacite, Taybrite, burns best on a bed of its own embers and the ashes Ancit and Homefire. shouldn’t need to be riddled. Again mineral fuels differ because they need combustion air from below Your local fuel merchant will be able to advise you on the grate therefore needs to be riddled to keep the air the best types of coals suitable for multi fuel stoves, passage clear.

  • Page 9: Burning Wood Logs

    BURNING WOOD LOGS not light well and will be slow to get started. Two handfuls of smaller pieces of kindling (equivalent to As previously stated wood burns best on a bed of its the weight of typical log) layered in a criss-cross or own embers which also forms a barrier that reflects ‘wig-wam’...

  • Page 10: Burning Mineral Fuels

    and moisture from the logs escapes and this can Secondary air until the fire is burning well and you can cause staining which the Airwash may find difficult to see bright yellow vigorous flames. remove. Once the fire is established, usually after about 5 Only reduce the Secondary air control when the wood minutes, close the Primary air and adjust the flame has ‘carbonised’...

  • Page 11: Overnight Burning

    REMOVING ASH the glass clean, therefore Secondary air (top control) can be reduced. The Primary air control should then Remember, you do not need to riddle wood ash be used to adjust the flame pattern. You may find during firing, but possibly only at the start when some that a combination of subtle adjustments to both air Primary air is needed to aid the initial combustion.

  • Page 12: Installation Check-List

    INSTALLATION CHECK-LIST • The chimney has been swept and tested prior to installation. This information is intended to outline the general • The proximity of all combustible materials to the principles of installing your inset stove. However, as intended stove installation conforms to the minimum each installation will vary and must comply with local, requirements outlined within this handbook as well national and European building regulations, which...

  • Page 13: Installation General Guidelines

    75mm thick and made of non-combustible brick or an approved flexible multi fuel flue liner. stone. Any gaps at the back and sides of the stove Olymberyl strongly recommend fitting a chimney liner and the fireplace aperture should be filled with non- for the following reasons: combustible insulation material such as rockwool or •...
  • Page 14 with vermiculite will deliver much needed insulation specification of any new cowl or terminal. Cowls have to keep flue gases as hot as possible which will help the additional advantage of limiting rain entering the minimise the amount of smoke produced. It will also flue system which could cause the inside of the stove improve the stove’s operation with greater control to rust when it is not being used, particularly during...

  • Page 15: Fitting Instructions

    FITTING INSTRUCTIONS The spigot can then be easily bolted into place from inside the stove once the stove’s baffle plate has been Fitting the flexible liner spigot plate temporarily removed. See diagram 1 below An outer flue spigot plate is provided to fit to the top of stove if you are using an approved flexible liner.
  • Page 16 Back-filling the chimney and lining should only be dropping it down and out of the way. undertaken when the stove is securely fixed in its final Push the locking screw through the hole in the centre position. front of the inset stove (see photo below). Please note Insulating at the sides and back of the stove that this bar may need to be reduced in length if you If you are not using a chimney lining then any gaps at...

  • Page 17: Commissioning

    Remove the stove and carefully drill the holes of the Instruction Manual using the appropriate drill bit and insert the screw 9 Complete the relevant parts of the Olymberyl plugs. Re-position the stove and insert and tighten Warranty Card with your Hetas / INFO or competent both screws.

  • Page 18: Trouble-Shooting

    If your stove has been installed correctly and you have invalidate your Olymberyl Warranty. Check the stove also operated it correctly and regularly carried out the and the flue system for signs of damage before you recommended routine checks then it is unlikely that re-use the stove.
  • Page 19 • Causes: Extreme weather conditions High winds which case a complete new rope seal should be or extremes of temperature can also temporarily fitted. affect the performance of the chimney draught and consequently its effectiveness in removing smoke and STOVE NOT PROVIDING ENOUGH HEAT fumes from the stove’s fire chamber.

  • Page 20: Standing Down

    Order genuine replacement components from your high temperature for a short period after a long slow authorised Olymberyl dealer. burn will usually burn off any sooty deposits. Glass can be cleaned easily if it is undertaken regularly and the deposits are not allowed to build up.
  • Page 21 Your new Olymberyl stove is supplied with a spare Airwash system and cause the glass to stain. Do not rope seal for the door. To replace, carefully remove...

  • Page 22: Olymberyl Warranty

    These include paint, firebricks, vermiculite panels, smoke deflection plates (baffle plates), gaskets, rope seals and glass. Olymberyl will repair or replace at its option any stove or stove part thereof found to be defective under Shaped Ash Pan these terms.

  • Page 23: Annual Service

    In the interests of safety it is important that your • Examine all paintwork for signs of wear and re-paint Olymberyl® stove is serviced on an annual basis in these areas using an appropriate heat-resistant black accordance with the instructions outlined below. This aerosol paint.
  • Page 24 County Down BT23 4TJ www.thestoveyard.com Booklet contents may not be copied in whole or in part without the prior written permission of the copyright holder. Olymberyl® and Gabriel® are the original trading and registered names of Hi-Flame Fireplace (UK) Limited www.hi-flame.com...
