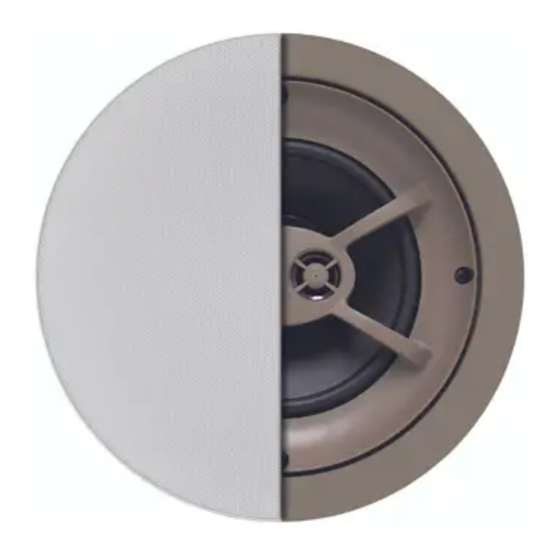

Proficient Protege CC625TT Owner's Manual

Single Stereo Ceiling Speakers
SPEAKER PLACEMENT
Before installing your Single Stereo Ceiling Speaker, you
should consider its placement carefully, taking into account
the location of electrical, plumbing and other fixtures. Contact
your Dealer for assistance if you are unsure of the best location
for your particular listening environment.
Placement In Ceiling: When placing your speaker into the
ceiling, it should ideally be located above the primary
listening area.
MOUNTING SURFACE PREPARATION
New Construction - Unfinished Ceilings
A Pre-Construction Bracket, available from your Dealer, may
be installed prior to drywall application across joists (up to
24" on-center) where a speaker will be located. After the hole
is cut and the drywall is installed, the speaker is then easily
installed following the instructions for mounting in "Finished
Ceilings" below. Note: If the speaker is to be mounted more than
24" on-center, a special "Extra Long Wing" is available from
your Dealer.
Finished Ceilings
Prior to the actual installation of the speaker, it will be neces-
sary to run cables to the speaker location. See your Dealer for
more information about cable installation. After the cable has
been properly installed, you are ready to mount the speaker.
Following the simple steps listed below will result in a profes-
sional looking installation:
1. Determine the best area to mount your speaker. This area
of the ceiling should be free of obstructions such as electri-
cal conduit, HVAC ducts, or water lines. This can best be
determined by noting the placement of fixtures and gaining
access to an attic or crawl space for further analysis of the
location of such obstacles.
2. Find the joists nearest the desired speaker mounting
location. We highly recommend using a good stud-finder
tool for this procedure. If you are lining up the speaker to
some other object or molding in the room, make sure you
consider the size of the baffle, which extends beyond the
mounting hole.
3. Mark the hole. A template for setting the hole is provided in
the box. Position the template in the desired position and
pencil an outline on the ceiling.
OWNER'S MANUAL
C825TT • C625TT
If the speaker is positioned far away from the primary
listening area, simply adjust the pivoting tweeters so they are
pointed towards it. Note: To avoid possible damage to the pivot-
ing tweeters, read the section entitled "SPEAKER ADJUSTMENTS"
in this manual prior to performing the tweeter adjustment.
In a very large room with high ceilings, it may be necessary to
place additional speakers throughout the room. Contact your
Proficient Audio Systems Dealer for assistance.
4. Cutting the hole. CAUTION: This is the most important part
5. Add insulation. If the area in the ceiling is not already
CAUTION: Speaker components can get hot while playing
music at moderate to high volume levels. There should be
nothing at all touching the speaker. Material in proximity to
the back of the speaker must have at a minimum 1" or 26mm
clearance for non-flammable materials and more for flam-
mable materials like plastic vapor barriers.
of the entire installation. If you are not certain whether any
obstructions exist behind the desired mounting area, you
should start by cutting a small hole in the center of your
penciled mounting hole with a drywall saw, cutting at a 45°
angle towards the inside of the hole. (See Diagram 1) Cutting
the small hole at this angle will make drywall repair much
easier, using the piece cut out. Once you have determined
that there aren't any obstructions in your desired mounting
location, start cutting the finished hole at a 90° angle to the
ceiling surface.
insulated, add an adequate amount of insulation material to
loosely cover the back of the speaker. If the insulation mate-
rial used is faced with foil or paper, position the foil or paper
away from the speaker.

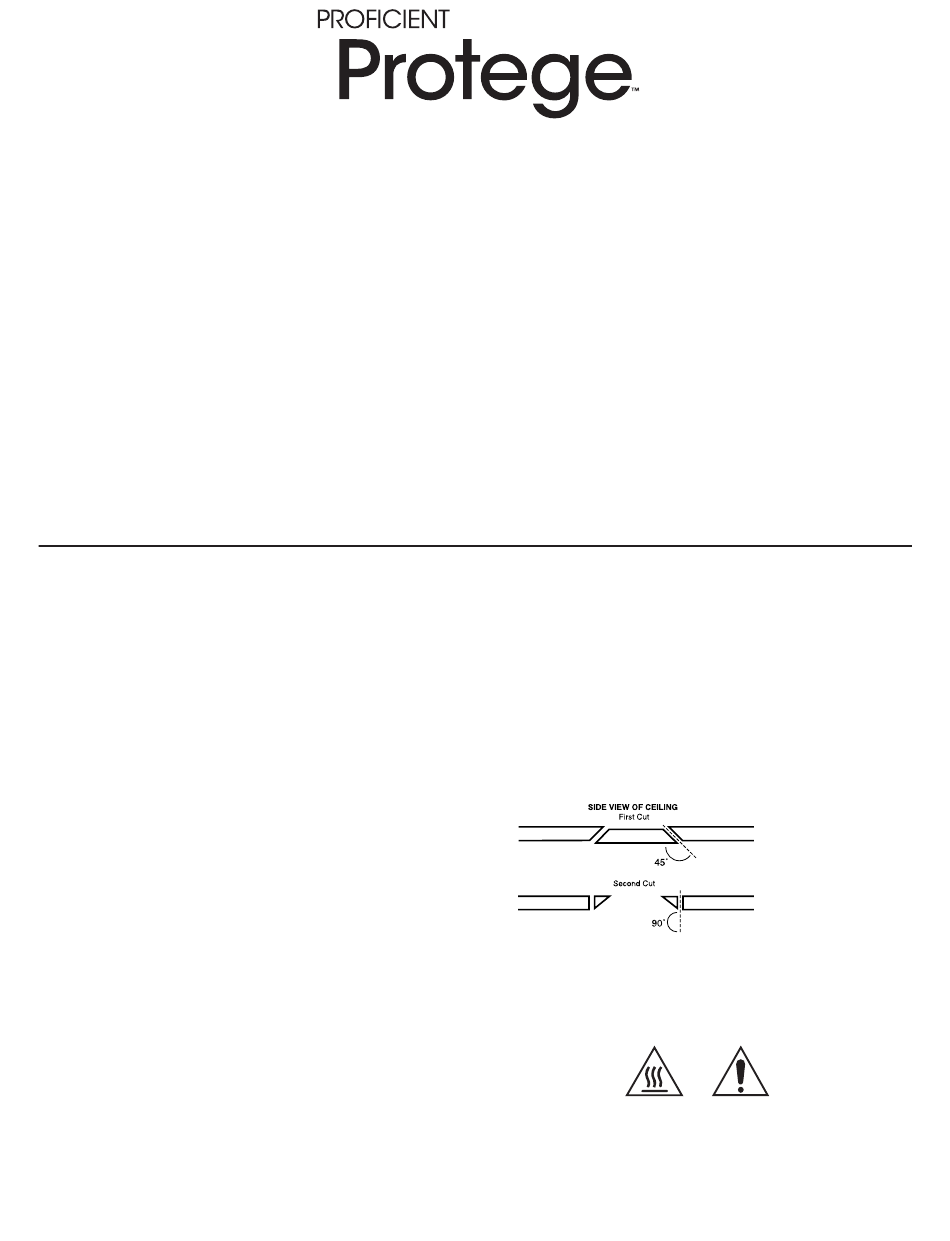

Diagram 1:
Ceiling Cut Out
