Dadant M59601 Assembly Instructions

ASSEMBLY INSTRUCTIONS FOR 10-FRAME HOBBY KIT #2 M59601
Note: Separate and identify parts before assembling. Nail sizes may vary due to availability.
Telescoping Cover
1 – Masonite 1/4" x 175/16" x 213/16"
2 – Side Rails 3/4" x 21/2" x 217/8"
2 – End Rails 3/4" x 21/2" x 181/8"
1 – Metal Cover Pan 1/2" x 181/4" x 22"
40 – 3/4" Nails
8 – 21/4" Nails
1. Assemble Side and End Rails first and secure
with two 21/4" nails in each corner.
2. Set Masonite Panel in Frame (smooth side
down) and secure with five 3/4" nails on each
side.
3. Place Metal Cover over Masonite and Rails
and secure with 3/4" nails on each side.

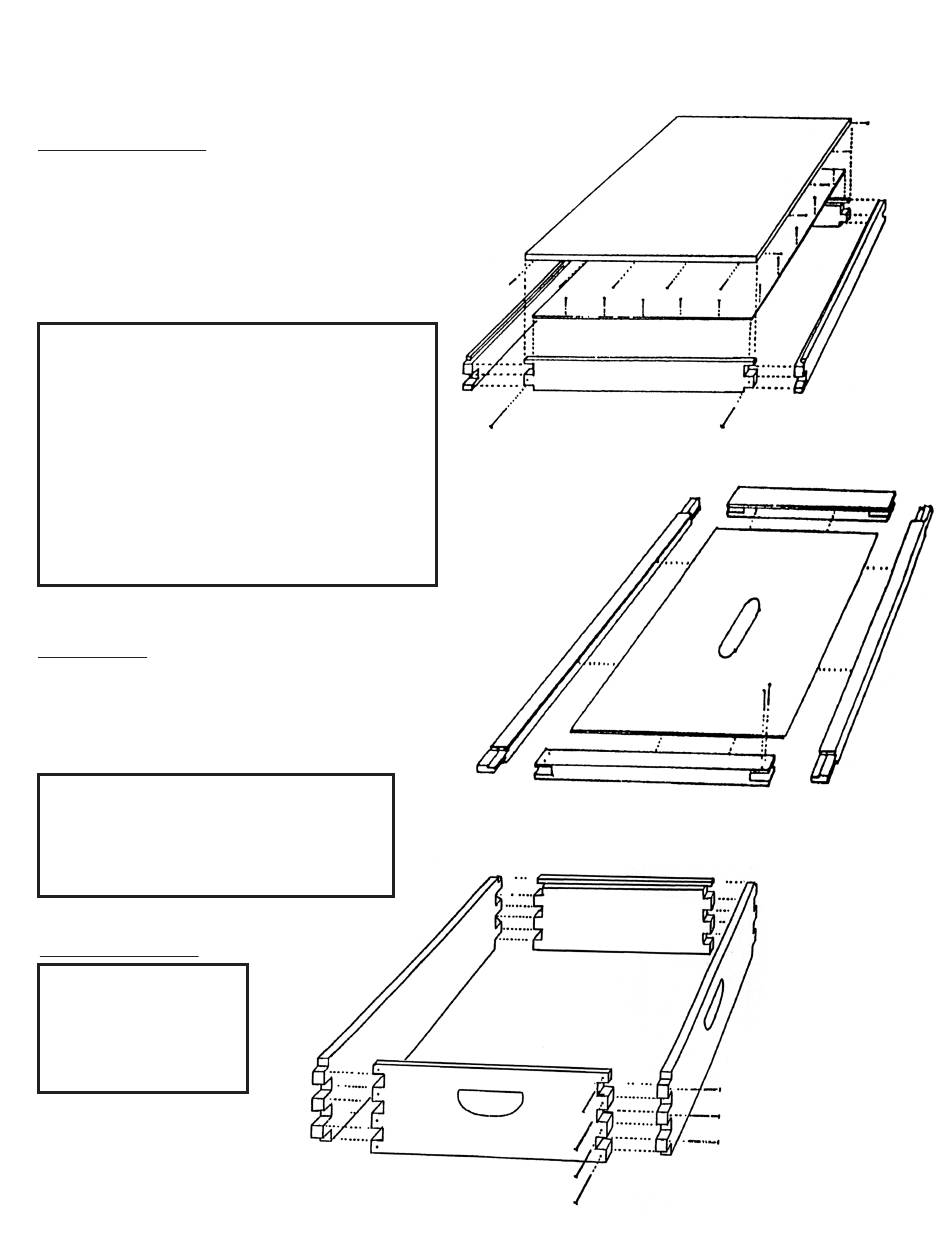

(See figure 1 for assembling Telescoping Cover)
Inner Cover
2 – End Cleats 3/4" x 11/4" x 161/4"
2 – Side Cleats 3/4" x 11/4" x 197/8"
1 – Masonite (with hole) 1/8" x 1411/16" x 185/16"
8 – 3/4" Nails
1. Assemble Cleats around Masonite Panel
2. Secure each corner using two 3/4" nails
(See figure 2 for assembling Inner Cover)
Super/Hive Body
Use One 4D nail and six
7D nails in each corner.
(See figure 3 for assem-
bling super/hive body)
Figure 3
Side
3/4" x 65/8" x 197/8"
3/4" x 65/8" x 161/4"
Side
Rail
End Rail
Figure 1
Side
Rail
Figure 2
3/4" x 65/8" x 161/4"
End
Metal Cover Pan
End Cleat
Masonite
End
Side
3/4" x 65/8" x 197/8"
Masonite
Side
Rail
Side
Rail
