Bluestream UEX50B-KIT Quick Reference Manual

Advertisement

Quick Links

Introduction

FEATURES:
• Extends USB up to a distance of 50m over a single CAT cable
• Supports USB 2.0 signal extension
• Backwards compatible with USB 1.1 devices
• Transmitted data bandwidth up to 480Mbps
• 1x USB-B on Receiver for connection to host device
• 4x USB-A hub on Transmitter for conncetion to devices
• USB-A ports 1-2 support 5V1A, USB-A ports 3-4 support 5V500mA
• Simple plug and play, no driver installation or setup required.
*Signal distribution length subject to length of device and host USB cables and CAT cable type
Contact:
support@blustream.com.au
UEX50B-KIT
Quick Reference Guide
Our UEX50B-KIT delivers USB 2.0 extension up to 50m over a single CAT cable
while allowing up to 4 USB devices to be connected to a single USB host. Supports
transmittion data bandwidth up to 480Mbps, backwards compatible with USB 1.1
devices.
|
support@blustream-us.com
UEX50B-KIT
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UEX50B-KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for Bluestream UEX50B-KIT

  • Page 1 Quick Reference Guide Introduction Our UEX50B-KIT delivers USB 2.0 extension up to 50m over a single CAT cable while allowing up to 4 USB devices to be connected to a single USB host. Supports transmittion data bandwidth up to 480Mbps, backwards compatible with USB 1.1 devices.
  • Page 2 / expected data rate transfer of the equipment in use. Exceeding distances, or using cabling not suitable for the data transfer, may stop the UEX50B-KIT from working properly. It is recommended to keep the USB cabling either side of the UEX50B-KIT to a minimum, using the range of the equipment to run the distance over the CAT cable infrastructure.

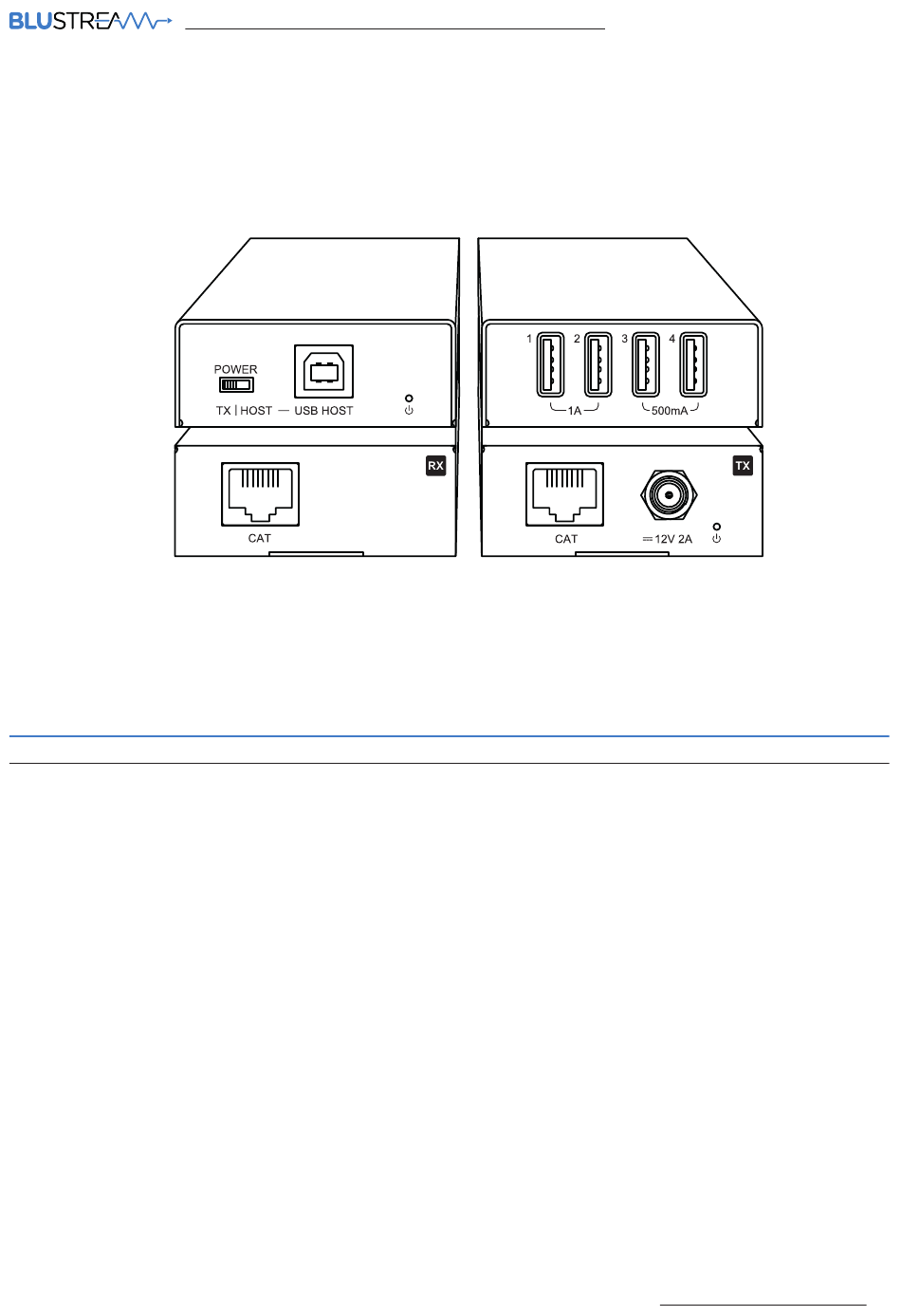

  • Page 3 UEX50B-KIT QUICK REFERENCE GUIDE Schematic Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
  • Page 4 UEX50B-KIT QUICK REFERENCE GUIDE Specifications UEX50B-TX UEX50B-RX • CAT Connectors: • CAT Connectors: 1 x RJ45 connector 1 x RJ45 connector • USB Port: • USB Port: 4 x USB Type-A 1 x USB Type-B • Casing Dimensions (W x D x H): •...
  • Page 5 UEX50B-KIT QUICK REFERENCE GUIDE Notes Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
  • Page 6 www.blustream-us.com www.blustream.com.au www.blustream.co.uk...
