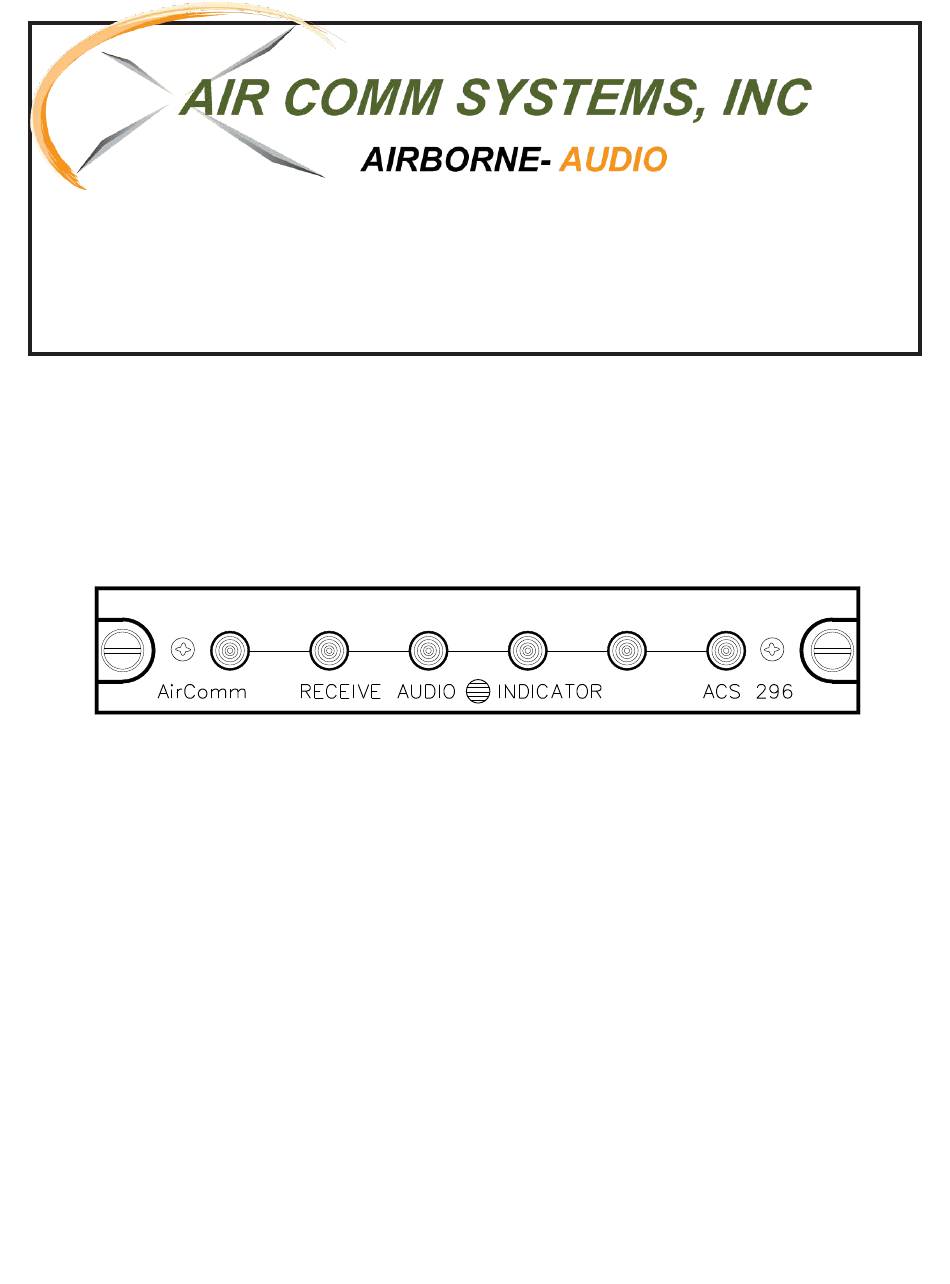

- Page 1 Receive Audio Indicator Panel Installation Manual Revision 1.7 ACS 296 VHF1 VHF2 VHF3 Air Comm Systems, Inc 37610 Sky Canyon Dr. Hangar 51 Murrieta, CA 92563 Ph: 951-677-0101 ~ Fx: 951-677-0701 Info@AirCommSystems.com ~ www.AirCommSystems.com...
- Page 2 ACS 296 Installation Manual Table of Contents Installation General Operating Specifications Page Physical Dimensions Page Interface Schematic Page Instructions for Continued Airworthiness Page Warranty Information Page Air Comm Systems Warranty Air Comm Systems, Inc. Page 2...
- Page 3 The active status is indicated by a glowing green LED. The intensity of the indicator is controlled by a photo sensor located on the front of the ACS 296; as the ambient light conditions change in the cockpit or cabin, so will the LED intensity.
- Page 4 VHF2 VHF3 The ACS 296 is designed to be Dzus mounted in close proximity to the Audio Mixer Panel it will interface with. The unit should be installed in the aircraft using the Installation kit that was included. The above outline drawing of the unit with dimensions will facilitate the installation.
- Page 5 Interface Schematic Connector Schematic The ACS 296 wiring harness should be constructed of Tefzel aircraft wire (M22759/34 grade). Power and ground wires should be 22 AWG. Shielded wires should be used where noted. Adequate protection against wear and chafing should be taken by using a braided cable sleeving or jacket. Before completing installation, verify that all cable connector pins are seated properly and that the connector is securely mounted to the unit mating connector.
- Page 6 The ACS 296 Receive Audio Indicator Panel is a compact, Dzus mounted unit that provides a visual status of which receive audios are active in the aircraft audio system. The ACS 296 is designed to be interfaced with a Single or Dual Channel Audio Mixer Panel and installed in close proximity to that panel for easy reference by the user.
- Page 7 Warranty Information Warranty Information Air Comm Systems, Inc. warrants each new product to be free from defective material and workmanship and agrees to remedy any defect or to furnish a new part in exchange for any defective unit provided an examination discloses such defect occurred under normal use and service, and provided the defective unit is delivered to us, with transportation charges prepaid, within 1 year from the date of acceptance of equipment by the owner.
