Summary of Contents for Blaze TURBO 6000watt Lithium scooter

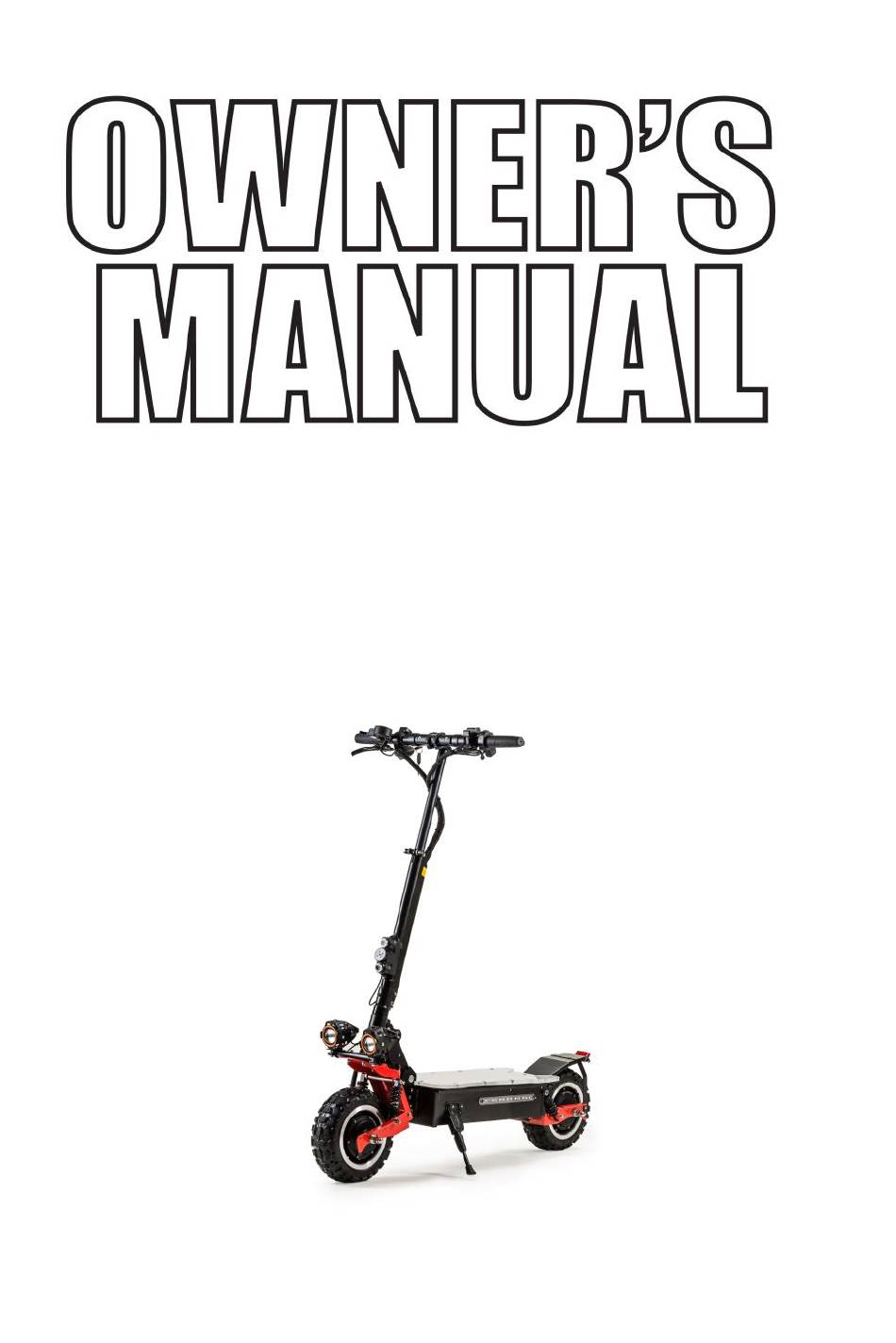

- Page 1 BLAZE TURBO 6000watt Lithium scooter Read Instructions Before Using Your New Electric Scooter...
-
Page 2: Inspection Before Riding
Users’ Manual INSPECTION BEFORE RIDING WARNING! Please make sure to inspect before riding: 1. Make sure the control panel can be turned 2. Make sure the brake levers working properly. 3. Make sure the front of the E-scooter is stable. 4. -
Page 3: Safety Precautions
Users’ Manual SAFETY PRECAUTIONS SAFETY PRECAUTIONS 1. Be sure to wear helmet, knee, and elbow pads before riding. 2. Please ride at low speed at the beginning; After your skilled use of an E-scooter, you can speed up gradually. 3. Please do not ride on a rainy day or ride into a puddle. - Page 4 Users’ Manual GET TO KNOW EACH PART ELECTRIC SCOOTER ILLUSTRATION Note Some accessories may need to purchase additionally. Version 2.0...
- Page 5 Users’ Manual CHECK ACCESSORIES AFTER UNPACKING MAKE SURE YOU HAVE RECEIVED ALL ACCESSORIES 1. Check if there is a Charger 2. Check if there is a Seat 3. Check if there is manual 4. Check if there is an Alarm Remote Controller Version 2.0...
- Page 6 Users’ Manual FOLDING OPERATION HANDLEBAR FOLDING OPERATION Step 1 Find the two folding Step 2 Pull the folding Sleeves on the handlebar Sleeve and fold down toward the Direction of the arrow Step3, repeat operation as Step 2 Version 2.0...
- Page 7 Users’ Manual FOLDING OPERATION POLE FOLDING Step 1 Pull down the safety Step 2 Hold the pole by Lock One hand; Press down the Red folding Lock by the other hand; Then fold the pole down UNFOLDING OPERATION tep 1 Push down the folding Step 2 Push back the Lock, and Push back the Pole Safety Lock...
- Page 8 Users’ Manual T-TUBE HEIGHT ADJUSTMENT T-TUBE HEIGHT ADJUSTMENT Step 1 Pull the fastening Step 2 Adjust the pole height Buckle and loosen it. To your required height. Step 3 Tighten the fastening Buckle, and turn it back Version 2.0...
- Page 9 Users’ Manual GET TO KNOW THE HANDLEBAR OF YOUR E-SCOOTER MULTIFUNCTIONAL DISPLAY LIGHT SWITCH TURNING LIGHT ECO/TURBO SINGLE/DUAL SWITCH/ HORN BUTTON BUTTON Top： from left to right Turning light gear speed Front light Bottom： from left to right battery motor throttle controller brake Press the green button will change gears from 1 to 3 Version 2.0...
- Page 10 Users’ Manual ECO & TURBO / SINGLE & DUAL ECO TURBO / SINGLE DUAL SWITCH 1. The red button ( ) is a Single and dual switch that is used for shifting Single motor driving and dual motor driving mode. 2.
-
Page 11: Recharging Operation
Users’ Manual RECHARGING OPERATION RECHARGING BATTERY 1. Open the cover of the charging port 2. Insert the DC plug of the power adapter into the charging port 3. Insert the AC plug of the power adapter into a wall socket. NOTE 1. -
Page 12: Troubleshootings
Users’ Manual TROUBLE SHOOTINGS COMMON FAULTS AND SOLUTIONS Cannot start E-scooter 1: Confirm if the battery is out of electricity 2: Open the foot pedal and check if the battery fuse is disconnected or burned. 3: Open the foot pedal to check if the connection between the accelerator main line and the controller loosened or not. - Page 13 Users’ Manual E-SCOOTER MAINTENANCE E-SCOOTER MAINTENANCE 1. Please charge your e-scooter after your receipt of it and recharge it after your riding every time. 2. Please check battery status regularly and recharge it in time if you do not ride it for a long time.
-
Page 14: Warranty / Guarantee
Users’ Manual WARRANTY GUARANTEE WARRANTY GUARANTEE We have a warranty and provide after-sale services to our customers. If the E-scooter has any quality issues, please feel free to contact us. We will offer professional instructions and solutions to you timely. We offer 365 days warranty for the following parts MOTOR, ACCELERATOR, CHARGER, CONTROLLER, BATTERY, AND SCOOTER BODY... - Page 15 Users’ Manual BLAZE TURBO 6000watt Lithium scooter Model NO frame Aluminum and High Tensile Steel Frame motor 60V 3000W Motor Front and Rear controller 60V 3000W *2 battery 60V 25AH lithium battery charger 60V 2A AC110-230V DC60V charger time Up to 7 hours...
