Summary of Contents for comfortel 8040

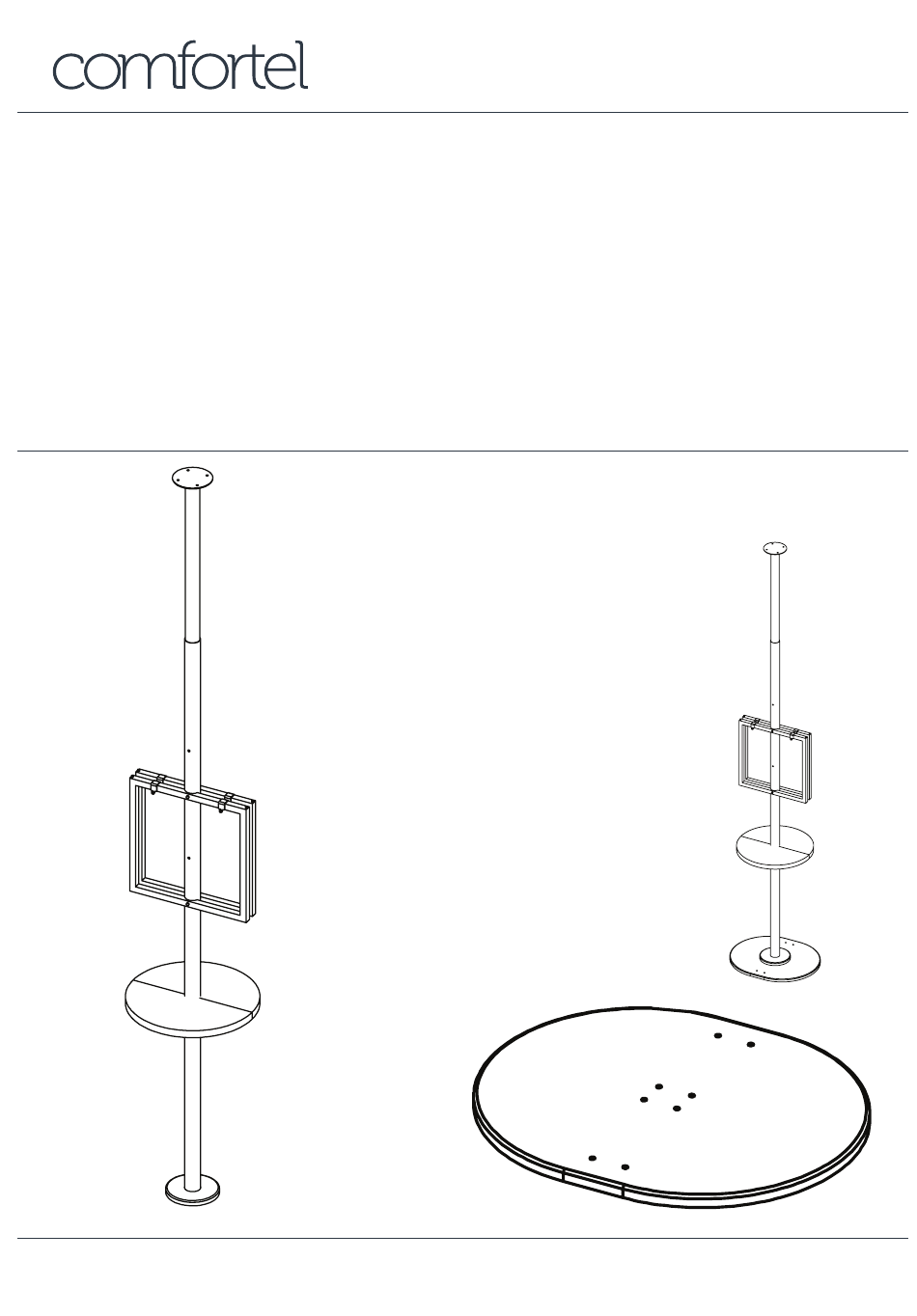

- Page 1 #8040 SALON MIRROR JOINER POLE #8041 BASE PLATE help.comfortel.com.au...
- Page 2 IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS GENERAL SAFETY IMPORTANT 1. Read carefully and keep these instructions in a safe place. PLEASE REFER TO MIRROR USER 2. Use this product only for its intended function and GUIDE WHEN INSTALLING TO WEIGHT do not use attachments not recommended by the DETERMINE BEST PRACTICE manufacturer.
- Page 3 GET STARTED: INSIDE THE BOX #8040 SALON MIRROR JOINER POLE M8X80MM M8X75MM M6X10MM M8 NUT M6 NUT 4PCS 2PCS 4PCS 6PCS 4PCS MOUNTING ATTACHMENT OPTIONS REFER TO SALON MIRROR TO DETERMINE WHICH MOUNTING POSITION & ATTACHMENT IS REQUIRED FOR INSTALLATION OF MIRROR.
- Page 4 GET STARTED: UNDERSTANDING MOUNTING POSITIONS MOUNTING POSITIONS BEFORE ASSEMBLY, REFER TO 'SALON MIRROR MOUNTING POSITIONS' WITHIN THIS DOCUMENT TO DETERMINE WHICH MOUNTING POSITION & ATTACHMENT IS REQUIRED FOR INSTALLATION OF MIRRORS. MOUNT POSITION 1 MOUNT POSITION 1 MOUNT POSITION 2 MOUNT POSITION 2...
- Page 5 GET STARTED: POWER TO LED MIRRORS TO CONNECT POWER TO LED MIRRORS, POWER CAN RUN FROM THE CEILING, DOWN THE POLE TO CABLE HOLE TO POWER LED MIRRORS POWER ACCESS FROM CEILING THROUGH POLE EXTENTION / MAIN POLE (MUST BE DONE BY ELECTRICIAN) CABLE HOLE RUN POWER TO HERE TO CONNECT TO LED MIRRORS...
- Page 6 ASSEMBLY: MIRROR JOINER POLE IT MUST BE BOLTED TO THE GROUND WHEN USING IT AS A POLE ONLY PART POLE BASE POLE STEP 1 SLIDE BASE COVER OVER BASE POLE MOUNT TO CEILING (BOLTS NOT INCLUDED) MOUNT TO FLOOR (BOLTS NOT INCLUDED)
- Page 7 ASSEMBLY: BASE PLATE OPTION PART POLE BASE POLE STEP 1 SLIDE BASE COVER OVER BASE POLE PART BASE PLATE MOUNT TO CEILING (BOLTS NOT INCLUDED) BASE PLATE...
- Page 8 ASSEMBLY: FOOTRESTS OPTION INCLUDED WITH BASE PLATE M8X20MM 4PCS FINAL...
- Page 9 MOUNTING POSITION: CIRCA, NERO & ARCH LED USE MOUNT POSITION 2 MOUNT POSITION 1 ATTACHMENTS REQUIRED: MIRROR ROUND BENCH MOUNTING RIG 2PCS 2PCS HOOK 4PCS...
- Page 10 MOUNTING POSITION: OVAL LED & ONYX USE MOUNT POSITION 1 MOUNT POSITION 2 ATTACHMENTS REQUIRED: MIRROR ROUND BENCH MOUNTING RIG 2PCS 2PCS HOOK 4PCS...
- Page 11 MOUNTING POSITION: VILLA & VILLA TRIM USE MOUNT POSITION 1 MOUNT POSITION 2 ATTACHMENTS REQUIRED: MIRROR HOOK MOUNTING RIG 4PCS 2PCS...
- Page 12 MOUNTING POSITION: HALO MOUNT POSITION 2 MOUNT POSITION 1 HALO MOUNTING HALO MOUNTING RIG SIDE 2 ATTACHMENTS REQUIRED: HALO ROUND BENCH MOUNTING RIG 2PCS 2PCS HOOK 4PCS...
- Page 13 MOUNTING POSITION: SINGLE SIDE REFER TO MIRROR FOR MOUNTING POSITION CABLE HOLE BENCH BRACKET ATTACHMENTS REQUIRED: MIRROR ROUND BENCH BENCH BRACKET MOUNTING RIG 2PCS HOOK 2PCS...
-
Page 14: Maintenance
Comfortel Furniture Pty Ltd. #8040 SALON MIRROR POLE JOINER Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in #8041 SALON MIRROR POLE JOINER this document nor does it make expressed or implied warranty of any kind with regard...
