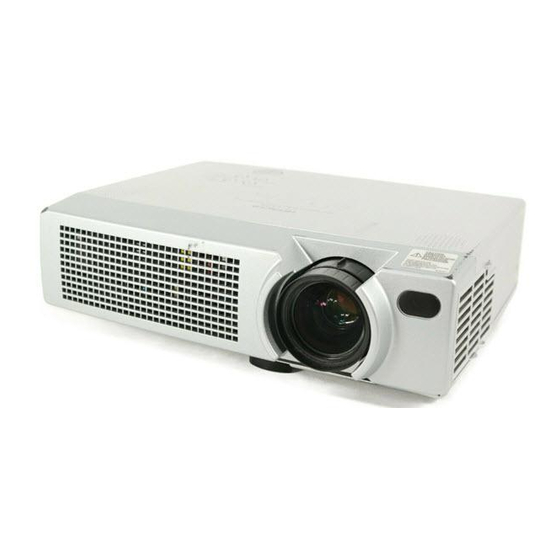

Liquid Crystal Projector
CP-S370W
USER'S MANUAL
Please read this user's manual thoroughly to ensure correct usage through understanding.
BEDIENUNGSANLEITUNG
Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung
aufmerksam.
MANUEL D'UTILISATION
Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le
fonctionnement de l'appareil.
MANUALE D'ISTRUZIONI
Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter
comprendere quanto riportato ai fini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO
Lea cuidadosamente este manual del usuario para poder utilizar corretamente el
producto.
GEBRUIKSAANWIJIZING
Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te
hebben van de uitgebreide mogelijkheden.
BRUKERHÅNDBOK
Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.
INSTRUÇÕES DO PROPRIETÁRIO
Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do
usuário.
TECHNICAL
REGULATORY NOTICES
Advertisement
Table of Contents
Related Manuals for Hitachi CP-S370W
Summary of Contents for Hitachi CP-S370W
-
Page 1: Regulatory Notices
Liquid Crystal Projector CP-S370W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil. - Page 2 Hitachi Sales Iberica S A Gran Via Carlos 111, 101, 1-1, 08028 Barcelona, Spain Tel: +34-3-330-8652 Fax: +34-3-339-7839 Hitachi Home Electronics Asia, (S) Pte Ltd. 16 Collyer Quay #20-00 Hitachi Tower Singapore 049318, Singapore Tel: +65-536-2520 Fax: +65-536-2521 Hitachi Sales (Malaysia) Sdn. Bhd.
-
Page 3: Table Of Contents
BEFORE USE ...2 Contents of Package ...2 Part Names...3 Loading the Battery ...5 Fixing the Handle...5 INSTALLATION ...6 Installation of the Projector and Screen...6 Angle Adjustment ...6 Cabling ...7 Power Connection ...8 Example of System Setup ...8 Plug & Play ...8 OPERATIONS ...9... -
Page 4: Features
BEFORE USE BEFORE USE Contents of Package • NOTE Projector Liquid Crystal Projector CP-S370W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil. -
Page 5: Part Names
Speaker Handle Hook Power Switch AC Inlet (to the Power Cord) Ventilation Openings (Intake) FRONT/LEFT VIEW OF THE PROJECTOR Control Panel STANDBY/ON Button KEYSTONE Button Foot Adjuster Button Filter Cover Air Filter and Intake for the Cooling Fan Rear Foot Adjuster... - Page 6 Part Names (continued) STANDBY/ON Button KEYSTONE Button Button Used to operate the mouse shift function . MENU Button MAGNIFY Button MAGNIFY Button MAGNIFY Button AUTO Button Battery Holder NOTE ENGLISH-4 VIDEO STANDBY/ON KEYSTONE MENU SELECT MENU RESET POSITION MAGNIFY FREEZE VOLUME MUTE AUTO...
-
Page 7: Loading The Battery
CAUTION • Make sure the handle is fixed before carrying the projector with the handle. If the projector should be dropped from the handle should be off, it could result in an injury, and continued use could result in fire or electrical shock. -
Page 8: Installation
• Please basically use liquid crystal projector at the horizontal position. If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and become the cause of damage. Be especially careful not to install it with ventilation holes blocked. -
Page 9: Cabling
• Before connecting, turn off to all devices to be connected, except for the USB cable. • The cables may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified. -
Page 10: Power Connection
Power Connection CAUTION • Be carful in handling the power cord according to instructions of the accompanying manual "SAFETY INSTRUCTIONS" and this manual. • Connect the power cord firmly. Avoid using a loose, unsound outlet or contact failure. Example of system setup DVD Player S-Video Tape Recorder... -
Page 11: Operations
OPERATIONS OPERATIONS STANDBY/ON Button POWER Indicator Power Switch Power ON Power OFF WARNING • Please read this manual, and the separate “SAFETY INSTRUCTIONS” thoroughly before using the equipment. Always ensure that the equipment is used safely. NOTE STANDBY/ STANDBY/ON ON Button KEYSTONE MAGNIFY Zoom Knob... -
Page 12: Basic Operation
Basic Operation Table 3 . Basic Operation Item Select Input Signal ( RGB IN 1→RGB IN 2→ VIDEO IN → S-VIDEO IN → COMPONENT VIDEO (→ RGB IN 1) Select RGB Input : Press the RGB button. VIDEO IN / S-VIDEO IN / COMPONENT VIDEO → RGB IN 1 / RGB IN 2 RGB IN 1 →... - Page 13 Table 3. Basic Operation (continued) Item VOLUME Volume Adjustment : Press the VOLUME Set/Clear Mute Mode : Press the MUTE button. No sound is heard in the MUTE MUTE mode. Automatic Adjustment at RGB Input : Press the AUTO button. Horizontal position(H.POSIT), vertical position (V.POSIT),clock phase (H.PHASE), and horizontal size(H.SIZE) are automatically adjusted.
-
Page 14: Setup Menu
Setup Menu SETUP INPUT IMAGE OPT. BRIGHT CONTRAST V POSIT H POSIT H PHASE H SIZE COLOR BAL R COLOR BAL B ASPECT Table 4. Setup Menu Item ↔ Dark BRIGHT ↔ CONTRAST Weak ↔ V POSIT Down ↔ H POSIT Left ↔... -
Page 15: Input Menu
Input Menu Table 5. Input Menu Item Automatic Adjustment at RGB Input: Select the EXECUTE with the button. Horizontal position (H.POSIT), vertical position (V.POSIT), clock phase (H.PHASE), and horizontal size (H.SIZE) are automatically adjusted. Use with the window at maximum size in the application display. Automatic Adjustment at Video Input: Select the EXECUTE with the AUTO button. -
Page 16: Image Menu
Image Menu Table 6. Image Menu Item Select Blank Screen Color: Select color with the BLANK • The image is cleared and the entire screen is displayed in the selected color, when BLANK mode is set with BLANK ON, or when there is no signal for 5 minutes. MIRROR Select Mirror Status: Select mirror status with Setup Initial Screen Display: Select TURN ON with the... -
Page 17: Options Menu
Options Menu Table 7. Options Menu Item VOLUME Reduce MENU COLOR Select Menu Background Color: Select with the LANGUAGE Select Menu Display Language: Select with the Set AUTO OFF: Set 1~99 minutes with the automatically enters the standby mode when a signal is not received for the set time. -
Page 18: No Signal Menu
No Signal Menu Table 8. No Signal Menu Item Reduce • When this function is used, audio input is automatically switched to video. The VOLUME audio input can be switched by moving the DISK PAD left and right during the display of the volume adjustment bar. -
Page 19: Maintenance
• Do not use the projector with the lamp cover removed. Lamp Life • NOTE... - Page 20 Replacing the Lamp CAUTION • Ensure that screws are tightened properly. Screws not tightened fully may result in injury or accidents. • Do not use the projector with the lamp cover removed. Resetting the Lamp Timer • NOTE ENGLISH-18 ENGLISH-18...
-
Page 21: Air Filter
• Do not use the equipment with the air filter removed. • When the air filter is clogged with dust etc. the power supply is switched OFF automatically to prevent the temperature rising inside the projector. Other Maintenance Maintenance Inside the Equipment... -
Page 22: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING OSD Message Table 9. OSD Messages Message CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIME. CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIME. THE POWER WILL TURN OFF AFTER CHANGE THE LAMP AFTER REPLACING LAMP, RESET THE LAMP TIME. -
Page 23: Indicators Message
Indicators Message Table 10. Indicators Message POWER LAMP TEMP indicator indicator indicator Lights Turns off Turns off orange Blinks Turns off Turns off green Lights Turns off Turns off green Blinks Turns off Turns off orange Blinks red Blinks Lights Turns off /Lights red Blinks... -
Page 24: Symptom
ENGLISH-22 ENGLISH-22 Possible cause Turn on the main power switch. Plug the power cord into an AC power outlet. Use the projector or remote control transmitter to set. Connect correctly. Connect correctly. Press VOLUME control or display the menu screen and adjust the volume. -
Page 25: Specifications
CONTROL Control functions Optional Parts • NOTE Specification Liquid crystal projector 2.3 cm (0.9 type) TFT active matrix 480,000 pixels (800 horizontal x 600 vertical) Zoom lens F=1.7 ~ 2.1 f=36.8 ~ 47.8 mm 200 W UHB 1.0W+1.0W (stereo) AC100 ~ 120V, 3.3A / AC220 ~ 240V, 1.4A 310W 0 ~ 35°C (Operating) -
Page 26: Warranty And After-Service
WARRANTY AND AFTER-SERVICE WARRANTY AND AFTER-SERVICE ENGLISH-24 ENGLISH-24... -
Page 27: Dimension Diagram
TECHNICAL TECHNICAL Dimension Diagram Signal Connector Pin Assignment 1. D-sub 15-pin Shrink Connector (RGB IN 1/RGB IN 2/RGB OUT) Pin No Signal Video input Red Video input Green Video input Blue Ground Ground Red Ground Green Ground Blue 2. Mini Din 4-pin Connector (S-VIDEO) Pin No Color:0.286Vp-p (NTSC, burst signal),75Ω... -
Page 28: Example Of Computer Signal
Example of computer signal Resolution fH (kHz) H × × V 640 × 350 37.9 640 × 400 37.9 720 × 400 37.9 640 × 480 31.5 640 × 480 35.0 640 × 480 37.9 640 × 480 37.5 640 × 480 43.3 800 ×... - Page 29 Initial set signals Back porch b Display interval c Sync a Computer / Horizontal signal timing (µs) Signal VGA-1 (85Hz) VGA-2 (85Hz) TEXT VGA (60Hz) Mac 13"mode VGA (72Hz) VGA (75Hz) VGA (85Hz) SVGA (56Hz) SVGA (60Hz) SVGA (72Hz) SVGA (75Hz) SVGA (85Hz) Mac 16"mode XGA (60Hz)
- Page 30 Connection to the Mouse Control 1. PS/2, ADB or Serial Mouse 2. USB Mouse NOTE PS/2 Mouse CONTROL Terminal D-sub 15-pin shrink jack TECHNICAL - 4 Projector DATA SEL0 Computer DATA Mouse jack Mini DIN 6-pin...
- Page 31 ADB Mouse CONTROL Terminal D-sub 15-pin shrink jack Serial Mouse CONTROL Terminal D-sub 15-pin shrink jack USB Mouse USB jack Projector (B type) — DATA DATA Projector Computer DATA Projector SEL0 Computer USB cable ( POWER ON ) Mouse jack...
- Page 32 Type high high Action (byte_0 - 1) Change setting to desired value. Read projector internal setup value. Increment setup value by 1. Decrement setup value by 1. Run a command. Computer RS-232C jack D-sub 9-pin byte_4 byte_5...
- Page 33 Using the projector default settings (Reset Command) Increasing the projector setting value (Increment command) Decreasing the projector setting value (Decrement command) When a command sent by the projector cannot be understood by the computer When data sent by the projector cannot be practice •...
-
Page 34: Command Data Chart
Names Operation type Orange Green Blue Blank Color Purple White Black Normal H Inverse Mirror V lnverse H&V Inverse Normal Freeze Freeze Orange Green Blue Menu Color Purple Transparent Gray Turn ON Startup Turn OFF English Français Deutsch Español Italiano Language Norsk Nederlands... - Page 35 Names Operation type Magnify Increment Decrement Auto off Increment Decrement Brightness Reset Execute Contrast Reset Execute V.Position Reset Execute H.Position Reset Execute H.Size Reset Execute Color Balance R Reset Execute Color Balance B Reset Execute Sharpness Reset Execute Color Reset Execute Tint Reset Execute...
- Page 36 Names Operation type Normal Mute Mute Brightness Increment Decrement Contrast Increment Decrement Color Increment Balance R Decrement Color Increment Balance B Decrement Keystone_V Increment Decrement 4:3, Full 16:9 Aspect Small Default Display Bottom Position at 16 : 9 or Small V.Position Increment Decrement...
- Page 37 Names Operation type Sharpness Increment Decrement Color Increment Decrement Tint Increment Decrement Auto NTSC SECAM Video Format NTSC 4.43 M-PAL N-PAL 1080i 1035i HDTV Command data chart Header BE EF 06 00 BE EF 06 00 BE EF 06 00 BE EF 06 00 BE EF...
- Page 38 Names Operation type Sync on G NORMAL WHISPER WHISPER NORMAL CINEMA GAMMA DYNAMIC NORMAL COLOR TEMP TECHNICAL - 12 Command data chart Header BE EF 06 00 BE EF 06 00 BE EF 06 00 BE EF 06 00 BE EF 06 00 BE EF 06 00...
- Page 39 FCC (Federal Communication Commission) equipment provided that the following conditions are met. The cables may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the...
