Toll Free: 855-664-2752

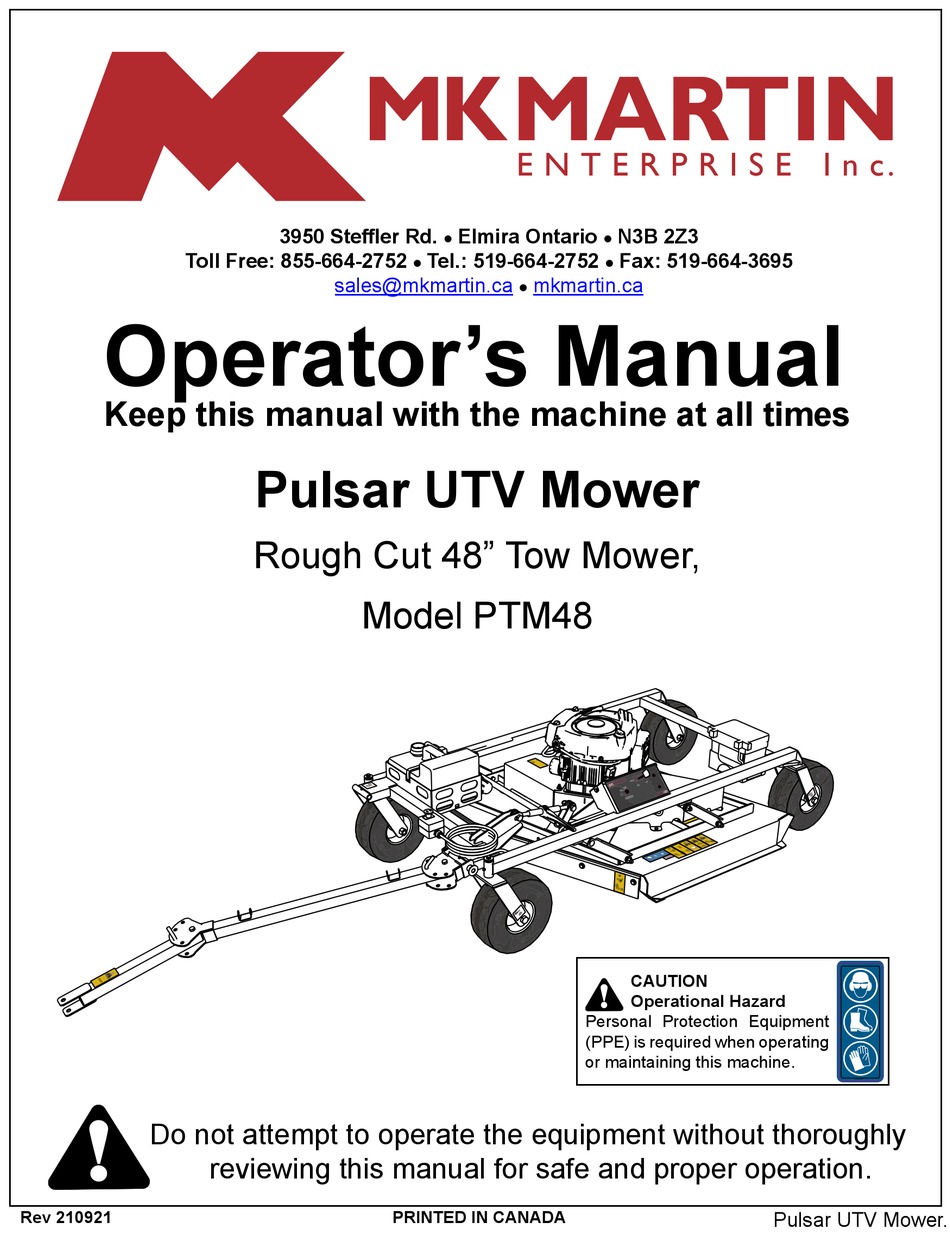

Operator's Manual
Keep this manual with the machine at all times
!
Do not attempt to operate the equipment without thoroughly
Rev 210921
3950 Steffler Rd.
sales@mkmartin.ca
Pulsar UTV Mower
Rough Cut 48" Tow Mower,
Model PTM48
reviewing this manual for safe and proper operation.
Elmira Ontario
l
Tel.: 519-664-2752
l
mkmartin.ca
l
PRINTED IN CANADA
N3B 2Z3
l
Fax: 519-664-3695
l
CAUTION
!
Operational Hazard
Personal Protection Equipment
(PPE) is required when operating
or maintaining this machine.
SNL00001
Pulsar UTV Mower.0705
Advertisement
Table of Contents
Related Manuals for MK Martin Pulsar PTM48
Summary of Contents for MK Martin Pulsar PTM48
- Page 1 3950 Steffler Rd. Elmira Ontario N3B 2Z3 Toll Free: 855-664-2752 Tel.: 519-664-2752 Fax: 519-664-3695 sales@mkmartin.ca mkmartin.ca Operator’s Manual Keep this manual with the machine at all times Pulsar UTV Mower Rough Cut 48” Tow Mower, Model PTM48 CAUTION Operational Hazard Personal Protection Equipment (PPE) is required when operating or maintaining this machine.
-
Page 2: Table Of Contents
Table of Contents Warranty ......4 Mower Operation ..... 19 Safe Practices . - Page 3 Notes...
-
Page 4: Warranty
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on file at MK Martin Enterprise Inc. Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc. -
Page 5: Introduction
If anyone does not fully understand every part of this manual, please obtain further assistance by contacting the dealer from which this product was purchased or by contacting MK Martin with the information listed on the cover of this manual. -
Page 6: Safety
Safety This Safety Alert Symbol means: ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! The Safety Alert symbol identifies important safety messages on the implement and in the manual. When you see this symbol, read and understand the message, be alert to the potential hazard in the message. -
Page 7: Accident Prevention
Do not risk injury or death by ignoring good safety practices. The best accident prevention is a careful operator. MK Martin and your dealer ask that be that careful, responsible equipment operator. ARE THE KEY TO SAFETY: •... - Page 8 Safety Guidelines Safety of the operator and bystanders is one of the chief concerns in developing and designing equipment. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more cautious approach to handling equipment.
-
Page 9: Safe Work Area
Safe Work Area Operation Safety 1. NEVER allow helpers or bystanders under or near the Not all work spaces are the same, but the principles machine. presented here can be applied to any work space. Survey the work site, remove debris and make note of 2. -
Page 10: Battery Safety
Battery Safety Maintenance Safety 1. Charge the battery at the proper rate. Trickle 1. Good maintenance is your responsibility, follow the charger is recommended. Overcharging could create maintenance schedule. Poor maintenance is an excessive gassing. invitation to trouble. 2. Provide adequate air circulation when charging 2. -
Page 11: Gas Motor Safety
Gas Motor Safety Before starting engine, read and understand the operating and maintenance instructions that came with your engine. 1. DO NOT run engine in an enclosed area. Exhaust 9. DO NOT choke carburettor to stop engine. Whenever gases contain carbon monoxide, an odourless and possible, gradually reduce engine speed before deadly poison. -
Page 12: Safety Labels
Safety Labels Safety labeling is an important part of the overall safe use of the implement. Safety labeling alerts and warns against potential injury or death, and is important to follow these points to help keep your implement safe for you and others who may be using it. -
Page 13: Safety Label Layout
MK0002 SL00036 SL00035 SL00037 SL00033 SL00037H SL00033H Left View SL00036 SNL00001H SL00036 SL00035 SL00037 If safety labels have been damaged or removed, new SL00036 labels must be applied. New safety signs are available from your dealer or contact MK Martin... -
Page 14: Specifications And Dimensions
Specifications and Dimensions Model PTM48 Engine Brand Briggs & Stratton with solenoid fuel shutoff Specifications Engine Power 19 Horse Power Starting System Electric key start Fuel Tank 11.35 litre (3 US gallon) capacity with fuel gauge Battery 12 Volt, 340 CCA, vented lead acid Deck Rear discharge Deck Thickness... -
Page 15: Assembly & Inspection
Notify your dealer immediately to have affected parts replaced or repaired. The MK Martin UTV Mower is shipped from the factory without the tongue attached to the mower frame and the negative terminal disconnected from the battery. -
Page 16: Components And Features
Components and Features The Pulsar UTV mower is designed for rough cut creating and maintaining trails, and managing your open fields. The owner or operator has the responsibility of being familiar with all the features of the mower and know how to operate them. -
Page 17: Product Features
Product Features Throttle / Choke This lever controls the engine speed and choke. Push the lever to the left to increase engine speed and right to Throttle decrease. For starting push the lever all the way to the left to engage the choke, then reposition to the desired speed. Ignition Switch This key-operated switch controls the electric power to the engine. -
Page 18: Mowing Height Adjustment System
Mowing Height Adjustment System The ratchet style adjuster provides easy adjustment of the cutting height between 5 cm to 18 cm (2” to 7”). Raise mower deck: Move the ratchet pawl to the correct position, ratchet the handle towards the side of the mower frame to the desired height. -
Page 19: Mower Operation
Mower Operation This section describes how to safely and effectively operate the UTV Mower in the field of operation. By following recommended procedures, a safe working environment is provided for the operator, bystanders and the area around the work site. Not all situations and conditions can be addressed, proceed with care & caution and use safety as your guide. The owner or operator has the responsibility of being familiar with the operation of the mower and must train all other operators before they start working with the machine. -
Page 20: Preparation For Mowing
Preparation for Mowing For worker safety a preseason site visit is recommended. Make a work plan to identify hidden obstacles and structures. Sudden impact from obstacles hidden under the grass may cause injury. Make the following inspections with mower attached to a UTV, gearshift set in park, and engine off and key pocketed: Inspect the mower: •... -
Page 21: Start The Mower
Start the Mower For complete engine starting procedure, please see the engine owners manual. The following describes the steps required on the MK Martin UTV Mower. • Check engine oil level. DANGER • Check fuel level. Amputation Hazard • Depress the e-stop button to disengage the blades (engine will not... -
Page 22: Mower Storage
Mower Storage After the season’s use or when the machine will not be used for a period of time, completely inspect all parts of the mower. Replace or repair any worn or damaged components to prevent any unnecessary down time at the beginning of the next season. -
Page 23: Service & Maintenance
Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. To keep your MK Martin Pulsar UTV Mower in good working condition, and increase product life as well as maintain ease of operation, periodic lubrication is essential. This also helps to flush out moisture and dirt. -
Page 24: General Mower Lubrication
General Mower Lubrication: Inspect mower components monthly. Unusual play or noise could be an indication of worn parts. Parts replacement should be performed by qualified personnel. Grease: Lubricate: Inspect bushing and components before each use. Inspect mower components before each use. Unusual Unusual play or noise could be an indication of worn play or noise could be an indication of worn parts. -
Page 25: Drive Belt
Drive Belt #36855 B76 V Belt - 21/32’’ Width X 79’’ Length It is important to periodically check belt tension and condition. Frayed, cracked or worn drive belts should be replaced immediately. The clutch on the engine shaft features an internal brake. When engaged, it brakes the engine pulley to stop the belt dive and blade pulleys. -
Page 26: Blade Maintenance
Mower knives are extremely sharp. Use appropriate personal protective equipment when handling and servicing blades. Failure to do so could result in serious injury. Replacement parts are available from your dealer or MK Martin. Note: swing knives are reversible and can be resharpened. -
Page 27: Engine
Engine Refer to the engine manufacturer’s manual for maintenance and service information. Battery Before beginning any work with the battery, ensure the ignition key is removed and pocketed. Read section on battery safety for safe handling of the battery. Always recycle batteries in accordance with local laws and regulations. Contact your local solid waste collection site or recycling facility to obtain information on local recycling processes. -
Page 28: Trouble Shooting
Trouble Shooting Engine: Refer to the engine manufacturer’s manual for maintenance and service information. Issue Cause Solution Tighten knife disk mounting bolt: torque to 150 lb-ft 15/16” Knife disc is loose socket. Knives are not cutting, or One or more swing knives are loose Retighten swing knife mounting hardware: torque to 50 lb-ft are loose One or more swing knives are dull... -
Page 29: Bolt Torque Table
Bolt Torque Table These tables are offered as the suggested maximum torque values for dry (not lubricated) threaded products and are only a general guide. Check tightness of bolts periodically, replace hardware with the same strength bolt. Torque specification for bolts are identified by their head markings as shown. See the “Wheel Torque Specification”... -
Page 30: Mower Parts
Mower Parts DETAIL A Note: OL = Obtain Locally c/w = complete with fw = Flatwasher lw = Lockwasher Wednesday, July 17, 2019 10:20:41 AM DETAIL B ln = Locknut n = Nut... - Page 31 Item # Part # Description # Item # Part # Description # 1/2 Nylon Locknut Zinc 55747 Professional Series 19 HP Briggs & Stratton 37127 Lift arm assy 37224 Motor mount plate 37249 Compacter Ratchet Bolt 5/16 X 2 c/w lw 5/8 x 2 1/2 Gr5 Hex Bolt Zinc Bolt 3/8 X 3.5 c/w lw 5/8"...
- Page 32 3950 Steffler Rd. Elmira Ontario N3B 2Z3 Toll Free: 855-664-2752 Tel.: 519-664-2752 Fax: 519-664-3695 sales@mkmartin.ca mkmartin.ca...
