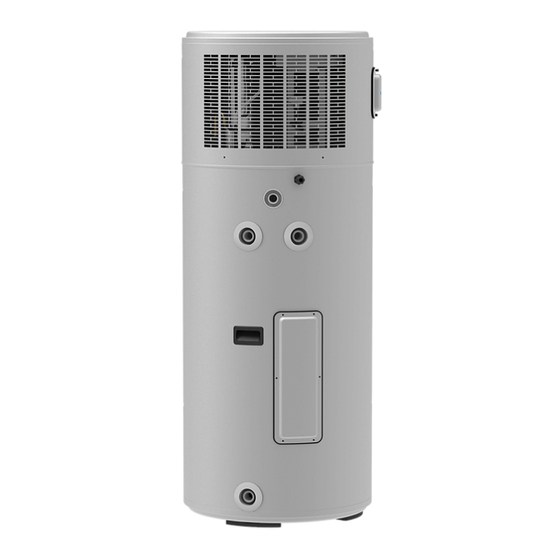

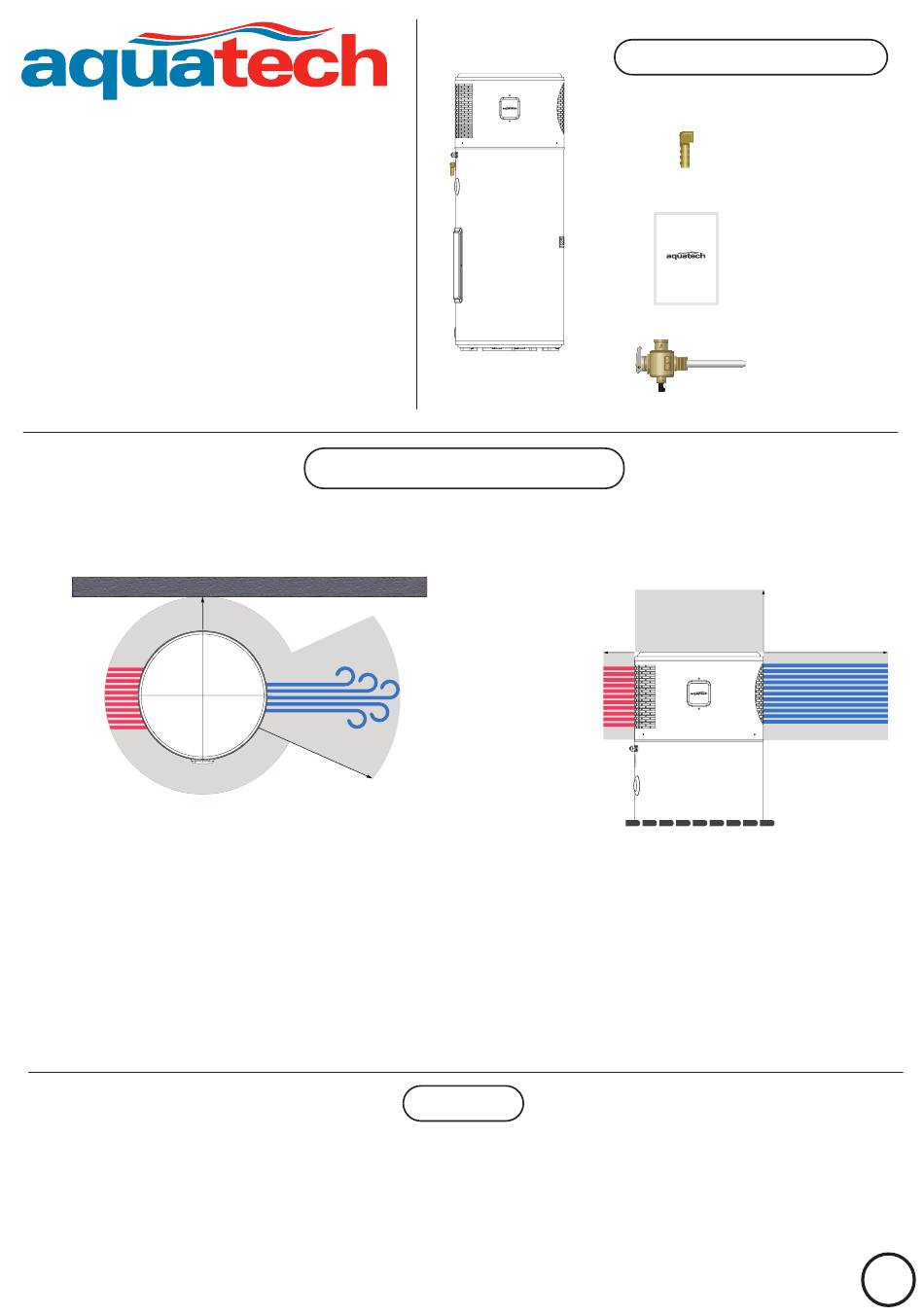

RAPID/X6
PLUMBER'S CONDENSED
INSTALLATION GUIDE
Top profile
Structure
• This unit is designed for external operation only and requires a continuous supply of air to operate efficiently.
• Avoid installation in areas where falling debris, such as leaves, is prevalent as this may result in air vents being
blocked or the unit being damaged.
• Avoid placing the system in locations with multiple walls or structures.
• Always maintain optimum perimeter from all structures.
• The unit should be installed on a concrete plinth or stable structure capable of sustaining weights in excess of
315kg.
• A minimum dimension of 600mm x 600mm is required. Please ensure that all four feet are supported by the
base being used otherwise warranties may be voided.
• Unit is to be installed level to ensure condensation drainage is not impaired.
1. LOCATION SELECTION
150mm
fan exhaust
600mm
RAPID UNIT
150mm
2. BASE
SUPPLIED CONTENTS
CONDENSATE
DRAINAGE
ELBOW (connected)
OWNER'S
MANUAL
RAPID/X6
PTR
Side profile
300mm
600mm
pg.1
Advertisement
Table of Contents
Related Manuals for AQUATECH RAPID/X6
Summary of Contents for AQUATECH RAPID/X6
- Page 1 SUPPLIED CONTENTS RAPID/X6 CONDENSATE DRAINAGE ELBOW (connected) PLUMBER’S CONDENSED OWNER’S INSTALLATION GUIDE MANUAL RAPID/X6 RAPID UNIT 1. LOCATION SELECTION Top profile Side profile Structure 150mm 300mm 600mm 150mm fan exhaust 600mm • This unit is designed for external operation only and requires a continuous supply of air to operate efficiently.
- Page 2 3. PLUMBING CONNECTIONS Cold Water supply outlet (G 3/4” female thread) Hot Water Outlet (G 3/4” female thread) Condensing drainage Elbow* P&T Relief Valve* (G 1/2” female _ ) (850kPa) To drain Electrical Cable To drain Tempering Valve To house (high performance recommended) Expansion Control Valve (ECV) (if required by council 700kPa)
