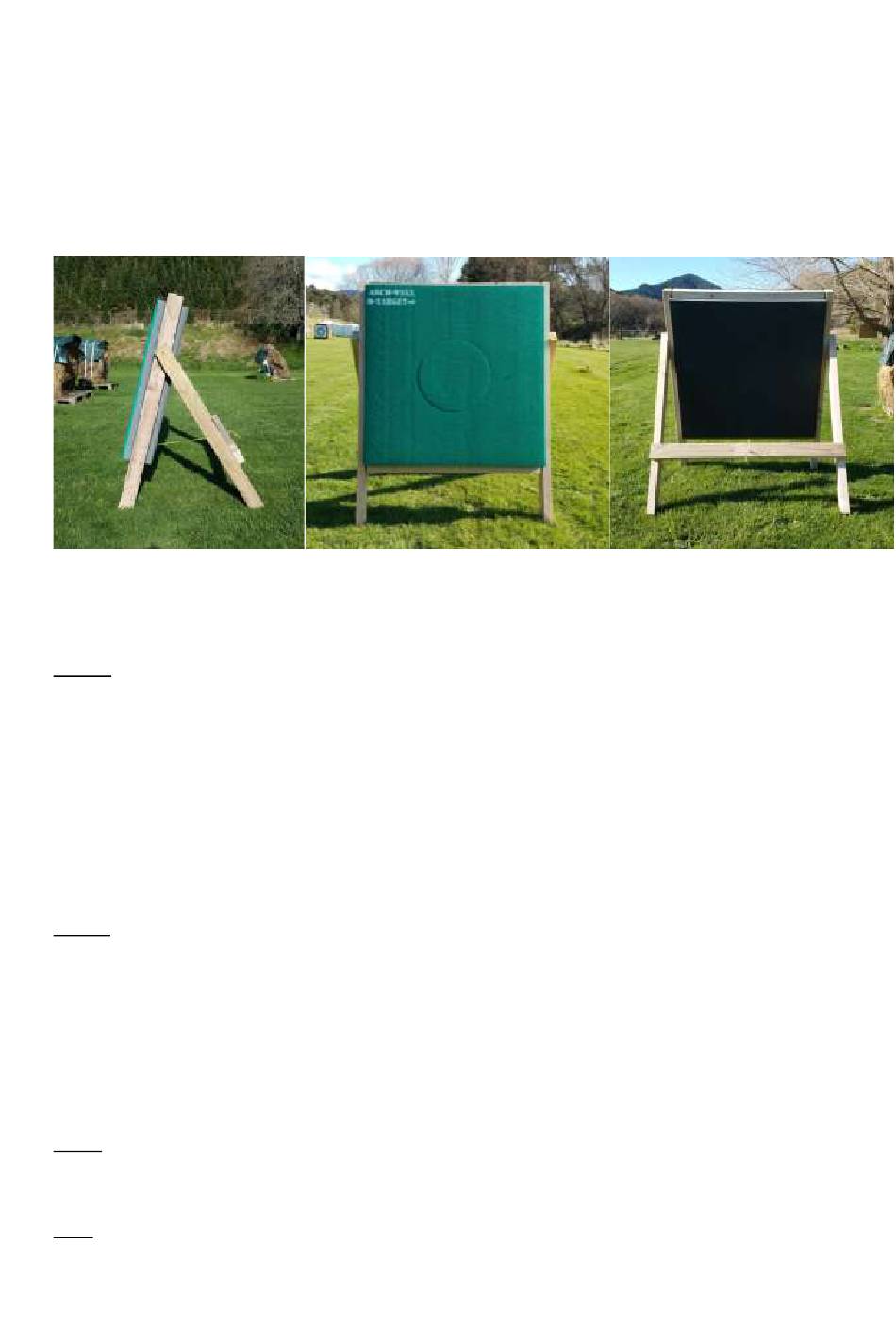

Arch Well 1m Butt – Archery Target Stand Instructions
These instructions will set the target centre at ca. 90cm from the ground - a good compromise for Field
Archers/3D archers between having a low target and comfort for pulling arrows.
For target archers the legs should be made longer to reach a target centre of 130cm.
Please note that strong wind can blow the target over and you may want to fix legs to the ground.
We also fashioned a cover from a tarp to protect the target butt from NZs strong UV while not in use.
Material:
Timber:
All timber should be treated 90 x 45 framing.
Front legs: 2 *1400
Top and Bottom beam: 2 * ca. 1000 (read instructions before cutting!)
Rear legs: 2 * 1200
Rear Cross bar: 1 * 1200
Screws:
Pre-drill for all screws!
8 * 14g x 75 Batten Screws
4 screws for rear crossbar, min. 65
2 screws for rear legs that allow swivelling
Other:
Rope ca. 1m
Tools
Drill, Screwdriver, Measuring tape, pencil, 2 to 4 ratchet straps, 2 clamps
Advertisement
Table of Contents
Summary of Contents for Archery Arch Well 1m Butt
- Page 1 Arch Well 1m Butt – Archery Target Stand Instructions These instructions will set the target centre at ca. 90cm from the ground - a good compromise for Field Archers/3D archers between having a low target and comfort for pulling arrows.
- Page 2 Construction: 1. Measure the actual width of your target 2. Cut the top and bottom beam to 5mm shorter than actual target width 3. Drill a hole in the center of the bottom beam to attach the rope through later 4.
