12V DC 2-Button Hand-Held Wireless Remote Control
Instruction Manual
Item No.: 8619066

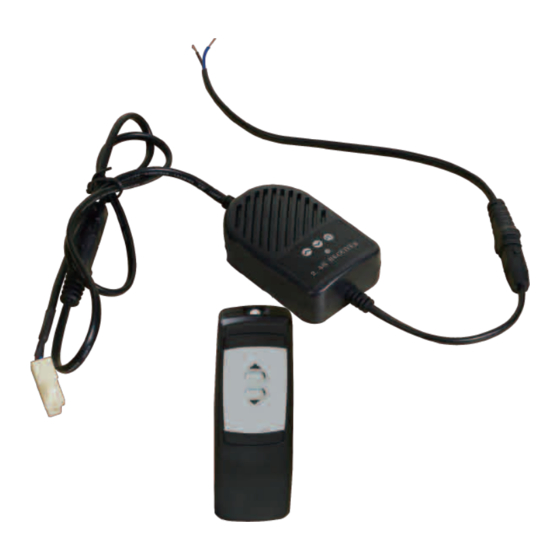

12V DC 2-Button Hand-Held Wireless Remote Control
Suitable for linear actuators and other 12V DC applications that require a 10A polarity reversing
wireless remote control switch.

Features

• Wireless remote control
• 50 ft. wireless range
• 50% duty cycle
• Max. output of 10 Amps

Each Kit Contains the Following Components:

Note: 2-AAA batteries are required for the remote control

Installation:

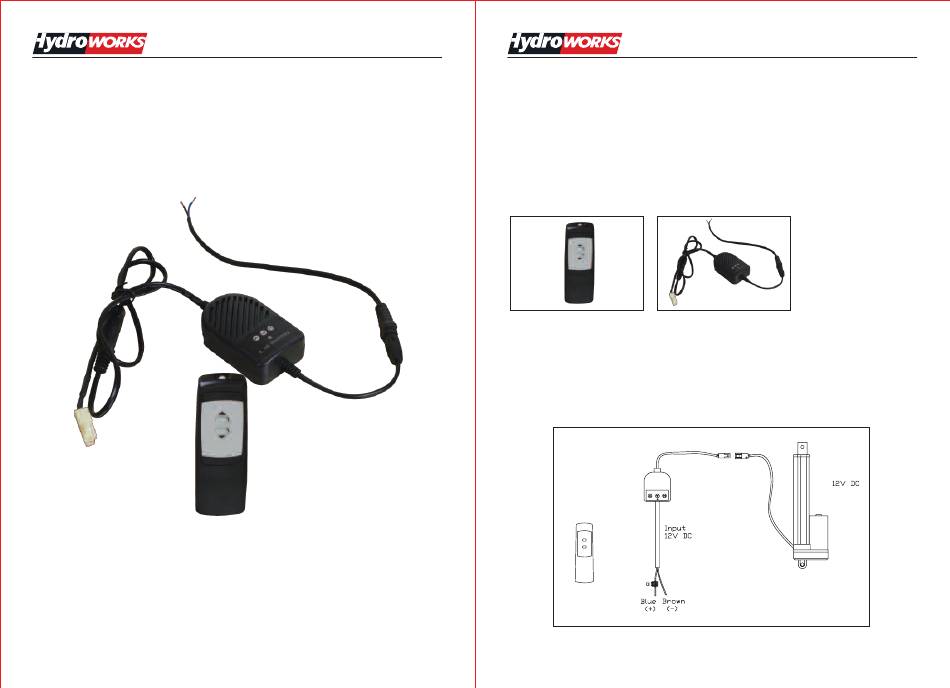

Follow the wiring diagram below to connect to the 135 lb. and 270 lb. linear actuators. Inspect all
the wiring to make sure the connections are properly made, you have a good quality ground and
there is a 10(Amp) fuse installed.

Wiring Diagram:

10 Amp
Fuse
Instruction Manual
1 OF 2
