Summary of Contents for Forterra Bioclean DEBRIS SEPARATING BAFFLE BOX

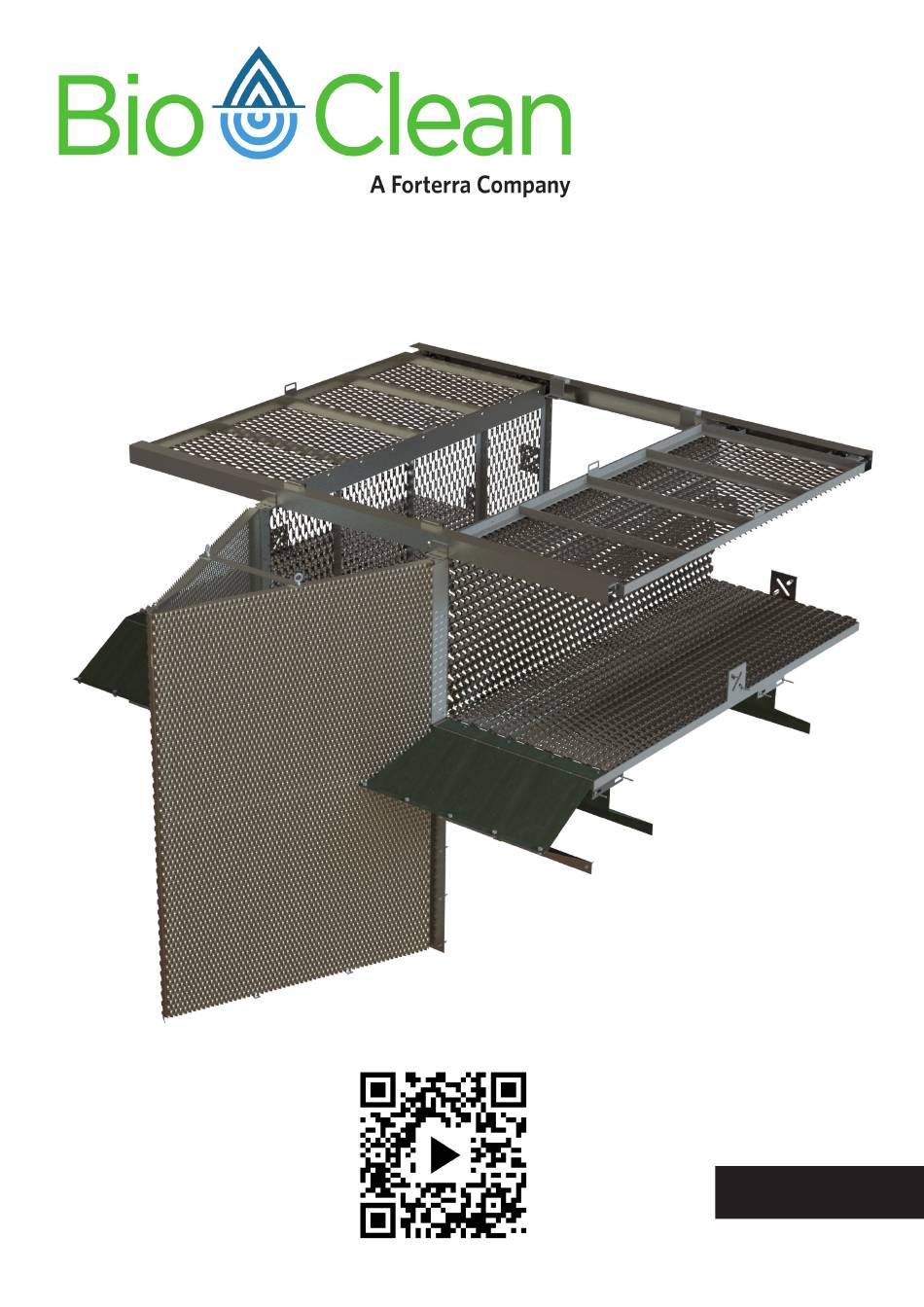

- Page 1 DEBRIS SEPARATING BAFFLE BOX (DSBB) Installation Manual PLAY SETUP VIDEO English...
- Page 2 INTRODUCTION Introducing the Bioclean DSBB Assembly Manual. In this manual, you will find a comprehensive set of instructions to assist in assembling your DSBB unit. This unit will contain main assemblies formed from sub-assemblies of the specific parts, which are detailed in the Project Drawings provided with your product.
- Page 3 PARTS & TOOLS CHECK LIST Ensure that the following parts are included. These are crucial components that will be the mainframe of your entire assembly. Sliding Door Left Cage Right Cage Sub-Assembly (x1) Sub-Assembly (x1) Sub-Assembly (x1) Deflector Shields (x2) Front Sliding Door Rail (x1) Front Ramp Sub-Assembly (x1) 1/4”...
- Page 4 PARTS & TOOLS CHECK LIST The following tools are recommended for this installation. 9/16” Wrench or Adjustable Wrench Safety Goggles Leather Gloves Marker Hand Level 1/2” Step Bit Impact Drill with 9/16” Deep Socket Caulking Gun & Silicone Rotary Hammer Drill With 3/8” &...
- Page 5 INSTRUCTIONS Level the Deflector Shield Hold the Deflector shield in place, and verify that the Deflector shield remains even with the top surface of the baffle wall. Drill the Opposite Corner Hole While maintaining the Deflector Shield leveled,drill a hole on the opposite corner.
- Page 6 INSTRUCTIONS Fully Attach All the Remaining Anchors Make sure you install one wedge anchor bolt at a time. Repeat and install the Second Deflector Shield Repeat the previous steps and attach the second Deflector Shield on the remaining baffle wall. Repeat these steps For multiple Baffle walls as required per your project drawings.
- Page 7 INSTRUCTIONS Verify that the Boom Cage is Fully Secured. Make sure the Skimmer Boom Cage is tightly secured and leveled. Step 3 - Installing the Left and Right Cage Sub-Assemblies Installing the Left Cage-Sub Assembly Begin step 3 by placing the Left Cage assembly on top of both baffle walls and up against the back baffle wall.
- Page 8 INSTRUCTIONS Attach the Bottom Anchor Bolts There are two mounting plates located on the bottom of the cage. Mark the hole locations on the slots located on the mounts and using a Rotary Hammer Drill with a 3/8” Drill Bit drill the anchor bolt holes.
- Page 9 INSTRUCTIONS Secure the Splitter Screen to the Left Cage Once the Splitter Screen is in place, locate the provided four self tapping screws ( the amount of screws may be greater than four for larger units see your project drawings). Tighten the four screws using a power drill with a 3/8”...
- Page 10 INSTRUCTIONS Step 5 - Installing the Front Ramp Sub-Assembly Attach the Top Ramps to the Cages Begin step 5 by attaching the Top Ramps to the Cages. Place one ramp at a time on top of the cages. Attaching the Top Left & Right Ramps Secure the top Ramps using the provided self-tapping screws.
- Page 11 INSTRUCTIONS Drill the Anchor Bolt Holes Locate the drilled holes on the bottom ramps. Push the louver ramp flush with the baffle wall. Drill the anchor bolt holes using a Rotary Hammer Drill with a 3/8” Drill Bit. Insert the Wedge Anchor Bolts Secure the bottom Louver Ramps using the provided 3/8”...
- Page 12 INSTRUCTIONS Place the Sliding Door Assemblies in Place Take the Sliding Door Sub-Assemblies and place each inside the Back Rail. The Cages are placed on top of the Cages with the Louver material facing backwards this determines which side to place them Attach the Front Sliding Door Rail Place the front Sliding Door Rail infront of both Sliding Doors right on top of the Splitter Screen.
-
Page 13: Technical Support
Technical support Bio Clean Corporate Office 5796 Armada Drive, Suite 250 Carlsbad, CA 92008 https://biocleanenvironmental.com/ (855) 566-3938 stormwater@forterrabp.com © BioClean 2020, All Rights Reserved...
