Summary of Contents for HighGear Compass
- Page 2 Care should be taken not to press any keys while the unit is wet or submerged as this can force moisture past the key seals and damage the unit. CAUTION: Exposure to strong magnetic fields will cause the compass unit to malfunction and may even permanently damage the compass sensor. COMPASS ONLY Keep the unit away from magnetic sources.
-
Page 3: Table Of Contents
SETTING THE WATCH FUNCTIONS EL/BACKLIGHT SYSTEM VIEW TIME ZONE 1 / TIME ZONE 2 SETTING TIME/DATE SETTING THE CHRONOGRAPH SETTING THE TIMERS CALIBRATING THE COMPASS SETTING DAILY ALARMS TABLE OF CONTENTS OPERATING THE WATCH OPERATING THE CHRONOGRAPH CHRONOGRAPH DATA REVIEW MEMORY... -
Page 4: How To Use This Manual
HOW TO USE THIS MANUAL Enduro watches have many unique features and functions. Be sure to read each section carefully so that you will fully understand how the units and its features work. The manual is divided into sections outlining each of the major functions of the watch. -
Page 5: Replacing The Watch Battery
NOTE: Heavy usage of the Compass or Backlight system may significantly reduce battery life. NOTE: A blank display or inaccurate compass readings are indications that the battery is getting weak and should be replaced. Remove battery door using a coin. -
Page 6: Display Symbols And Their Meanings
CHRONOGRAPH Timer is active when displayed TIMER Hourly chime is active when displayed HOURLY CHIME Alarm is active when displayed ALARM ON Compass is active when displayed ( DEGREES DISPLAY SYMBOLS AND THEIR MEANINGS MODE SYMBOLS symbol description SPLIT INIDCATOR... -
Page 7: Keys And Their Functions
KEYS AND THEIR FUNCTIONS The Enduro has 5 individual keys. Each key has several functions. The drawing identifies the keys and their names as used in this manual. SET/CLEAR KEY MODE KEY EL/LIGHT KEY KEYS AND THEIR FUNCTIONS MODE KEY... -
Page 8: Modes Of Operation
MODES OF OPERATION ENDURO MAIN DISPLAY MODES Advance through the modes below using QUICK PRESSES TIME CHRONOGRAPH COMPASS ALARM ENDURO COMPASS ONLY SETTING THE WATCH FUNCTIONS EL/BACKLIGHT SYSTEM of the MODE key. Activate the BACKLIGHT system at any time by EL/LIGHT of 2 seconds. -
Page 9: View Time Zone 1 / Time Zone 2
SETTING THE WATCH FUNCTIONS VIEW TIME ZONE 1 / TIME ZONE 2 Your Enduro watch allows you to set two separate time zones. In TIME MODE, Time Zone 2 can be viewed by a START/LAP key. When viewing Time Zone 2, the display will indicate T2 in the upper left of the display. -
Page 10: Setting The Chronograph
NOTE: You can exit the setting sequence at any time by PRESSING SET/CLEAR key. SETTING THE WATCH FUNCTIONS SETTING THE CHRONOGRAPH MODE key. Enduro watches are equipped with a 24-hour, 100-lap Chronograph with 1/100-second resolution. The Chronograph has 4 viewing options. In Chronograph mode: key. Adjust keys. keys. START/LAP MODE Key. -
Page 11: Setting The Timers
SETTING THE WATCH FUNCTIONS SETTING THE TIMERS Enduro watches are equipped with 3 independent 24-hour Timers with enhanced functionality. In TIMER MODE, you can scroll through Timers 1 through 3 by STOP/NEXT key. Timer options are: CD-STOP: Counts down, then stops at 00:00:00. -
Page 12: Calibrating The Compass
MODE key. Adjust by PRESSING calibrated any time it does not seem to be working properly. We recommend calibrating the compass prior to any activity where optimal accuracy is desired, such as a long back MODE key. Adjust by PRESSING country trip. - Page 13 MAGNETIC DECLINATION A magnetic compass points to the earth’s magnetic north pole. Depending on your location, this may be different from True North. Adjusting the Magnetic Declination allows you to compensate for this variation. Magnetic Declination for an area can be found on topographical maps.
-
Page 14: Setting Daily Alarms
SETTING THE WATCH FUNCTIONS SETTING DAILY ALARMS The Enduro watches are equipped with three individual daily alarms which can be set to the hour and minute. Alarms are active for current Time Zone selected. SELECTING ALARM 1, 2 OR 3... -
Page 15: Operating The Watch
1-20 and the lower line will display the DATE the run/workout was recorded. CONTINUED NEXT PAGE COMPASS QUICKACCESS ENDURO COMPASS ONLY When Chronograph is running, you can access the compass by PRESSING SET/CLEAR key. Compass will display for 10 seconds then return to Chronograph screen. -
Page 16: Reviewing Runs/Workouts
STOP TIMER. When timer is stopped, PRESS SET/CLEAR to RESET TIMER. COMPASS QUICKACCESS ENDURO COMPASS ONLY When Timer is running, you can access the compass by PRESSING SET/CLEAR key. Compass will display for 10 seconds then return to Timer screen. -

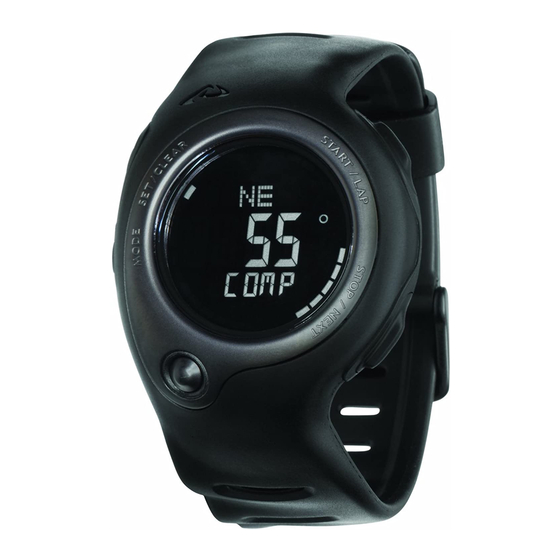

Page 17: Operating The Compass
OPERATING THE WATCH OPERATING THE COMPASS ENDURO COMPASS ONLY The Enduro Compass is equipped with a digital magnetic compass with reading in one-degree increments. Advance to COMPASS MODE by PRESSING key. To ACTIVATE COMPASS READING, PRESS START/LAP STOP/NEXT key. Compass will be active for 10 seconds. -
Page 18: Trouble Shooting Basic
ENDURO COMPASS ONLY Because the compass is magnetic it may be affected by local sources of electro- magnetic radiation (EMI). Avoid using the compass near appliances, in cars, near home security systems and other sources of EMI. - Page 19 SET/CLEAR KEY MODE KEY EL/LIGHT KEY HIGHGEAR USA/TECHTRAIL INC. web: www.highgear.com www.techtrail.com email: contacts@highgear.com © 2006 HighGear USA/TechTrail, Inc. All Rights Reserved. START/LAP KEY STOP/NEXT KEY...
