he DrumBox Travel set is
T
designed to allow storage of the
pedal inside of the cajon.

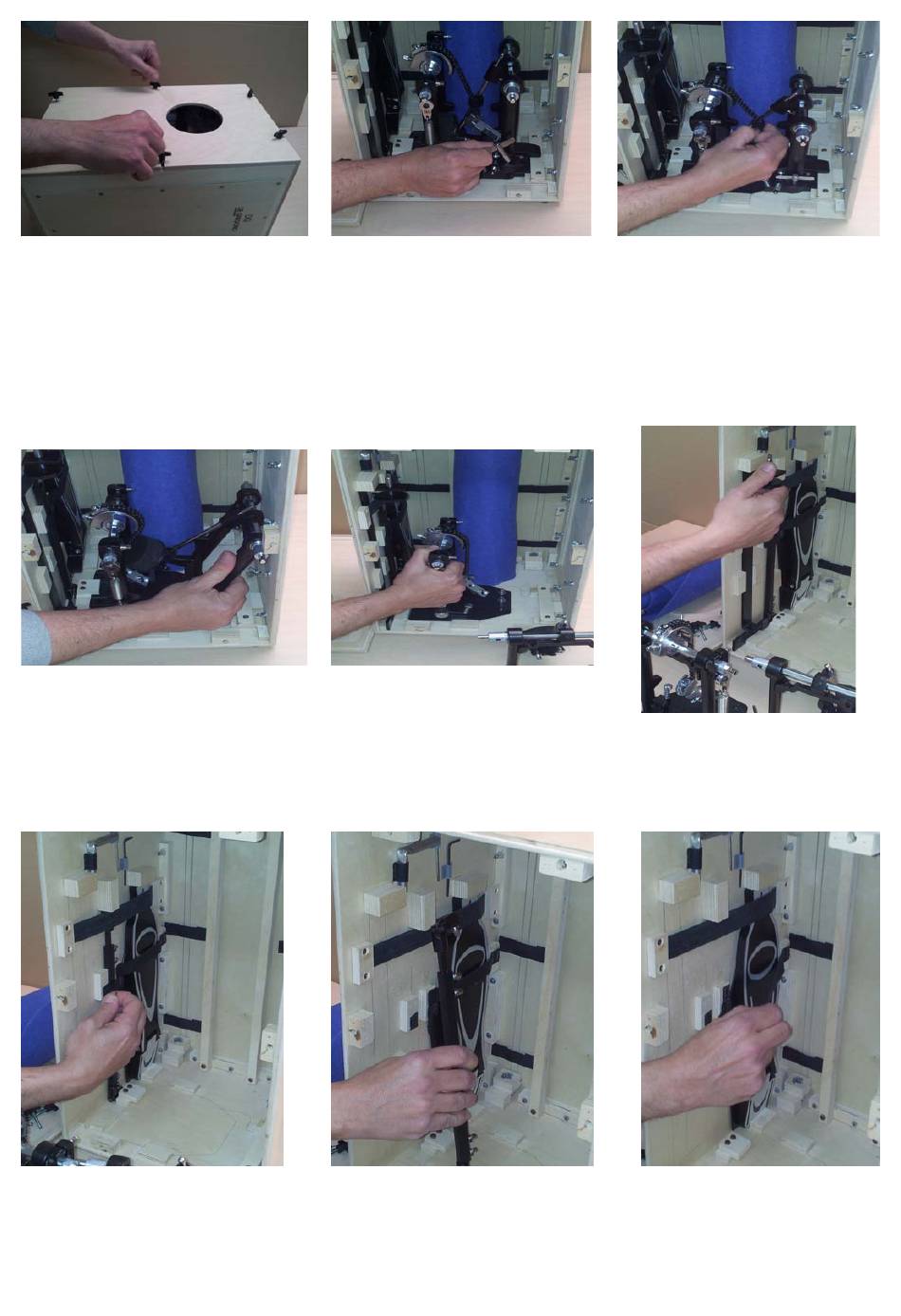

First of all remove the back panel
by unfastening the 6 wing nuts
placed around it.
When removing or placing the
beater post always keep it at
an angle to ease the movement.
Then remove the
transmission bracket.
Remove the beater post
by unfastening the clamp with
the drum key that comes
attatched.
Remove the other pos
The transmission bracket has
compulsory positioning, with the
thinner part facing upwards, and
the tightening bolts towards the
front panel.
Remove the double sided velcro
that unites the beater bar to the
pedal chain, which function is to
prevent any of those pieces to
wander randomly and cause
damage inside of the instrument.
Now remove the other parts,
t.
starting from the bottom
clamp.
Finally, remove the
foot platform.
Advertisement
Table of Contents
Summary of Contents for DG DrumBox Travel set
- Page 1 Remove the double sided velcro he DrumBox Travel set is Remove the beater post that unites the beater bar to the designed to allow storage of the by unfastening the clamp with pedal chain, which function is to pedal inside of the cajon.
- Page 2 Join the foot platform to the chain post, if you are right Join the chain to the foot footed the post shall be placed at the right side to the platform, using the last hole foot platform if you are left footed then it's the opposite from the chain.
