Godox WH-M1 Instruction Manual

Godox WH-M1 Instruction Manual

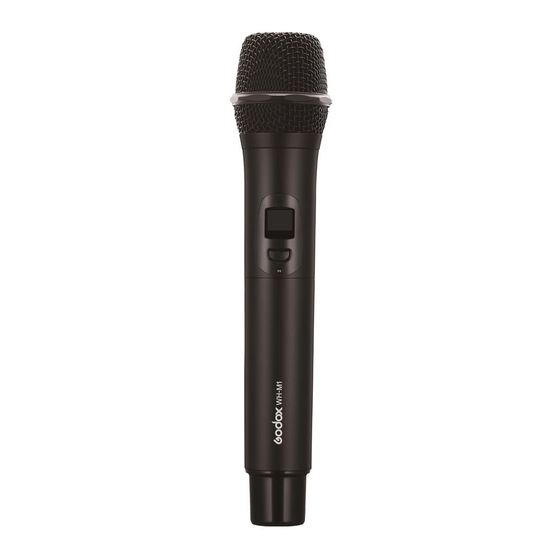

Wireless handheld microphone transmitter
Hide thumbs Also See for WH-M1:

Advertisement

GODOX设计⽂件图注
项⽬类型
项⽬名称
产品料号
尺⼨(mm)
尺⼨公差
材质
⼯艺说明
备注/⾊值
设计师
说明书
WH-M1⽆线⼿持⻨克⻛发射器
75x150mm
±2mm
骑⻢钉
105g铜版纸
正反印刷,单⾊
赖慧怡
版本
A
校对
赖慧怡

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH-M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Godox WH-M1

  • Page 1 GODOX设计⽂件图注 项⽬类型 说明书 版本 项⽬名称 WH-M1⽆线⼿持⻨克⻛发射器 产品料号 尺⼨(mm) 75x150mm 尺⼨公差 ±2mm 材质 骑⻢钉 ⼯艺说明 105g铜版纸 备注/⾊值 正反印刷,单⾊ 设计师 赖慧怡 校对 赖慧怡...
  • Page 2 Follow Wechat Public Account Wireless Handheld Microphone Transmitter 深圳市神⽜摄影器材有限公司 地址: 深圳市宝安区福海街道塘尾社区耀川工业区厂房2栋 电话: +86-755-29609320(8062) 传真: +86-755-25723423 邮箱: godox@godox.com GODOXPhotoEquipmentCo.,Ltd. Add: Building 2, Yaochuan Industrial Zone,Tangwei Communi - ty, Fuhai Street, Bao’an District, Shenzhen 518103, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 E-mail: godox@godox.com...
  • Page 3 前言 产品结构 欢迎使用神牛UHF无线手持麦克风发射器WH-M1,本产品设有 易于阅读的液晶显示屏,美观便捷的内置天线和晶体控制锁相环合 成器,具备噪音抑制功能及锁定功能。 WH-M1非常适用于摄影录制,现场采访及语音录制等场合。请仔细阅 读本说明书,以便能正确的操作,发挥本产品的优越性能。 产品特点 ① UHF频率范围:514MHz-596MHz, 96个无线频道可随意切换,互不干扰 ② 广播级音质,清晰稳定 ③ 无线距离最大可达80m ④ OLED显示屏提供各项参数设置 ⑤ 输出音量控制,提供静音功能 ①机⾝ ⑥ 发射功率可调节 ⑦ 提供出色的噪音抑制处理 采用人体工学设计 ②液晶屏 警告 指⽰当前的传输功率级别:H为⾼功率,L为低功率 B. 静⾳图标 请勿私自拆卸产品,如产品出现故障须由本公司或授权的维修人 静⾳模式开启 静⾳模式关闭 员进行检查维修。 C. 锁定图标 请保持干燥:请勿用湿手接触产品,亦不可将产品浸入水中或暴 锁定设置和锁定关机 露于雨中。 CH-B-03 请勿让儿童接触本产品。...
  • Page 4 ③电源/静⾳键 电源: ⻓按2秒开/关机。 静⾳: 使⽤时,短按该按键,将开启静⾳模式,再按⼀次关闭静⾳模式。 (注意: 静⾳时,不会输出⾳频信号,但仍会传输射频信号。) WH-M1 ④操作⾯板 A.Lock锁定开关按键 拨动按键至ON,可防止使用麦克风 时错误操作。 (注意:锁定开关不会锁定静音功能) WH-M1 WH-M1 B.RF功率按键 将射频功率设置为HIGH或LOW。 锁定开关设置: 拨到ON时,此时设备处于锁定状态,无法进行设置,无法关机。 拨到OFF时,设备解除锁定,可以进行设置组别和频道,可以关机。 WH-M1 RF功率设置: 使⽤时,请将WH-M1和接收器RX1设置相同的GRP和CH。 拨到HIGH高功率,拨到LOW低功率。 接收器设置请查收UHF⽆线⻨克⻛系统WMicS1说明书。 ⑤天线 操作步骤 ⑥电池仓 1.按箭头⽅向转动并向下拉动⼿柄,在电池槽 本产品使用两节AA电池 (电池需自行购买) 操作。 内插⼊新的两节AA电池(电池需⾃⾏购买); 2.按电源键打开WH-M1; 使用说明 3.将锁定开关设置为ON或OFF; 4.将RF功率设置为HIGH或LOW; WH-M1作为神⽜的⼀款UHF⽆线产品,可与其它同类型⽆线产品搭配使⽤。 5.打开接收器与WH-M1设置相同的组别和频道; WH-M1与神⽜UHF⽆线⻨克⻛系统...
  • Page 5 Preface 规格参数 型号 WH-M1 Thank you for choosing Godox UHF Wireless Handheld WH-M1 Transmitter. 频道组 It features a readable OLED screen, a beautifully and conveniently built-in 频道数 96 (A组48B组48) antenna and PLL synthesizer, and also functions with noise suppression and RF频率范围...
  • Page 6 Product Structure 2. Double press the power button to enter the Settings. When the screen begins to flicker, press the buttonor or long press it to set the GRP,or double press it to set the CH. Then double press the button again to exit the Settings. -GRPGroup:A/Bgroupsforselection. -CHChannel:1-48selectablechannelsforA/Bgroups. Note: When entering the Settings, it will automatically return to the home screen...
  • Page 7 WH-M1 the transmitter and receiver. Operating audio distance limited or signal missing. Check if batteries are When using, please set the WH-M1 and receiver RX1 into same GRP and exhausted. If so, replace them. CH frequency. As for how to set up the receiver, please refer to UHF wireless system Maintenance WMicS1 user manual.
  • Page 8 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
