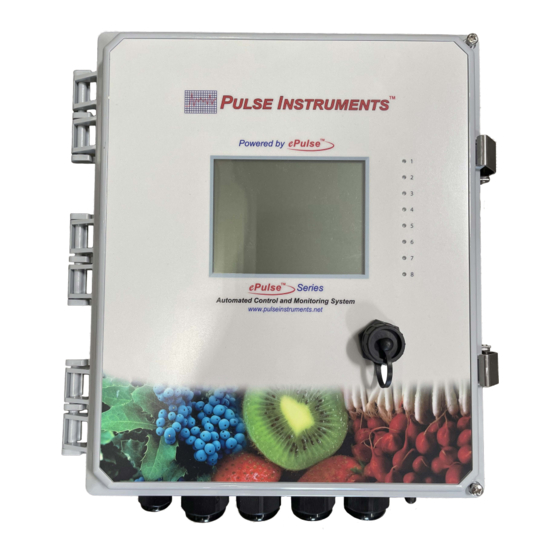

Summary of Contents for Pulse Instruments EP2100

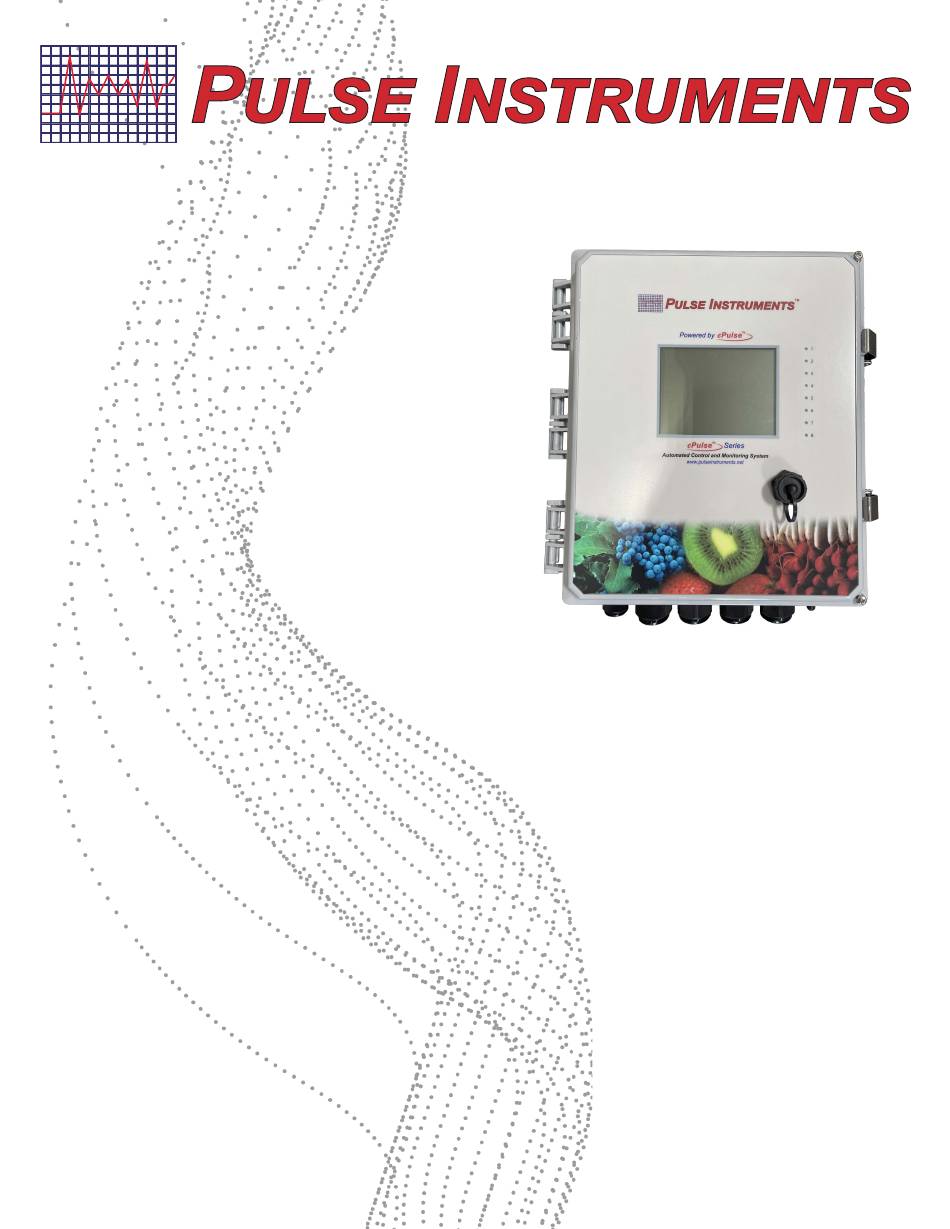

  • Page 1 EP2100 Instruction Manual...
  • Page 2 Notice © 2022 Pulse Instruments, Primordial Diagnostics (hereinafter “Pulse”) 3233 Mission Oaks Blvd Unit P, Camarillo, CA 93012 USA (800) 462-1926 All Rights Reserved Printed in USA Proprietary Material The information and descriptions contained herein are the property of Pulse. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Pulse, 3233 Mission Oaks Blvd Unit P, Camarillo, CA 93012.

  • Page 3: Table Of Contents

    Contents 1.0 INTRODUCTION ....................... 1 2.0 SPECIFICATIONS ..................... 2 2.1 Measurement Performance ..................2 2.2 Electrical: Input/Output ....................4 2.3 Intended Use ......................6 2.4 Mechanical ......................... 6 2.5 Variables and their Limits ................... 7 3.0 UNPACKING & INSTALLATION ................11 3.1 Unpacking the unit ....................
  • Page 4 5.2.22 Virtual Input – Raw Value ................68 5.2.23 Virtual Input - Disturbance ................69 5.2.24 Remote Modbus Sensor Virtual Input .............. 70 5.3 Outputs Menu ......................71 5.3.1 Relay or Control Outputs, Any Control Mode ..........71 5.3.2 Relay or Control Outputs, On/Off Control Mode ..........72 5.3.3 Relay or Control Outputs, Flow Timer Control Mode ........
  • Page 5 5.4.10 File Utilities ....................111 5.4.11 Controller Details ..................112 5.5 HOA Menu ......................113 5.6 Graph Menu ....................... 114 6.0 OPERATION using Ethernet ................115 6.1 Connecting to a LAN .................... 115 6.1.1 Using DHCP ....................115 6.1.2 Using a fixed IP Address ................115 6.2 Connecting Directly to a Computer ..............

  • Page 6: Introduction

    1.0 INTRODUCTION The Pulse EP2100 Series controllers offer a high level of flexibility in controlling water treatment applications. • There are four slots that accept a variety of Input/Output Modules, which provides unparalleled versatility. Dual sensor input modules are available that are compatible with a variety of sensors (two sensors per module): »...

  • Page 7: Specifications

    Auxiliary DC power option boards, available with either 12 or 24 VDC, may be added to support high-wattage trans- mitters or ancillary devices such as cell modems by supplying up to 10 watts of power. The standard Ethernet feature provides remote access to the controller’s programming via a PC connected directly, via a local area network, or via Fluent account management server.
  • Page 8 Analog (4-20 mA) Range 0 to 22 mA Resolution 0.01 mA Accuracy ± 0.5% of reading Corrosion Range Resolution 0-2 mpy or mm/year 0.001 mpy or mm/year 0-20 mpy or mm/year 0.01 mpy or mm/year 0-200 mpy or mm/year 0.1 mpy or mm/year 0.01 Cell Contacting Conductivity Range 0-300 µS/cm...

  • Page 9: Electrical: Input/Output

    Temperature °C Range Multiplier Temperature °C Range Multiplier 181.3 43.5 139.9 39.2 124.2 35.7 111.1 32.8 100.0 30.4 90.6 28.5 82.5 26.9 75.5 25.5 64.3 24.4 55.6 23.6 48.9 22.9 Note: Conductivity ranges on page 2 apply at 25°C. At higher temperatures, the range is reduced per the range multiplier chart.
  • Page 10 Low Speed Counter-Type Digital Inputs Electrical: Optically isolated and providing an electrically isolated 12VDC power with a nominal 2.3mA current when the digital input switch is closed 0-20 Hz, 25 msec minimum width Devices supported: Any device with isolated open drain, open collector, transistor or reed switch Types: Contacting Flowmeter, Flow Verify High Speed Counter-Type Digital Inputs Electrical: Optically isolated and providing an electrically isolated...

  • Page 11: Intended Use

    (100-240 VAC) power supply network which supplies buildings used for domestic purposes. Intended Use The Pulse EP2100 is a microprocessor-based measuring and control instrument used to measure water quality parameters and other process variables in a wide range of water and wastewater treatment applications. Operating the instrument in any way other than as described in these instructions may compromise the safety and function of the measuring system and is therefore impermissible.

  • Page 12: Variables And Their Limits

    Contacting conductivity SS 316SS, Glass-filled PP, FKM 0-150 psi (0-10 bar)* 32-158°F (0-70°C)* 3/4” NPTM (Cooling Tower) o-ring Contacting conductivity 0-250 psi (0-17 bar) 32-401°F (0-205°C) 316SS, PEEK 3/4” NPTM (Boiler) Contacting conductivity 0-300 psi (0-21 bar)* 32-158°F (0-70°C)* 316SS, PEEK 3/4”...
  • Page 13 Default temperature Deadband Low end of sensor range High end of sensor range Calibration Required Alarm 0 days 365 days Sensor Slope (Generic sensor only) -1,000,000 1,000,000 Sensor Offset (Generic sensor only) -1,000,000 1,000,000 Low Range (Generic sensor, Virtual Input) -1,000,000 1,000,000 High Range (Generic sensor, Virtual Input)
  • Page 14 Counter Input Settings Low Limit High Limit DI Counter Rate Alarms 30,000 DI Counter Rate Deadband 30,000 Totalizer Alarm 2,000,000,000 Set Total 2,000,000,000 Units per Pulse 0.001 1,000 Smoothing Factor Remote Modbus Input Settings Low Limit High Limit Alarm Limits Low end of defined range High end of defined range Deadband...
  • Page 15 Wait Time (Intermittent Sampling mode) 0 seconds 86,400 seconds Max Rate (Pulse Proportional, Pulse PID, Flow Prop modes) 10 pulses/minute 2400 pulses/minute Minimum Output (Pulse Proportional, Pulse PID modes) 100% Maximum Output (Pulse Proportional, Pulse PID modes) 100% Gain (Pulse PID Standard mode) 0.001 1000.000 Integral Time (Pulse PID Standard mode)

  • Page 16: Unpacking & Installation

    Inspect the contents of the carton. Please notify the carrier immediately if there are any signs of damage to the controller or its parts. Contact your distributor if any of the parts are missing. The carton should contain an EP2100 series controller and an instruction manual.

  • Page 17: Sensor Installation

    Sensor Installation Refer to the specific instructions supplied with the sensor being used, for detailed installation instructions. General Guidelines Locate the sensors where an active sample of water is available and where the sensors can easily be removed for cleaning. Position the sensor such that air bubbles will not be trapped within the sensing area. Position the sensor where sediment or oil will not accumulate within the sensing area.
  • Page 18 COOLING TOWER METERING PUMPS HEAT EXCHANGER Figure 1 Typical Installation – Cooling Tower...
  • Page 19 AC POWER FLOW IN FLOW OUT SUBMERSION ELECTRODE BASE ACID PROBE Figure 2 Typical Installation – Submersion...
  • Page 20 SAMPLE RETURN 1 ATMOSPHERE MAXIMUM ROTAMETER 30-100 LPH SENSOR FLOW CELL ISOLATION FLOW VALVE SWITCH (NORMALLY FLOW OPEN) CONTROL VALVE SAMPLE VALVE RECIRCULATION PUMP PROCESS WATER Figure 3 Typical Installation – Disinfection Sensor...
  • Page 21 through the line cannot be stopped to allow for cleaning and calibration of the sensor, then it should be placed in a by-pass line with isolation valves to allow for sensor removal. Install the sensor vertically, with the measuring surface pointing down, at least 5 degrees above horizontal. Flow rate regulation must be done upstream from the sensor, because any flow restriction downstream can increase the pressure above atmospheric and damage the membrane cap! The corrosion sensor should be placed as close to the controller as possible, to a maximum distance of 100 feet...
  • Page 22 Use intermittent sampling when the boiler operation or loading is intermittent, or on boilers where the required blowdown rate is less than 25% of the smallest available flow control valve or less than the flow through the smallest orifice. See the graphs on the next page. Use continuous sampling when the boiler is operating 24 hours per day and the required blowdown rate is more than 25% of the smallest applicable flow control valve or orifice.
  • Page 23 RECOMMENDED INSTALLATION Skimmer Blowdown Line INTERMITTENT SAMPLING 3/4" Min. up to Electrode 10 ft. max. with minimal valves, elbows & unions CONDUCTIVITY ELECTRODE Flow Motorized Full Port Block Control Ball Valve Valve or or Solenoid ¾" TEE Orifice Union Valve 2 ft.

  • Page 24: Icon Definitions

    Flow Control Valve Maximum Flow Rates in Lbs/hr 25000 20000 15000 1/2" 150 PSI 1/2" 300 PSI 3/4" 150 PSI 3/4" 300 PSI 10000 5000 Pressure PSI 3.4 Icon Definitions Symbol Publication Description IEC 417, No.5019 Protective Conductor Terminal IEC 417, No. 5007 On (Supply) IEC 417, No.

  • Page 25: Electrical Installation

    Electrical installation The various standard wiring options are shown in figure 5, below. Your controller will arrive from the factory pre- wired or ready for hardwiring. Depending on your configuration of controller options, you may be required to hard- wire some or all of the input/output devices. Refer to figures 6 through 19 for circuit board layout and wiring. Note: when wiring the optional flow meter contactor input, the 4-20 mA outputs or a remote flow switch, it is advis- able to use stranded, twisted, shielded pair wire between 22-26 AWG.
  • Page 26 Fixed Position Relay Boards Expansion I/O & Main Controller Ribbon Cable Auxiliary Power Board Board & Display WiFi Board I/O Slot 1 Relay Fuses (only for models with powered relays) Battery Relay Terminal Blocks (BR2032) Power Supply Neutral Terminal Block AC Power Terminal Block Ethernet...
  • Page 27 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board Part Number I/O Board 1-4 P/N 191910 SENSOR INPUT(2) Terminal Blocks TBxA - SENSOR 1 TBxB - SENSOR 2 Channel 1 Contacting Conductivity (CCOND) Contacting Conductivity (CCOND) ECOND pH/ORP DIS...
  • Page 28 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board 1-4 Terminal Blocks I/O Board Part Number P/N 191910 SENSOR INPUT(2) TBxA - SENSOR 1 TBxB - SENSOR 2 ECOND pH/ORP DIS CCOND RCV+ RCV–...
  • Page 29 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board 1-4 Terminal Blocks I/O Board Part Number P/N 191910 SENSOR INPUT(2) TBxA - SENSOR 1 TBxB - SENSOR 2 ECOND CCOND pH/ORP DIS RCV+ RCV–...
  • Page 30 I/O Boards 1 through 4 Auxiliary I/O Board P/N Identification Labels VDC Power Option Board I/O Board wiring labels I/O Board 1-4 I/O Board Part Number Auxiliary Terminal Blocks P/N 191912 4-20 mA INPUT (2) VDC Power TBxA - INPUTS 1-2 Terminal Block TBxB - NOT USED UNPOWERED...
  • Page 31 I/O Boards 1 through 4 Auxiliary I/O Board P/N Identification Labels VDC Power Option Board I/O Board wiring labels I/O Board 1-4 Auxiliary Terminal Blocks I/O Board Part Number VDC Power Terminal Block P/N 191913 4-20 mA INPUT (4) TBxA - INPUTS 1-3 TBxB - INPUT 4 UNPOWERED 2 Wire...
  • Page 32 I/O Boards 1 through 4 Auxiliary I/O Board P/N Identification Labels VDC Power Option Board I/O Board wiring labels I/O Board 1-4 Auxiliary Terminal Blocks I/O Board Part Number VDC Power P/N 191914 4-20 mA INPUT (6) Terminal Block TBxA - INPUTS 1-3 TBxB - INPUTS 4-6 UNPOWERED 2 Wire...
  • Page 33 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board 1-4 Terminal Blocks I/O Board Part Number P/N 191915 4-20 mA OUTPUT (2) TBxA - OUTPUTS 1-2 TBxB - NOT USED 4-20 mA Output –...
  • Page 34 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board 1-4 I/O Board Part Number Terminal Blocks I/O Board Part Number P/N 191916 4-20 mA OUTPUT (4) TBxA - OUTPUTS 1-2 TBxB - OUTPUTS 3-4 4-20 mA Output –...
  • Page 35 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board 1-4 I/O Board Part Number Terminal Blocks P/N 191918 4-20 mA INPUT (2)/OUTPUT (4) TBxA - INPUT 1, OUTPUTS 1-2 TBxB - INPUT 2, OUTPUTS 3-4 2 Wire 2 Wire 4-20 mA...
  • Page 36 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board Part Number I/O Board 1-4 Terminal Blocks P/N 191920 CORROSION INPUT(2) TBxA - SENSOR 1 TBxB - SENSOR 2 Channel 1 CORROSION XMT RED XMT (Red) RCV GRN RCV (Green)
  • Page 37 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board 1-4 Terminal Blocks D1– SIGNAL IN – D2– POWER +12V D3– FLOW SWITCH Hall Effect Contact Closure: D4– FLOW METER Polarity not critical Reed Switch D5–...
  • Page 38 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board 1-4 Terminal Blocks Relay Model Code A or 0 Powered Powered Powered Powered Powered Powered Powered Powered B or 1 Powered Powered Powered Powered Powered Powered Powered...
  • Page 39 I/O Boards 1 through 4 I/O Board P/N Identification Labels I/O Board wiring labels I/O Board 1-4 Terminal Blocks Relay Model Code 8 or 9 Relay Module Code A or H Powered Powered Powered Powered C or K Pulse Pulse Pulse Pulse D or I...

  • Page 40: Function Overview

    4.0 FUNCTION OVERVIEW Front Panel Figure 20 Front Panel Touchscreen A Home screen is displayed while the controller is on. Across the top of the screen are tabs for each major menu group: Home, Inputs, Outputs, Graphs, HOA (Hand – Off – Auto output operation), Configuration, and Alarms. Touching the tab brings up the menus associated with that group.
  • Page 41 Configuration Menu HOA Menu Graph Menu Home Page Filter Other icons may appear in the menu screens. Calibration icon appears in sensor input menus and brings up the calibration menu Graph icon appears in Input menus and brings up the Graphs menu showing that input Edit icon appears in Input and Output details menus and allows the editing of settings Information icon appears in Input and Output menus in place of the Edit icon and is used to leave edit mode and return to viewing information related to that Input or Output.

  • Page 42: Startup

    Move Up or Down icons appear in Edit Home Screen Layout and are used to move a parame- ter up and down in it’s position on the screen Delete icon appears in Edit Home Screen Layout and is used to delete all contents in that section of the Home screen <task_delete>...
  • Page 43 EP2100™ calibration will only be in units of mA. Select Transmit-ter if the device connected cannot be calibrated on its own and the EP2100™ will need to be used to calibrate in engineering units of measure.

  • Page 44: Shut Down

    Calibrate the sensor To calibrate the sensor, return to the list of inputs, touch the sensor to calibrate, touch the Calibrate icon, and select one of the calibration routines. For disinfection and Generic sensors, start with the Zero Calibration. For electrodeless conductivity, start with the Air Calibration.

  • Page 45: Operation Using The Touchscreen

    5.0 OPERATION using the touchscreen These units control continuously while power is applied. Programming is accomplished either via the touchscreen or the optional Ethernet connection. See section 6.0 for Ethernet instructions. To view the readings of each sensor, or whatever user-defined list of parameters that has been set, touch the Home icon if not already there.
  • Page 46 MAIN MENU / HOME SCREEN OVERVIEW INPUTS Home Inputs Outputs Graphs HOA Config HOME SCREEN (example) Ccond (S11) Temp (S12) 1000 50.5 Home Inputs Outputs Graphs HOA Config °F µS/cm Ccond (S11) ● On/Off (R1) Cond (S13) Temp (S14) 1000 1000 50.5 ○...
  • Page 47 INPUTS Home Inputs Outputs Graphs HOA Config List of Possible Inputs Ccond (S11) Temp (S12) Contacting Conductivity Flow Meter, Paddlewheel type 1000 50.5 Electrodeless Conductivity Feed Monitor °F Temperature Counter µS/cm Remote Modbus DI State Cond (S13) Temp (S14) DI Counter 1000 50.5 Disinfection...
  • Page 48 INPUTS Additional Settings for Flowmeter: Flowmeter (S11-S46) Deadband Transmitter Reset Flow Total Flow Units 5 l/min Set Flow Total Rates Units Scheduled Reset Flowmeter Max LoLo Alarm Low Alarm Reset Calibration Valves Input Filter High Alarm Cal Required Alarm Name HiHi Alarm Alarm &...
  • Page 49 VIRTUAL INPUTS DIGITAL INPUTS Additional Settings for Calculation: Additional Settings for DI State: DI State (D1-D12) Calculation (V1-V16) Deadband Low Range Open Message Total Time Input High Range Closed Message Reset Time Total No Flow 1000 µS/cm Interlock Name Constant Smoothing Factor Alarm Type...
  • Page 50 OUTPUTS Home Inputs Outputs Graphs HOA Config List of Possible Outputs On/Off control mode Timer control mode On/Off (R1) Flow Timer (R2) On/Off Disturbance control mode Probe Wash control mode Flow Timer control mode Spike control mode Bleed & Feed control mode Lag Output control mode Percent Timer control mode Mass Balance PPM Volume Bio Timer (R3)
  • Page 51 RELAY OUTPUTS & VIRTUAL (CONTROL) OUTPUTS Not available for virtual outputs Only if HVAC mode is enabled Additional settings for Lag Control Mode: Swipe to additional settings for Bleed & Feed Mode: Lag Control (R1-R12) Bleed & Feed (R1-R12, C1-C16) Activation Mode* Activate with Channels Interlock Channels...
  • Page 52 RELAY OUTPUTS & VIRTUAL (CONTROL) OUTPUTS Additional settings for Manual Mode: Spike Control (R1-R12, C1-C16) Additional settings for Spike Control Mode: Manual (R1-R12, C1-C16) Reset Output Timeout Name Onset Time Reset Output Timeout Interlock Channels Mode Duty Cycle Period Interlock Channels Minimum Relay Cycle Duty Cycle Activate With Channels...
  • Page 53 ANALOG OUTPUTS & VIRTUAL (CONTROL) OUTPUTS Not available for virtual outputs Retransmit (A11-A44, C1-C16) Additional settings for Retransmit Mode: Error Output Reset Time Total Input Name HOA Setting Mode 4 mA Value 20 mA Value Hand Output Additional settings for Proportional Control Mode: Prop Control (A11-A44, C1-C16) Max Output Total...
  • Page 54 CONFIG MENU Home Inputs Outputs Graphs HOA Config Swipe for addional settings for WiFi Settings: WiFi Settings DHCP Setting Ad-Hoc Key Global Settings Security Settings Controller IP Address SSID Broadcast Network Netmask TCP Timeout Network Gateway Temporary Ad-Hoc Ethernet Settings Ethernet Details WiFi Mode DNS Server...

  • Page 55: Alarms Menu

    Alarms Menu If there is a red icon with a number in it in the upper right corner of the screen, there are that many active alarms. Touch the icon to view a list of active alarms. If there are more than four active alarms, scroll up or down to see the next page.
  • Page 56 Cal Successful or Failed If successful, touch Confirm to put the new calibration in memory. If failed, you may retry the calibration or cancel. Refer to Section 8 to troubleshoot a calibration failure. Resume Control Replace the sensor in the process and touch Confirm when ready to resume control. Two Point Buffer Calibration Cal Disables Control Touch Confirm to continue or Cancel to abort...
  • Page 57 Stabilization When the temperature (if applicable) and signal from the sensor is stable, the controller will automatically move to the next step. If they don’t stabilize you may manually go to the next step by touching Confirm. Second Buffer Temperature (only appears if no temperature sensor is detected) Enter the temperature of the buffer and touch Confirm.

  • Page 58: Contacting Conductivity

    Please set input signal to specified value Make sure that the transmitter is sending the desired mA signal. Touch Confirm to continue or Cancel to abort. Automatic circuit calibration in progress Second Input Value Enter the mA value that the transmitter will be sending. Touch Confirm to continue or Cancel to abort. Please set input signal to specified value Make sure that the transmitter is sending the desired mA signal.

  • Page 59: Electrodeless Conductivity

    5.2.2 Electrodeless Conductivity Settings Touch the Edit icon to view or change the settings related to the sensor. Alarms Low-Low, Low, High and High-High Alarms limits may be set. Deadband This is the Alarm Deadband. For example, if the High Alarm is 3000, and the deadband is 10, the alarm will activate at 3000 and deactivate at 2990.

  • Page 60: Orp

    Smoothing Factor Increase the smoothing factor percentage to dampen the response to changes. For example, with a 10% smoothing factor, the next reading shown will consist of an average of 10% of the previous value and 90% of the current value. Name The name used to identify the sensor may be changed.

  • Page 61: Disinfection

    Smoothing Factor Increase the smoothing factor percentage to dampen the response to changes. For example, with a 10% smoothing factor, the next reading shown will consist of an average of 10% of the previous value and 90% of the current value. Cable Length The controller automatically compensates for errors in the reading caused by varying the length of the cable.

  • Page 62: Corrosion Input

    Sensor Offset Only appears if the Electrode selection is Linear. Enter the offset of the sensor in mV if 0 mV is not equal to 0 units. For Ion Selective Electrodes, the Sensor Offset is not calculated until the first calibration is performed, and the sensor will read Zero until a calibration has been successfully completed! Low Range Enter the low end of the range of the sensor...

  • Page 63: Corrosion Imbalance Input

    Alloy Multiplier Enter the multiplier that matches the metallurgy of the electrodes connected to the sensor. Refer to the chart below. Cycle Time Select the length of the cycle time to be used. The longer cycle times provide more accurate readings but decrease the speed of response. Range Select the expected range of the corrosion rate.

  • Page 64: Transmitter Input And Ai Monitor Input

    Select AI monitor if the device connected can be calibrated on its own and the EP2100 calibration will only be in units of mA. Select Transmitter if the device connected cannot be calibrated on its own and the EP2100 will be used to calibrate in engineering units of measure.

  • Page 65: Fluorometer Input

    5.2.11 Fluorometer Input Settings Touch the Edit icon to view or change the settings related to the sensor. Alarms Low-Low, Low, High and High-High Alarms limits may be set. Deadband This is the Alarm Deadband. For example, if the High Alarm is 7.00, and the deadband is 0.1, the alarm will activate at 7.01 and deactivate at 6.90.

  • Page 66: Analog Tank Level Input

    Transmitter Select the type of transmitter connected (2-wire loop powered, 2-wire self-pow- ered, 3-wire, or 4-wire). Flow Units Select the units of measure for the water volume, between gallons, liters, cubic meters and million of gallons (MG). Rate Units Select the units of measure for the flow rate time base. Flowmeter Max Enter the flow rate at which the meter outputs a 20 mA signal.

  • Page 67: Flow Meter, Contactor Type

    Alarm & Datalog If any of the relays or digital inputs are selected, any alarms related to this input Suppression will be suppressed if the selected relay or digital input is active. At the same time, all datalogs and graphs containing the input will show no data for the duration of the activation.

  • Page 68: Feed Monitor

    4-20 mA) to validate chemical feed from any type of pump. Total Alarm The EP2100 monitors the total feed and activates a Total Alarm if the value exceeds the Totalizer Alarm set point. When used in conjunction with Scheduled Reset selections (Daily, Monthly, or Annually), this alarm can be used to alert users to situations where excess chemical product is used and/or to discontinue chemical feed if the amount exceeds the set point during the specified time period.
  • Page 69 If desired, a user can configure the feed monitor to attempt to reprime the pump when a Flow Verify alarm first is activated. The Reprime Time (MM:SS) specifies the amount of time that the output should be energized after the initiation of a Flow Verify alarm.

  • Page 70: Di Counter Input

    Dead band Enter the percent output above which the pump is considered On for monitoring of Flow Verify alarms. This setting is only available if the linked Output is a solid state (pulsing) relay or analog (4-20 mA) output. Reprime Time Time (MM:SS) that the output should be energized for the reprime event.
  • Page 71 Name The name used to identify the sensor may be changed. Type Select the type of sensor to be connected to the digital input channel. 5.2.19 Remote Modbus DI State ONLY AVAILABLE IF A MODBUS KEY FILE HAS BEEN IMPORTED AND THE COMM STATUS IN THE REMOTE COMMUNICATIONS MENU HAS BEEN SET TO MODBUS The Remote Modbus DI State input is used to simulate a switch closure by obtaining the open or closed state information from a Modbus application via Modbus TCP.

  • Page 72: Virtual Input - Calculation

    5.2.20 Virtual Input – Calculation A Calculation type Virtual Input is not a physical sensor; it is a value that is calculated from two physical sensor inputs. The analog values that can be used for each type of calculation are selected from a List of all defined sensor inputs, analog inputs, flowmeter rates, the other virtual input, solid state relay %, and analog output %.

  • Page 73: Virtual Input - Raw Value

    invalid readings, an input alarm is set and any outputs using the virtual input for control are disabled. The analog values that can be used for each type of calculation are selected from a List of all defined sensor inputs and analog inputs.

  • Page 74: Virtual Input - Disturbance

    Alarms Low-Low, Low, High and High-High Alarms limits may be set. Deadband This is the Alarm Deadband. For example, if the High Alarm is 7.00, and the deadband is 0.10, the alarm will activate at 7.01 and deactivate at 6.90. Alarm &...

  • Page 75: Remote Modbus Sensor Virtual Input

    Min Disturbance Enter the value of the disturbance input where the value of the calculated multiplier will be the Value at Min Disturbance value (set below). Max Disturbance Enter the value of the disturbance input where the value of the calculated multiplier will be the Value at Max Disturbance (set below).

  • Page 76: Outputs Menu

    Reply Timeout Client mode only. Enter the number of seconds to wait before retrying if no data is received. Function Client mode only. Select the Modbus function that the controller will use to read data. Remote Register Client mode only. Enter the register that contains the desired data. Update Period Client mode only.

  • Page 77: Relay Or Control Outputs, On/Off Control Mode

    5.3.2 Relay or Control Outputs, On/Off Control Mode Output Details The details for this type of output include the relay on/off state, HOA mode or Interlock status, accumulated on-time, alarms related to this output, current cycle on time, relay type and the current control mode setting. Settings Touch the Edit icon to view or change the settings related to the relay.

  • Page 78: Relay Or Control Outputs, Bleed And Feed Control Mode

    Daily Max Time Enter the maximum amount of accumulated on-time, in Hand or Auto modes, that the relay can have between midnight and midnight the next day. If the time is exceeded, the relay will deactivate, and a Daily Max Timeout alarm will be triggered. The alarm will clear, and relay allowed to reactivate at midnight the next day.

  • Page 79: Relay Or Control Outputs, Percent Timer Control Mode

    Daily Max Time Enter the maximum amount of accumulated on-time, in Hand or Auto modes, that the relay can have between midnight and midnight the next day. If the time is exceeded, the relay will deactivate, and a Daily Max Timeout alarm will be triggered. The alarm will clear, and relay allowed to reactivate at midnight the next day.

  • Page 80: Relay Or Control Outputs, Alarm Output Mode

    “Activate With” Conditions “Activate with channels” settings override the relay control, but do not change the operation of the timers or related bleed control. The biocide timer continues counting biocide add time when the biocide relay is forced on, and ends at the expected time (biocide event start time plus duration). If the “activate with” condition continues after the end of the biocide feed time, the relay remains activated.

  • Page 81: Relay Or Control Outputs, Time Proportional Control Mode

    Settings Touch the Edit icon to view or change the settings related to the relay. Alarm Mode Select the alarm conditions that will put the relay into the alarm state: All Alarms Selected Alarms On Delay Time Enter the delay time for relay activation in hours:minutes:seconds. Set the time to 00:00:00 to immediately activate the relay.

  • Page 82: Relay, Manual Mode

    The relay goes through a sequence of activation/deactivation as described below. The intended purpose of this algorithm is boiler blowdown. A sample cannot be supplied to the sensor continuously in many boilers because a recirculating loop is not possible, and it would be a waste of hot water to constantly run a sample to a drain. A valve is opened intermittently to supply a sample to the sensor.

  • Page 83: Relay Or Control Outputs, Pulse Proportional Control Mode

    Settings Touch the Edit icon to view or change the settings related to the relay. A Manual relay will activate if the HOA mode is Hand, or if it is Activated With another channel. On Delay Time Enter the delay time for relay activation in hours:minutes:seconds. Set the time to 00:00:00 to immediately activate the relay.
  • Page 84 Parameter Description Units Gain unitless Integral Time seconds or seconds/repeat Derivative Time seconds de(t) Output (%) = K e(t) + e(t)dt + T Parameter Description Units e(t) Current Error % of full scale Delta Time Between Readings seconds de(t) Difference Between Current Error & Previous Error % of full scale Parallel The parallel form allows the user to enter all parameters as Gains.
  • Page 85 by default). This condition is referred to as Control Wind-Up and can result severe overshoot or undershoot after a prolonged upset has ended. For example, if the process value remains far below the set point despite a control output being pinned at 100%, the Current Integral will continue to accumulate errors (wind-up).

  • Page 86: Relay Or Control Outputs, Dual Set Point Mode

    Input Minimum The low end of the sensor input range, used to normalize errors into percent of full scale units. These values are set to the nominal range of the selected input sensor by default. Input Maximum The high end of the sensor input range, used to normalize errors into percent of full scale units.

  • Page 87: Relay Or Control Outputs, Probe Wash Control Mode

    Special Condition Handling Overlapping timer events If a second timer event occurs while the first one is still active, the second event will be ignored. An Event Skipped alarm will be set. Interlock Conditions Interlocks override the relay control, but do not change the operation of the timer control. A digital input or output interlock condition does not delay the relay activation.
  • Page 88 Special Condition Handling Overlapping timer events If a second timer event occurs while the first one is still active, the second event will be ignored. An Event Skipped alarm will be set. Interlock Conditions Interlocks override the relay control, but do not change the operation of the timer control. A digital input or output interlock condition does not delay the relay activation.

  • Page 89: Relay Or Control Outputs, Spike Control Mode

    Hold Time Enter the amount of time needed to hold the sensor reading after the event has finished, in order for the wash solution to be replaced by process solution. 5.3.17 Relay or Control Outputs, Spike Control Mode Basic Timer Operation This algorithm is typically used to provide a baseline amount of chlorine for disinfection, and periodically shocking the system with a larger dose.

  • Page 90: Relay Or Control Outputs Output, Flow Proportional Mode

    Onset Time The onset time determines when the duration timer starts. If set to zero, the dura- tion time starts immediately. If set higher than that, the controller will not start the duration timer until the spike set point is achieved, or until the onset time is over, whichever comes first.

  • Page 91: Relay Or Control Outputs, Target Ppm Control Mode

    Control Operation If the output is continuously on for longer than the Output Time Limit, then output will deactivate. Output Details The details for this type of output include the output %, HOA mode or Interlock status, alarms related to this output, flow input value, current cycle on time, total accumulated on-time, raw pulse rate output, and the current control mode setting.

  • Page 92: Relay, Ppm By Volume Control Mode

    Settings Touch the Edit icon to view or change the settings related to the relay Target Enter the desired PPM set point for the product. Pump Capacity Enter the maximum flow rate for the metering pump. Pump Setting Enter the stroke length setting for the metering pump, in percent. Specific Gravity Enter the specific gravity of the product to be added.

  • Page 93: Relay, Counter Timer Control Mode

    equal to the value set for the Accumulator Volume, the relay activates for the calculated number of pulses from the feed monitor, and the accumulated total is reduced by the accumulator volume amount. If the trigger volume is achieved again before the activation time has expired, the newly calculated feed monitor pulses per unit volume are added to the remaining number.

  • Page 94: Relay Or Control Outputs, On/Off Disturbance Control Mode

    Daily Max Time Enter the maximum amount of accumulated on-time, in Hand or Auto modes, that the relay can have between midnight and midnight the next day. If the time is exceeded, the relay will deactivate, and a Daily Max Timeout alarm will be triggered. The alarm will clear, and relay allowed to reactivate at midnight the next day.

  • Page 95: Relay Or Control Outputs, Volumetric Blending Control Mode

    Daily Max Time Enter the maximum amount of accumulated on-time, in Hand or Auto modes, that the relay can have between midnight and midnight the next day. If the time is exceeded, the relay will deactivate, and a Daily Max Timeout alarm will be triggered. The alarm will clear, and relay allowed to reactivate at midnight the next day.

  • Page 96: Relay Or Control Outputs, Boolean Logic Control Mode

    output, relay type, and the current control mode setting. Settings Touch the Edit icon to view or change the settings related to the relay. On Switch Select the digital input or output that will trigger the relay to activate. Activate On Select the state of the digital input or output that will trigger the relay to activate.

  • Page 97: Relay Or Analog Output, Lag Control Mode

    Off Delay Time Enter the delay time for relay deactivation in hours:minutes:seconds. Set the time to 00:00:00 to immediately deactivate the relay. Alarm Select if activation or deactivation of the Boolean Logic output should produce an alarm or not. Daily Max Time Enter the maximum amount of accumulated on-time, in Hand or Auto modes, that the relay can have between midnight and midnight the next day.
  • Page 98 Switch change (for example, energize a second pump to maintain a tank level when the low-low level switch opens Control Operation Backup Pump Control The default control operation for the Lead Lag group is that if a condition exists that prevents one relay from being activated, it is skipped and the next output in the group is turned on instead.
  • Page 99 When the Lead control mode (R1) determines the output should be activated, R2 turns on because it has the lowest accumulated on-time. After 2 hours, if the output remains activated, the on-times are re evaluated and R2 turns off and R1 turns on because it now has the least accumulated total on time. The cycle continues until the Lead control mode determines the feed is complete.
  • Page 100 in the Lead Lag group are evaluated individually and outputs are added as needed based on the current process value. Setpoint based activation mode also incorporates time based activation and can also be configured to trigger an additional pump (if available) after a specified delay time. This menu selection is available only when the Lead output is using On/Off or Dual Setpoint control modes.
  • Page 101 band of 0.20. Time unbalanced (60/40) wear leveling is selected with a cycle time of 15 minutes. When the pH goes above 8.50, the on-times for each pump are evaluated. If R1 has been on less than 80% of the total time for the two pumps, it is energized.
  • Page 102 Set point This setting only appears if the control mode of the Lead output is On/Off or Dual Setpoint and the Activation Mode above is Setpoint Based. Enter the process value for the input assigned to the Lead output that will trigger an additional output to activate.

  • Page 103: Relay Or Control Outputs, Flow Meter Ratio Control Mode

    Off Mode Output This menu only appears for analog output Lead outputs.Enter the output mA value de- sired for each output in the group when the output is in Off mode, or being Interlocked, or during a calibration of the sensor being used as an input. The acceptable range is 0 to 21 mA.

  • Page 104: Relay Or Analog Or Control Outputs, Disturbance Variable Control Mode

    Daily Max Time Enter the maximum amount of accumulated on-time, in Hand or Auto modes, that the relay can have between midnight and midnight the next day. If the time is exceeded, the relay will deactivate, and a Daily Max Timeout alarm will be triggered. The alarm will clear, and relay allowed to reactivate at midnight the next day.

  • Page 105: Analog Or Control Outputs, Proportional Control Mode

    Maximum Rate Only for pulse outputs. Enter the maximum pulse rate that the metering pump is designed to accept (10 - 360 pulse/minute range). Error Output Only for analog outputs. Enter the output mA desired when the sensor is not giving the controller a valid signal.

  • Page 106: Analog Or Control Outputs, Pid Control Mode

    % output = Target PPM x Water Flow Rate (liter/min or gal/min) Cycles x Pump Rating (liter or gal/hr) x Pump Setting (%) x Speci c Gravity x 166.67 % output = Target PPM x Water Flow Rate (m ⁄min) Cycles x Pump Rating (liter/hr) x Pump Setting (%) x Speci c Gravity x 0.16667 Control Operation If the output is continuously on for longer than the Output Time Limit, then output will deactivate.
  • Page 107 PID Equation Formats The controller supports two different forms of the PID equation as specified by the Gain Form setting. The two forms require different units for entry of the PID tuning parameters. Standard The standard form is more commonly used in industry because its time-based settings for the integral and deriva- tive coefficients are more meaningful.
  • Page 108 Wind-up Suppression The Current Integral value that is accumulating while the output is set to Auto can become very large or very small if the process value remains on the same side of the set point for a prolonged period of time. However, the control- ler may not be able to continue to respond if its output is already set to the minimum or maximum limits (0-100% by default).

  • Page 109: Analog Output, Manual Mode

    Off Mode Output Enter the output mA value desired when the output is in Off mode, or being Inter- locked, or if the Output Time Limit has expired, or during a calibration of the sensor being used as an input. Also if there is a Probe Wash programmed for the sensor, and the Sensor Mode option is set to Disable the output during the Wash cycle (if the Sen- sor Mode option is set to Hold the output holds its last setting and the Integral is not updated during the Wash).

  • Page 110: Security Settings

    Name Enter the name to help identify the controller when it connects to Fluent. Location Enter the location to help identify the controller when it connects to Fluent. Global Units Select the units to be used for cable length and wire gauge settings, metric or Imperial. Temperature Units Select between Fahrenheit and Celsius.
  • Page 111 DNS Name Only appears if Webserver Mode is HTTPS and Default Cert is selected. The network IT administrator can map the controller numeric IP to a domain name, which reduces the warning messages that occur when a self-signed certificate is detect- ed by the browser.

  • Page 112: Ethernet Details

    Fluent Alarm Delay Enter the time delay for Fluent connection alarms Reply Timeout Enter the maximum time allowed for Fluent to respond. 5.4.4 Ethernet Details The Ethernet Details are for information only and display the Ethernet settings currently in use, and the recent history of the Fluent connection.

  • Page 113: Wifi Details

    DHCP Setting Infrastructure Mode. Enable to allow the controller to obtain its IP address and other network settings from the LAN or disable to enter this information manually. Controller IP Address Infrastructure Mode. Only appears if a Dual WiFi/Ethernet type WiFi card is installed, and the DHCP Setting is set to Disabled.

  • Page 114: Remote Communications (Modbus And Bacnet)

    Network Netmask Displays the netmask address that the controller is currently using. Network Gateway Displays the gateway address that the controller is currently using. Security Protocol Displays the security protocol that the controller is currently using. DNS Server Displays the DNS server address that the controller is currently using BSSID/MAC Address Displays the BSSID/MAC address of the WiFi board.
  • Page 115 Repetition Only appears if Report Type is Datalog, Graph or Summary. Select how frequently to repeat sending the report: None, Hourly, Daily, Weekly or Monthly. Reports Per Day Only appears if Report Type is Datalog, Graph or Summary. Only appears if the repetition is set to Hourly. Select the number of reports per day: 2, 3, 4, 6, 8, 12 or 24.

  • Page 116: Display Settings

    Send Email Test Report Enter this menu and confirm to send the test Summary report to the selected test report recipients. 5.4.9 Display Settings Edit Home Screen The Home screen view can be customized to show the desired parameters, in any order, Layout in cards that can be adjusted to the desired size.

  • Page 117: Controller Details

    Log Frequency Select the amount of time between data points. The amount of time allowed varies with the Data Log Range. If the Data Log Range is selected as Since Previous download, the choices for frequency of data points will be limited by how far back in time the last download occurred.

  • Page 118: Hoa Menu

    Controller Board Displays the part number and revision of the front panel circuit board Software Version Displays the software version on the controller board Power Board Displays the part number and revision of the power/relay board Relay Board #1-3 Displays the part number and revision of field-configurable relay modules, if present Sensor Board #1 - #4 Displays the part number and revision of the I/O boards (One entry for each board installed, up to 4)

  • Page 119: Graph Menu

    Graph Menu The Graph Menu is used to display a graph containing two sensor or analog input values plus one digital input or relay state. Touch the Graph icon and the controller will display “Generating Graph Please Stand By” for a few seconds then show the graph.

  • Page 120: Operation Using Ethernet

    8 hours 2 minutes Weekly 1 day 6 minutes Weekly 2 ½ day 15 minutes Monthly 5 days 30 minutes Monthly 1 week 45 minutes Monthly 2 weeks 90 minutes Monthly 4 week 3 hours Monthly 6.0 OPERATION using Ethernet All of the same settings that are available using the touchscreen are also available using a browser that is connected to the controller’s Ethernet IP address.

  • Page 121: Navigating The Web

    names and passwords can and should be changed by browsing to the Config menu, Security Settings webpage. Log into the page using the current Admin level username and password, then change to new ones. Navigating the web pages From any computer that is directly connected to the controller, or is on the same network as the controller, open a brows- er and type the numeric Controller IP address in the web page address field.

  • Page 122: Software Upgrade

    The graphs will display the parameter’s data in 360 data points, equally spread over the time range, in a blue line. For analog inputs and outputs, the minimum value, maximum value, and average value over that same time range are also displayed and graphed in a yellow line.

  • Page 123: Maintenance

    For input types using automatic temperature compensation, the temperature reading will be displayed until the reading is stable and then move to the next step without any action required. If successful, the calibration gain or offset will be displayed. Click Save to accept the new value or Cancel to retain the previous calibration.

  • Page 124: Replacing The Fuse Protecting Powered Relays

    7.2 Replacing the Fuse Protecting Powered Relays CAUTION: Disconnect power to the controller before opening front panel! Locate the fuse on the circuit board at the back of the controller enclosure under the plastic safety cover. Gently remove the old fuse from its retaining clip and discard. Press the new fuse into the clip, secure the front panel of the controller and return power to the unit.

  • Page 125: Electrodeless Conductivity Sensors

    Incorrect cable length or wire gauge setting Set to the correct values Faulty electrode Replace electrode 8.1.2 Electrodeless Conductivity Sensors The calibration will fail if the adjustment to the gain is outside of 0.2 to 10, or the offset is outside of -10,000 to 10,000.

  • Page 126: Analog Inputs

    Faulty membrane Replace membrane cap. High Pressure Reduce pressure to below 1 atmosphere and refill cap with electrolyte No electrolyte fill solution in membrane cap Fill membrane cap with electrolyte. Replace membrane cap if it will not hold solution. Improper wiring of sensor to controller Correct wiring Faulty sensor Replace sensor...
  • Page 127 Control output has been left in “HAND” mode. Switch back to “AUTO”. It may be a normal part of the process. None required. LOW or LOW-LOW ALARM Occurs if the sensor reading drops below the low alarm set points. If your unit is programmed for an alarm relay output, the alarm relay will activate.
  • Page 128 Blown fuse Verify the pump is getting power. Replace fuse Faulty output relay Replace relay board Faulty digital input Verify that feed monitoring device is making contact closures using an ohmmeter. If OK, and connected properly, replace the controller circuit board. OUTPUT TIMEOUT This error condition will stop control.
  • Page 129 SYSTEM TEMP LOW This alarm indicates that the temperature inside the controller is below -10 °C. Possible Cause Correction Action Low ambient temperatures Provide heat for the controller SYSTEM TEMP HIGH This alarm indicates that the temperature of the controller or sensor processor IC is above 75 °C, or that the temperature of the Ethernet card processor IC is above 85 °C.
  • Page 130 Faulty wiring of output to pump Correct wiring Faulty output board Repair or replace board Faulty digital input Replace board CONTROLLER, POWER, DISPLAY, OR SENSOR BOARD ERROR This alarm occurs if the board listed is not recognized Possible Cause Correction Action Poor ribbon cable connection Remove and reseat ribbon cable, cycle power Poor option card connection...

  • Page 131: Procedure For Evaluation Of Conductivity Electrode

    REPLACE ELECTRODES Occurs if the user has set an Electrode Alarm and the number of days selected since the last time “Replace Corrosion Electrode” has been confirmed has passed. Possible Cause Corrective Action The Electrode Alarm timer has expired Replace the electrodes and then confirm in the Replace Corrosion Electrode menu WiFi MODULE FAILURE The WiFi module is not responding...

  • Page 132: Procedure For Evaluation Of The Ph/Orp Electrode

    Procedure for Evaluation of the pH/ORP Electrode The most common cause of a calibration failure is an electrode problem. First try cleaning the electrode, then retry the calibration. If this fails again, replace the electrode and retry the calibration. The next most common problem is wet or poor connections. Check the connection of the electrode to the cable for moisture.
  • Page 133 CONTROLLER BOARD D7 LED Indicates the status of the 5VDC power supply. Normal operation is ON. If not on: Possible Cause Correction Action Faulty ribbon cable Replace ribbon cable Faulty power supply Replace power supply CONTROLLER BOARD D5 LED Indicates the status of the 3.3VDC power supply. Normal operation is ON. If not on: Possible Cause Correction Action Faulty ribbon cable...

  • Page 134: Service Policy

    If a controller is not functioning properly, circuit boards may be available for exchange after the problem has been isolated. Pulse Instruments will provide a Return Material Authorization (RMA) number for any products being returned to the factory for repair. Repairs are generally completed in less than one week.

Table of Contents
