A m e r i c a n C h a n g e r
TH
1400 NW 65
Place ♦ Ft. Lauderdale, FL 33309

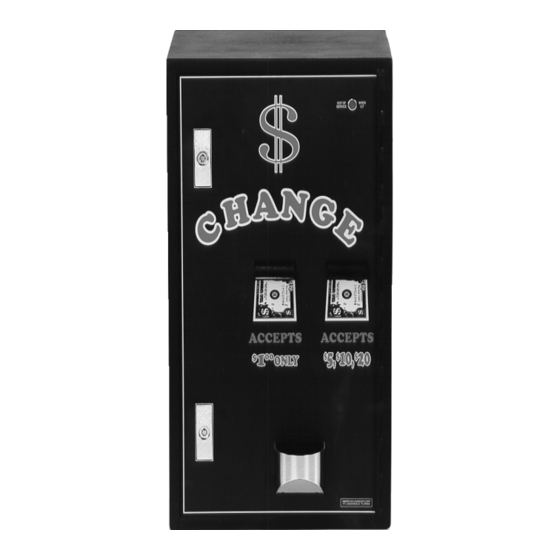

CLASSIC SERIES – CHANGER
OPERATIONS MANUAL
MODELS AC2002/2002.1
ARL Listed STD: UL 756
Parts & Service: (888)741-9840
Service Fax: (954)917-5204
Sales: (800)741-9840
To order parts only, visit our website:
www.americanchanger.com
Service Questions? E-mail:
service@americanchanger.com
Revised October 2009
Advertisement
Table of Contents
Troubleshooting
Related Manuals for American Changer CLASSIC Series
Summary of Contents for American Changer CLASSIC Series
- Page 1 A m e r i c a n C h a n g e r 1400 NW 65 Place ♦ Ft. Lauderdale, FL 33309 CLASSIC SERIES – CHANGER OPERATIONS MANUAL MODELS AC2002/2002.1 ARL Listed STD: UL 756 Parts & Service: (888)741-9840...
- Page 2 Model Number: ________________________ Serial Number: ________________________ Tested By: ________________________ Date: ________________________...
- Page 3 Specifications Operating voltage 120VAC +10% to -15% Power consumption Controller only: 10W Operating temperature 32 - 130 degrees Fahrenheit Interface to hoppers 24VDC & 12VDC, 1.5 amps max. Interface to validators 120VAC, .5 amps max. Hopper coin capacity 100/hopper minimum to 2,800/hopper maximum (5,600 total) Warranty Information A Return Material Authorization number (RMA #) must be obtained...
-
Page 4: Table Of Contents
Table of Contents SECTION A: SET-UP & INSTALLATION Setup ..........Mounting Instructions . -
Page 5: Section A: Set-Up & Installation
This ID # starts with “AC or ACC ####.” CELLULAR WIRELESS CREDIT CARD SYSTEM (optional) This feature is an optional add-on for most American Changer models. A separate maintenance manual is included in your packet. -
Page 6: Filling The Hoppers
Choose a height to mount the changer, keeping in mind that a handicapped person in a wheelchair should still be able to insert a bill into the bill validator. (We recommend no higher than 4 feet above the ground.) Have someone hold the changer against the wall while someone else marks the holes. CAUTION: THE CHANGER WEIGHS 98 POUNDS;... -
Page 7: Using The Dump Mode To Empty The Hoppers
SWITCHES BILL METER 0 00 0 1 EPROM DUMP CHIP BUTTON VALIDATOR CONNECTOR HOPPERS HARNESS CONNECTORS PRIMARY 1 2 3 4 5 6 7 8 2½ AMP Figure 2 FUSE This is not the dip switch bank for ON/OFF setting the bill denominations. SWITCH (For those dip switches, refer to your validator manual.) -
Page 8: Hopper Payout Table
HOPPER PAYOUT TABLE... -
Page 10: How To Use The Bonus Table
How to Use the Bonus Table Think of the bonus table as the total amount of EXTRA tokens that you wish to receive after the regular payout: EXAMPLE: PAYOUT – 4 tokens for $1; 24 tokens for $5; 52 tokens for $10; 120 tokens for $20 24 tokens = $1 extra in tokens 52 tokens... -
Page 11: Fuse
Fuse High voltage fuse: This is the primary transformer AC fuse for the main logic board and the validator. Any direct short of the transformer or validator will cause this fuse to blow. Replace this fuse with a 2½ amp AS fuse only. -
Page 12: Hopper Coin/Token Sizes & General Information
Hopper Coin/Token Sizes & General Information The hopper will automatically adjust to dispense coins/tokens in size from 20-30 mm in diameter and 1.25-3.5 mm in thickness. Hopper coin bin (Dump the coins into this hole; 1600 coin max.) Coin counting optic 12-pin female connector (located in rear of hopper) Motor... -
Page 13: Main Logic Board Connector Pin Definitions
Main Logic Board Connector Pin Definitions MDB Validator Harness: Connector J12 Pin #1 - +24 VDC Pin #2 - Ground Pin #3 - Data Pin, Master Transmit Pin #4 - Data Pin, Master Receive ccTalk Device Harnesses: Left Side (Single Hopper) – J3 Right Side –... -
Page 14: Functional Descriptions Of Out-Of-Service Conditions
At this point, the three options open are to attempt repair on your own, call your distributor, or return the defective hopper to American Changer. b. Indications for a blocked coin optic or bad hopper logic board are that the out-of-service LED on the outside of the changer is lit and the red LED on the main logic board is lit and flickers off once per second. -
Page 15: Quick Code Error Definitions
b. Check continuity (0 ohms) and resistance from pins 3 (white) and 10 (black) of the red hopper harnesses. Make sure both hoppers are full and the changer is turned off. If the continuity is 0 ohms, replace the main logic board. Pull the hoppers out of the changer, then look at the 12-pin black male connector that sticks out of the hoppers. -
Page 16: Dual Hopper Schematics
Dual Hopper Schematics... -
Page 20: Section B: Troubleshooting Information
SECTION B TROUBLESHOOTING INFORMATION TECHNICAL FLOW DIAGRAM SERIES NOTE: Before starting this procedure ensure the changer is plugged in, the ON/OFF switch is on, the hoppers are full of coins, and all wire harnesses are connected securely and correctly. The wires exiting the red connectors should point away from the board!! PRESS AND HOLD THE IS THE "DUMP BUTTON "... -
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE To use the Troubleshooting Guide, match up the problem, then follow the solution suggestions. After every step, try operating the changer to see if the problem has been solved. PROBLEM: SOLUTION: A. The changer is completely dead. (The Ensure the changer is plugged in. - Page 22 The bill validator red status LED flashes a kit instructions. “5” error code. Ensure that all the wire harness plugs are plugged firmly into their white female sockets. Contact American Changer technical service (888-741- 9840) to repair your bill validator.
- Page 23 Concentrate on the encoder wheel in the area top center behind the push bar. Contact American Changer technical service (888-741-9840) to repair your bill validator. K. The bill validators red status LED is on steady, Pull out the lower housing (see validator manual) and look for something obstructing the bill path.
-
Page 24: Maintenance Information
Maintenance Information A full-size version of the cleaning kit instructions is included in your information packet. -
Page 25: Section C: Parts List
SECTION C PARTS LIST (AC2002.1 SINGLE VALIDATOR SHOWN) PARTS LIST FOR THE AC2002/2002.1 CHANGER AC2012 CABINET AC1013-M COIN CUP 2012-30 LOCK BRACKET ASSY. COMPLETE AC1047 ACC HOPPER AC1047-H MONEY CONTROLS HOPPER PLATES W/FEMALE PLUG & HARNESS AC2061 MAIN LOGIC BOARD AC2083 TWO VALIDATOR LEXAN FRONT AC5080...
