Solax Pocket LAN 2.0
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pocket LAN 2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for SolaX Power Pocket LAN 2.0

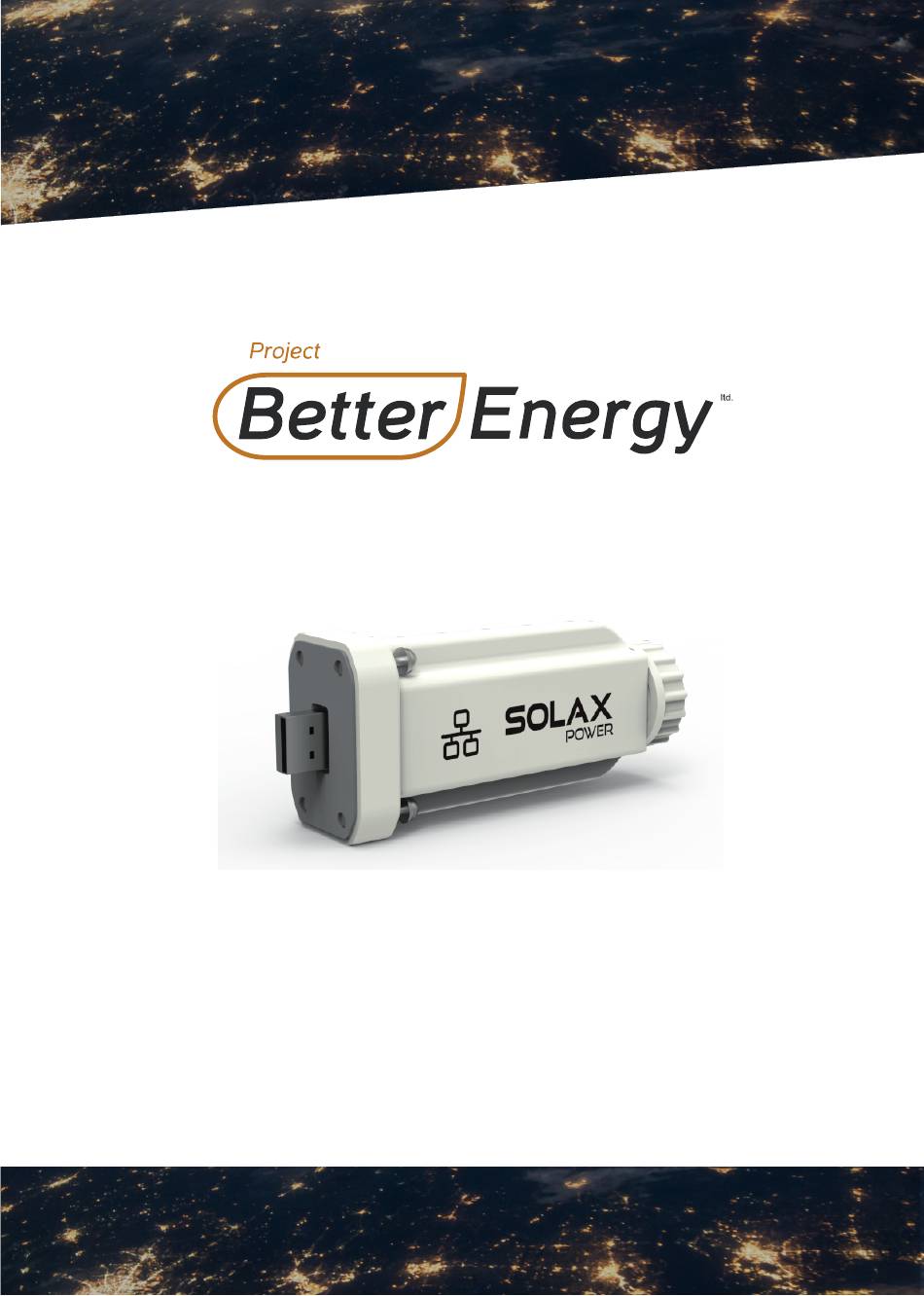

  • Page 1 Solax Pocket LAN 2.0 User Manual...
  • Page 2 1. Screw off three components on the bottom of the Pocket LAN 2.0, insert the Internet cable and then make the RJ45 Port for the cable as below. Tighten those components. Note: Please use the STANDARD internet cable...
  • Page 3 2. Insert the Pocket LAN 2.0 into “WiFi” port or “WiFi/Lan/GPRS” port on the bottom of inverter. -Please make sure all power has been turned off at least 5 minutes before the Installation. -Please don't insert the Pocket LAN 2.0 into “RF” port or...
  • Page 4 3. Connect the other side of the network cable to the home router. And make sure the home router works in good condition.
  • Page 5 4. Please choose your prefer device (eg. PC/Laptop) for the following settings. Step 1: Confirm Pocket LAN 2.0 has been installed successfully, and make sure Internet service is accessible. Step2: Enter the URL "https://www.solaxcloud.com"in the browser. Step3: Choose “English” and click “Create a New Account” .
  • Page 6 Step 4: After saving the registration, pop up “Add Site” window automatically. Fill in the parameters, the items with "*" are required, and click “save” to finish. Step 5: Please refresh the web-page, and make sure the user name,password and verification code has been input correctly.
  • Page 7 Site Editing 1. Click the "Sites" on the left menu bar. Choose the site you want to edit and click “+” to edit. 2. Edit the information that you want to change, and click “save”. New site Adding Click the ‘Sites’ on the left menu bar. Click ‘Add’ and refer to ‘Site Editing’ to complete the operation.
  • Page 8 New Inverter Adding Under The Same Site Click the "Sites" on the left menu bar. Choose the site, then click ”+”add a new inverter. Input ‘Registration Number’, click ‘+’ to add and click ‘save’ to finish. Notes - The signal strength will be affected by the distance between inverter and home router. - Please make sure that home router is operating properly.
  • Page 9 Pocket LAN 2.0 makes the monitoring of PV systems feasible and efficient by collecting information from inverter including status, performance and updating information to monitoring website. - Quick installation with "Plug & Play" function - IP 65 dust prevention water proofing design...
  • Page 10: Safety Instructions

    Safety Instructions - Before installation, all power of inverter must be cut off. - Keep away from ammable, explosive materials. - Do not dismantle or scrap by force. - Children should be supervised to ensure that they do not play with this appliance. Warranty Regulation and Liability Terms and conditions SolaX grants a warranty of 12 months as standard.
