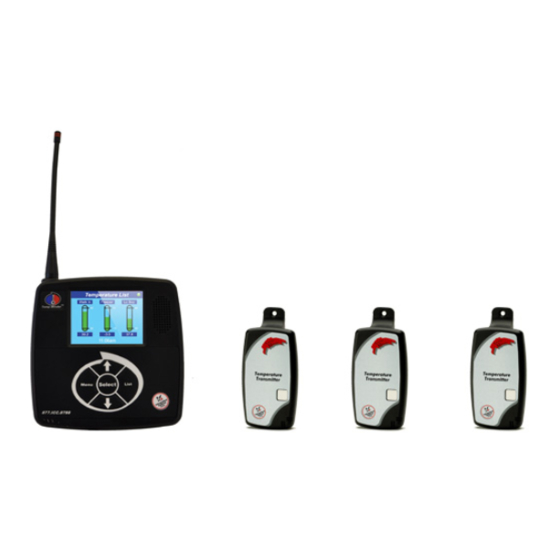

- Page 1 Temp Minder Color ™ Installation Manual Changes Or Modifications Not Expressly Approved By The Party Responsible For Compliance Could Void The User’s Authority To Operate The Equipment...
- Page 2 1 – 8’ Cat5 Cable 1 – AC-DC Power Supply 1 – Power Over Ethernet Adapter (POE) Mounting Hardware 2 – Mounting the Temp Minder Color Display Control box The Temp Minder display box should be mounted in a location that is ™...
- Page 3 1. Connect the cables using the wiring diagram below. After connecting the cables use the provided cable clamps to secure the cables. Back of Display unit Power Over Ethernet (POE) Adapter 8’ Cat5 Cable 25’ Cat5 Cable To Internet Connection Power Supply Note: If the order came with a repeater, DO NOT use the power supply labeled...
- Page 4 1. Mount the transmitter in the device to be monitored using the ICC provided zip tie, velcro or screw. The optimal mounting is to zip tie the transmitter to the existing shelving (as shown in the photo on the right) towards the side so the transmitter cannot be obstructed by product.
- Page 5 A long range repeater can be used for temperature transmitters that are more than 100’ away from the display control box. Rather than mounting several repeaters to transmit the signal back to the display control, one set of long range repeaters may be mounted (one within 20 feet of the temperature transmitter(s) and one within 20 feet of the display control).
- Page 6 Limited Factory Warranty Integrated Control Corp. (ICC) warrants the products listed below that it manufactures and distributes (the “Products”) to be free from defects in materials and workmanship, under normal use and service, for periods as stated starting on installation or first data transmission.
