- Page 1 eSports interface PRODUCT DETAILS 6 BROOKS PLACE, MAIDSTONE, KENT, ME141HE. ENGLAND. TEL: +44 (0) 1622 753662 Visit our website at www.glensound.com FAX: +44 (0) 1622 762330...
- Page 2 Glensound Electronics Ltd Thank you for choosing a new Glensound product. All rights reserved. Information contained in this manual is subject to change without notice, if in doubt please contact us for the latest product information. If you need any help with your product then we can be contacted at: Glensound Electronics Ltd 1 –...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This symbol is intended to highlight that This symbol is intended to warn that there are important operating & dangerous voltages within the product are maintenance instructions in the literature present and constitute a risk of electric accompanying this unit. -
Page 4: Product Warranty
PRODUCT WARRANTY All equipment is fully tested before dispatch and carefully designed to provide you with trouble free use for many years. We have a policy of supporting products for as long as possible and guarantee to be able to support your product for a minimum of 10 years. For a period of one year after the goods have been despatched the Company will guarantee the goods against any defect developing after proper use providing such defects arise solely from faulty materials or workmanship and... - Page 5 EU DECLARATION OF CONFORMITY eSports interface This declaration of conformity is issued under the sole responsibility of the manufacturer. This equipment is manufactured by Glensound Electronics Ltd of Brooks Place Maidstone Kent ME14 1HE is marked and conforms to the following Union harmonisation legislation: Emissions: BS EN55032:2015...
-
Page 6: Rohs Directive
RoHS DIRECTIVE RoHS 2 Directive 2011/65/EU restricts the use of the hazardous substances listed below in electrical and electronic equipment. This product conforms to the above directive and for these purposes, the maximum concentration values of the restricted substances by weight in homogenous materials are: Lead 0.1%... -
Page 7: Waste Electrical And Electronic Equipment Regulations 2006 (Weee)
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT REGULATIONS 2006 (WEEE) Glensound Electronics Ltd is registered for business to business sales of WEEE in the UK our registration number is: WEE/JJ0074UR Page 7 of 39... -
Page 8: Table Of Contents
GLENSOUND GTM Handbook Contents Description Issue 1.0 31/08/22 Page No. Contents IMPORTANT SAFETY INSTRUCTIONS ................3 PRODUCT WARRANTY ...................... 4 ............................ 5 RoHS DIRECTIVE......................... 6 WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT REGULATIONS 2006 (WEEE) ..7 Handbook Contents ......................8 Overview ........................... 10 GTM Top Panel Layout .................... - Page 9 Optional SDI Interface ..................... 21 De-embedding ............................21 Embedding ..............................21 Connecting The GTM To A Dante Network ..............22 Getting Dante Controller ........................22 Connecting GTM device to the network ..................22 Audio Over IP Network .......................... 22 Running Dante Controller ........................23 Dante Controller TIP ..........................
-
Page 10: Overview
Overview The GTM combines the multiple functions required for the interfacing and communications in eSports tournaments into one simple to use device. GTM provides the interface for the gamers, provides the intercom mix, and allows remote control by tournament engineers. There are separate modes that also mean the GTM can be used by the Coaches, Referees, and arena Announcers. -
Page 11: Gtm Top Panel Layout
The GTM has a customisable team comms mix over Dante where up to 6 other players can be brought into the unit and mixed together and listened to via the Team encoder. There are also extra inputs for coaches, referees or auxiliary audio channels. These... -
Page 12: Talk Button
Pressing the button sends the microphone audio to Dante channel 2. Mic metering This 5-point LED meter shows the users post gain mic level to allow for easy mic gain adjustment. The scale is in dBu. The meter is always on, even if the Me or Talk buttons are not active. -

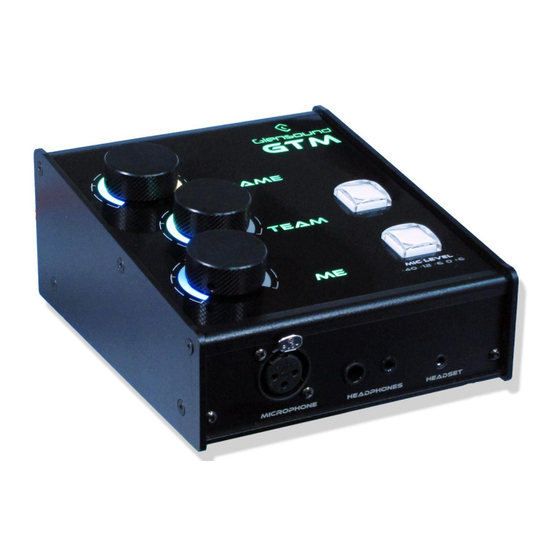

Page 13: Gtm Front Panel Layout
GTM Front Panel Layout XLR Microphone input TRRS Headset Headphone output XLR Microphone input This standard 3 pin XLR is the input of the user’s microphone. +48V phantom power can be enabled or disabled for use with condenser microphones using rear panel controls or via GlenController. -
Page 14: Gtm Rear Panel Layout
GTM Rear Panel Layout Mic gain control Game source Mic selection selection Identify / SDI interface Update button Network RJ45 etherCON USB-C connector GPIO DC loops Stereo Aux input TOSLINK connector Mic selection & Mic gain control Here the active Microphone input can be chosen between the XLR and TRRS headset inputs. -
Page 15: Network Rj45 Ethercon
Network RJ45 etherCON Primary and Secondary 1Gbps ethernet IP interfaces allow connection to a Dante network. The GTM can operate in full redundant mode or in switched mode for daisy- chaining network devices. The amber LED indicates network activity. Both connectors are Neutrik etherCON which allow locking connections with a compatible etherCON cable. -
Page 16: Audio Block Diagram
Audio Block Diagram Page 16 of 39... -
Page 17: Usb Audio
USB Audio The GTM supports bi-directional USB audio on PC and Mac and will appear as both a USB microphone and as USB stereo speakers. We recommend setting the Windows volume control of the microphone to 62% to ensure a 1-to-1 Mic gain level, any higher and windows will add artificial gain which is not optimal to achieve the best noise performance. -
Page 18: Device Roles
Device roles The GTM has three different modes of operation: Player (default), Coach and Referee. The currently selected role is denoted by the GTM top panel led lighting: Player Green Coach Yellow Referee Magenta As of GTM firmware version 0.2.12 the functionality of the device roles has yet to be implemented, but it is intended to provide methods of automatically controlling things such as audio routing, automatic white noise generation, attention indication and game phase management. -
Page 19: Additional Features
Additional features Noise generator The GTM has two independent headphone output circuits via the headphone jack and TRRS headset jack. The GTM also has a built-in white noise generator. This means that the GTM supports the use of IEMs and over ear headsets all in one device. The white noise can be configured to be present on the disused interface i.e. -
Page 20: Hidden Features
Hidden Features The following controls are all configurable with GlenController. Update button key combinations: Update + Mic Gain Up + Mic Gain Down - Factory reset Update + Game encoder switch - Role select Update + rotate a knob - Pan function Factory reset It restores the unit settings to the factory defaults and clears the remote access password. -
Page 21: Optional Sdi Interface
Optional SDI Interface The GTM supports de-embedding and embedding audio from/to an SDI video feed. The GTM can support speeds of 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s, and 270Mb/s and is compliant to SMPTE ST 425 (Level A and Level B), SMPTE ST 424, SMPTE 292 and SMPTE ST 259-C. The SDI input supports typical equalized length of Belden 1694A cable up to: 200m at 2.97Gb/s 280m at 1.485Gb/s... -
Page 22: Connecting The Gtm To A Dante Network
Getting Dante Controller If you are connecting the GTM to a new Dante network the first thing you will need to do is to get the free Dante controller software from Audinate. This can be downloaded by visiting Audinate’s web site at www.audinate.com... -
Page 23: Running Dante Controller
If you have never run Dante controller before then make sure that on the bottom left of the Dante controllers’ screen ‘P’ or ‘S’ is next to a green square as this indicates that it is connected to a network. By clicking ‘P’ or ‘S’ a pop up box opens to allow you to set what network interface the controller is using. -
Page 24: Device Not Showing Up In Dante Controller
Device not showing up in Dante Controller If your Dante device does not show up in Dante Controller then the most likely issue is that the device’s IP Address is not appropriate for your network. A) It maybe that the device is set to obtain an IP address automatically using DHCP (this is the default configuration) and your network is setup for fixed IP addresses only and does not have a DHCP server. -
Page 25: Aes67 Mode
If you want to use your GTM on an AES67 network and it has not been set to AES67 mode then this can be set in Dante controller by double clicking the GTM to open the Device View window where you will find an AES67 tab to enable AES67 support. -
Page 26: Receiving Aes67 Audio
Once set the flows can be seen in the transmit tab of the device view. Receiving AES67 Audio Once a compatible AES67 stream is detected on the network by Dante Controller the AES67 flows will appear in the Dante Transmitters section in the Routing tab. -
Page 27: Aes67 Restrictions
• L16 or L24 encoding • 125usec, 250usec, 333usec, 1 msec packet time • Up to 8 channels per stream The GTM also supports SMPTE-ST2110-30 via Dante Domain Manager (DDM), with a licesnse purchased from Audinate. Page 27 of 39... -
Page 28: Glensound Controller
Glensound Controller Glensound Controller is a windows 10 & 11 application that allows remote control of some Glensound products over a network. The GTM has full remote-control functionality and can be operated from a remote location with only a windows PC and access to the network the GTM is on. -
Page 29: Using The App With The Gtm
Using the app with the GTM Main view HP Settings view HP output Game mix settings settings Programme Team mix output to settings headphones meter Talk settings Game, Team, Me Game mix volume meter and stereo panning Team mix control meter Speak Disable... - Page 30 Talk Settings view Game Mix Settings view Mute other speak Button behaviour Game Disable Game Game Pre-pot Post-pot button when active setting source source source source game game selection selection stereo volume level level switch panning control metering metering on the unit Page 30 of 39...
- Page 31 Team Mix Settings view Post-pots team mix level metering Team channel Pre-pot team volume control channel input metering Team channel stereo panning Go to https://www.glensound.co.uk/product-details/glencontroller/ and check the ‘Useful Videos’ tab for informative YouTube tutorials on how to use other features of Glensound Controller. Page 31 of 39...
-
Page 32: Saving And Loading Presets
Saving and loading presets Glensound controller allows saving and loading of ‘Presets’ which is a saved copy of the configured settings of the GTM. Type a name Preset for your saved to preset Click the page preset list Saving icon to open Preset the Presets menu... -
Page 33: Updating Firmware
Updating Firmware The GTM microcontroller code is the main firmware that operates the device. It can be updated via GlenController over an IP network. Make sure your PC is connected to the same network and can see the GTM in GlenController. You may need internet access for GlenController to automatically obtain the latest code from the database. - Page 34 Click start to begin updating Update progression bar Update finished, device will now restart automatically Page 34 of 39...
-
Page 35: Updating The Dante Firmware
If you want to update devices on a Dante network that is not connected to the Internet, you can download the files ahead of time to your computer, move the computer to the offline network, and then update the devices using the downloaded files. - Page 36 Caution! Audio will be interrupted during the device update B. Press update device A. Tick box to confirm Update is in progress A. Update finished. B. Press Tick box to continue reboot device Update finished, device will now reboot Page 36 of 39...
-
Page 37: Gtm Dc Loop I/O
GTM DC Loop I/O Pin 1 - Input: parallel with Talk pushbutton Pin 2 - Output: parallel with Talk button LED Pin 3 - Input: parallel with Talk 2 pushbutton Pin 4 - Output: parallel with Talk 2 button LED Pin 5 - Input: white noise on/off: Low = noise OFF, High (or not connected) = noise... -
Page 38: Wiring Information
Wiring Information XLR & Jack Wiring STANDARD XLR AUDIO PINOUTS: 1: Ground/ Earth 2: INPHASE/ POSITIVE/ MIC + 3: MATE/ NEGATIVE/ MIC - XLR SOCKET (FEMALE) STANDARD HEADPHONE WIRING: TIP: A/ LEFT Ear RING: B/ RIGHT Ear SLEEVE: Ground / Earth TRRS HEADSET WIRING CTIA (GTM standard) T: A/ LEFT Ear... -
Page 39: Optional 5 Or 4 Pin Xlr Wiring Information
Optional 5 Or 4 Pin XLR Wiring Information 5 PIN XLR AUDIO PINOUTS: Female XLR fitted to GTM, mates with cable mounted male 1: MATE/ NEGATIVE/ MIC - 2: INPHASE/ POSITIVE/ MIC + 3: GROUND/ EARTH 4: HEADPHONE LEFT 5: HEADPHONE RIGHT 4 PIN XLR AUDIO PINOUTS: Male XLR fitted to GTM, mates with cable mounted female...
