User manual
document version 1.0 for FW from 1.0
DALIrsw

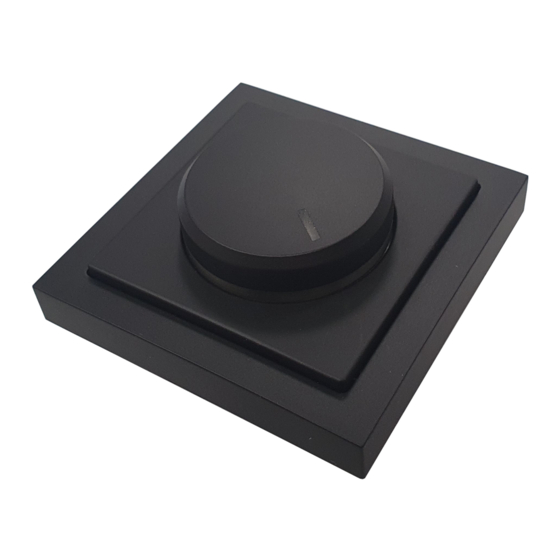

Universal DALI rotary switch
Infinite rotation and press
Control groups, addresses or
broadcast
Powered from the DALI bus
Led indicator
Optional backlight
Installation in the KU68 box
Compatible with ABB cover lines*
*Covers are not included
www.foxtron.eu
1
Advertisement
Table of Contents
Summary of Contents for Foxtron DALIrsw
- Page 1 User manual document version 1.0 for FW from 1.0 DALIrsw Universal DALI rotary switch Infinite rotation and press Control groups, addresses or broadcast Powered from the DALI bus Led indicator Optional backlight Installation in the KU68 box Compatible with ABB cover lines* *Covers are not included www.foxtron.eu...
- Page 2 DALIrsw data Clamp connection designation description DA/DA sběrnice DALI, dva vodiče vzájemně záměnné Backilight The backlight switch allows you to optionally turn on the soft backlight of the DALIrsw fingerboard to make the button easier to find at night. www.foxtron.eu...
- Page 3 DALI2net converter. Extended functions - DALI2+ The DALIrsw rotary switch can directly control the lights on the DALI bus. Depending on the settings, the control can be broadcast, group or directly to one address. One of two modes Last value or Preset value with slightly different functionality can be set for control.
- Page 4 For proper operation, it is necessary to set the value of the Min level minimum lighting level, which is set in the ballast. For proper operation, it is necessary to set the value of the Max level maximum lighting level, which is set in the headlights. www.foxtron.eu...
- Page 5 Dimmensions [in mm] backlight DALIrsw data phone: +420 226 522 222 e-mail: info@foxtron.cz web: www.foxtron.cz www.foxtron.eu...
