SMART AIR QP Lite Quick Start Manual

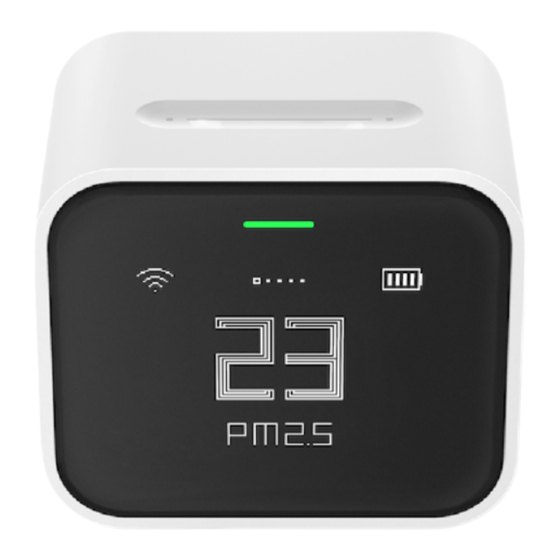

QP Lite Air Quality Monitor
The QP Lite comes with a USB-C charging cable, you will need to add your own 5v/1A
power adapter plug to charge from a socket

Switching on

• The first time you switch it on, plug into a power adapter and charge – ideally
overnight (ensure temperature isn't above 40 degrees when charging)
• From screensaver – long press the on/off button at the back

Switching off

•
Press the power button at the back to switch the screen off (battery saver)
•
Long press the power button to turn the device off

First time set-up

•
Download Qingping+ app onto your phone (you need the app to change the
device settings). Open the Qingping+ app, select the + button
o Find and select the QP Lite monitor
o Select 'Yes' for bluetooth
o Select QP Protocol
•
Press and hold the concave bar at the top of your monitor for about 8 seconds until
a large Wi-Fi icon appears on the screen
•
Assuming you are connected to Wi-Fi on your phone, the app should ask you to
name this monitor then proceed to add it to the dashboard (you can add as many
devices as you like to this dashboard)
•
Click on the settings using the 'tools' icon on the top right:
o Check the 'Firmware Update' to see if you have the latest version of the
software. If not, update (note that the firmware is regularly updated so it is
good practice to check you always have the latest version)
o Reset the CO2 sensors – you will need to place the device outside for
around 12 minutes as it will use the more consistent outdoor level as a
baseline
•
You can also use the settings to set up your temperature unit (F or C) and other
screen saver options

Using the device
