Table of contents Introduction ......................... 3 Important notes ......................3 Operating elements and components ................4 Installation ........................5 Connecting the handpiece (PX65 and PX65L only): ..........5 Inserting the tool: ....................5 Connection of the foot switch (optional): ..............5 ... -
Page 3: Introduction
Introduction We are pleased that you have chosen our product PODIASPRAY. In order to use the device in a proper and safe manner it is important that you read these operating instructions carefully prior using the device for the first time. PODIASPRAY is a compact foot care device for the spray technique which is based on state-of-the-art technology. -
Page 4: Operating Elements And Components

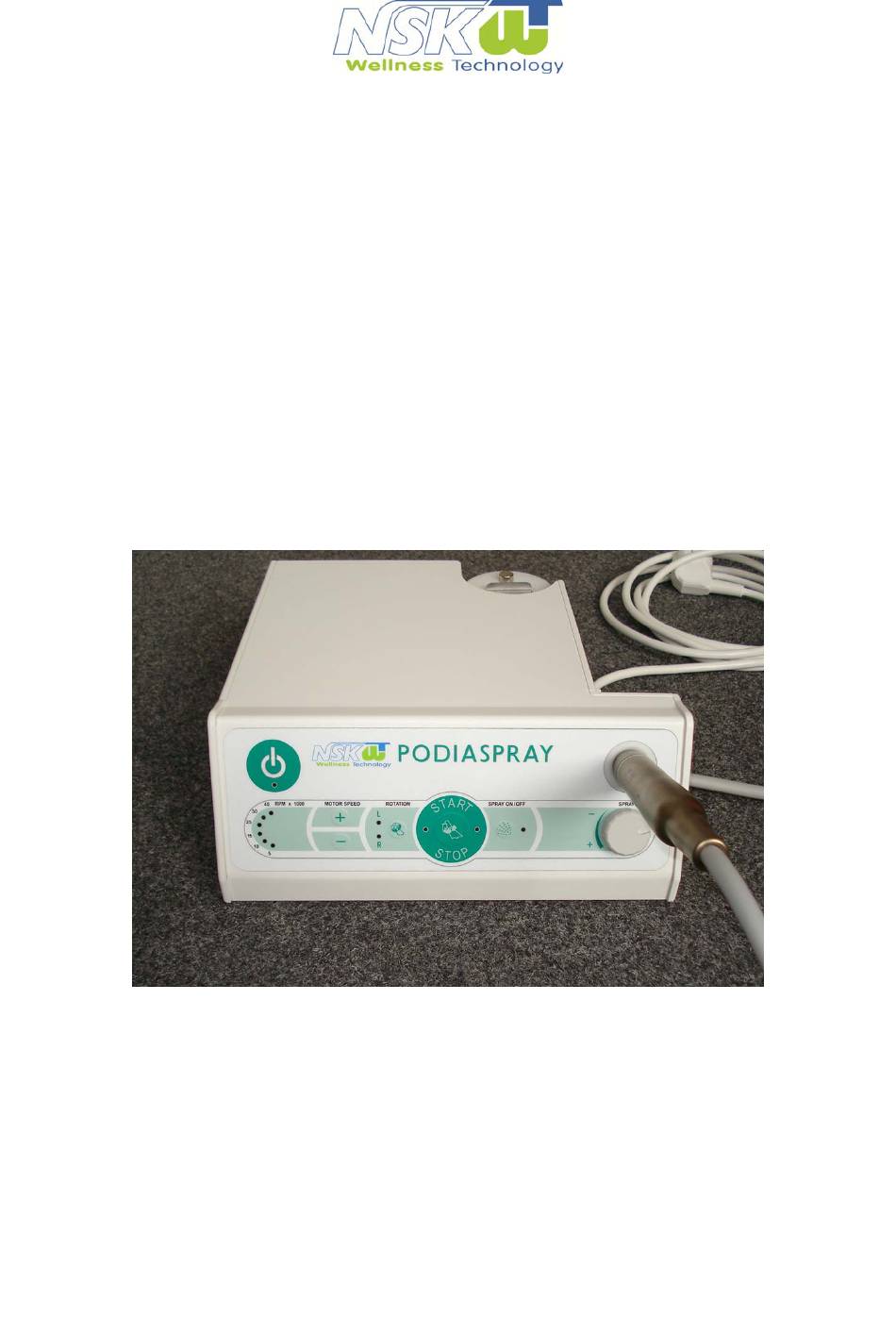

Operating elements and components picture 1 Main switch Water tank Front panel Hand-piece On/Off switch (stand-by) additional to main switch on the right side Start/Stop pushbutton for the speed of the tool (ROTATION) LED’s for speed setting Speed control (rotation) + = Increase speed –... -
Page 5: Installation
Installation Connecting the handpiece (PX65 and PX65L only): To connect the handpiece and motor, align the positioning marks of the motor and the handpiece and insert straightly. This procedure will also align the light receptagle and allow you to use illumination if your handpiece and motor are equipped for illumination. -
Page 6: Warranty
Warranty The term of the warranty for PODIASPRAY amounts to 1 year, except wearing parts such as bearings, carbon brushes, dust bag and seals. The warranty extended for a period of another 500 operating hours up to a maximum of 1 year, if the recommended maintenance of the device was done in time. -
Page 7: Operation
Operation Switching on the device: Switch on the main switch on the right side of the device. After that press the Power On/Off pushbutton (5) on the Front panel to switch on the device. The LED’s (7) show now the basic setting regarding the speed and the rotating direction of the grinder is illuminated. -
Page 8: Tool Change (Pd30, Pododent 1 And Pdl40 Handpieces Only)
Tool change (PD30, Pododent 1 and PDL40 handpieces only): In order to change the tool, the speed has to be switched off. Press the Start/Stop pushbutton (6) to that end. Wait until the tool stops. Pull out the tool and insert a new one afterwards. The tool has to be pushed into the tool holding fixture until the stop point in order to prevent any loosening during operation. -
Page 9: General Care, Maintenance And Repair
General care, maintenance and repair Have your PODIASPRAY checked once a year! Cleaning the device Caution! Always pull the mains plug before cleaning the device. Risk of electric shock! Clean the housing (incl. the hand-piece and the hose) with a damp (but not wet) cloth. Do not use any cleaning agents which contain alcohol or solvents or which are aggressive. -
Page 10: Disinfection, Cleaning And Storing The Tools
Insert the spray nozzle in the rear of the handpiece and spray approximately 2-3 seconds until the oil comes out of the handpiece nose. Caution! Be sure to hold the handpiece firmly to prevent the handpiece from slipping out by the spray pressure when lubrication. -
Page 11: Maintenance
Maintenance It is recommended that the PODIASPRAY is serviced in accordance with the intervals specified. Maintenance of the handpiece every 250 hours of operation Maintenance of the device every 500 hours of operation Maintenance and repair may only be carried out by authorised skilled staff of the manufacturer. Unauthorised persons are not permitted to open the device under any circumstances. -
Page 12: Technical Data
Technical data Product number: Operating voltage: 230 V ~ / 50/60 Hz or 100/110 V ~ / 50/60 Hz Power consumption: 140 W Speed: 5000 – 40000 rev./min Safety fuse: 2 x 1.6 A T or 2 x 3,15 A (110 V) Protection class: Ambient conditions: temperature between 10 °C and 30 °C... -
Page 13: Declaration Of Conformity
Declaration of Conformity in accordance with the EU-Directives for Electromagnetic Compatibility Directive 89/336/EEC + Modification Low Voltage Directive 73/23/EEC + Modification Manufacturer: NSK Wellness Technology GmbH Address: Portitzer Strasse 69 d D-04425 Taucha Germany We certifies that the product Purpose of equipment:...
