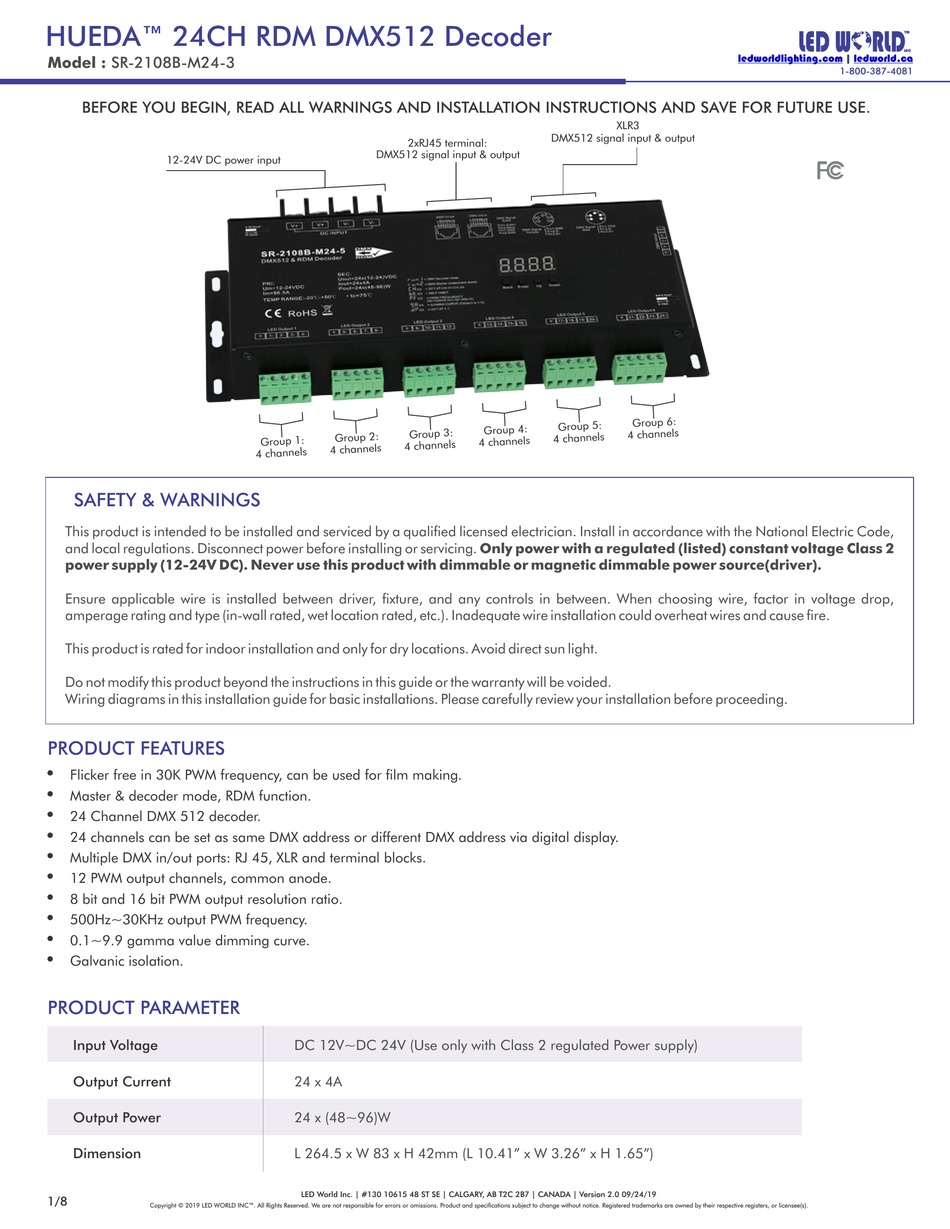

LED World HUEDA SR-2108B-M24-3 Manual

HUEDA™ 24CH RDM DMX512 Decoder
Model : SR-2108B-M24-3
BEFORE YOU BEGIN, READ ALL WARNINGS AND INSTALLATION INSTRUCTIONS AND SAVE FOR FUTURE USE.
12-24V DC power input
SAFETY & WARNINGS
This product is intended to be installed and serviced by a qualied licensed electrician. Install in accordance with the National Electric Code,
and local regulations. Disconnect power before installing or servicing. Only power with a regulated (listed) constant voltage Class 2
power supply (12-24V DC). Never use this product with dimmable or magnetic dimmable power source(driver).
Ensure applicable wire is installed between driver, xture, and any controls in between. When choosing wire, factor in voltage drop,
amperage rating and type (in-wall rated, wet location rated, etc.). Inadequate wire installation could overheat wires and cause re.
This product is rated for indoor installation and only for dry locations. Avoid direct sun light.
Do not modify this product beyond the instructions in this guide or the warranty will be voided.
Wiring diagrams in this installation guide for basic installations. Please carefully review your installation before proceeding.
PRODUCT FEATURES
Ÿ
Flicker free in 30K PWM frequency, can be used for lm making.
Ÿ
Master & decoder mode, RDM function.
Ÿ
24 Channel DMX 512 decoder.
Ÿ
24 channels can be set as same DMX address or different DMX address via digital display.
Ÿ
Multiple DMX in/out ports: RJ 45, XLR and terminal blocks.
Ÿ
12 PWM output channels, common anode.
Ÿ
8 bit and 16 bit PWM output resolution ratio.
Ÿ
500Hz~30KHz output PWM frequency.
Ÿ
0.1~9.9 gamma value dimming curve.
Ÿ
Galvanic isolation.
PRODUCT PARAMETER
Input Voltage
Output Current
Output Power
Dimension
1/8
Copyright © 2019 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
2xRJ45 terminal:
DMX512 signal input & output
DC 12V~DC 24V (Use only with Class 2 regulated Power supply)
24 x 4A
24 x (48~96)W
L 264.5 x W 83 x H 42mm (L 10.41" x W 3.26" x H 1.65")
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 2.0 09/24/19
XLR3
DMX512 signal input & output
ledworldlighting.com ledworld.ca |
1-800-387-4081
