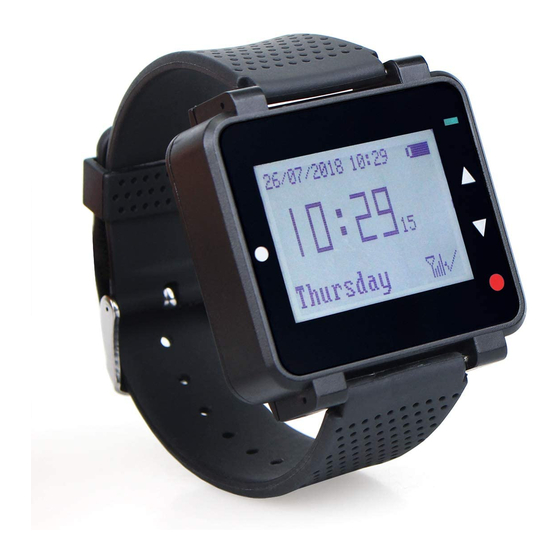

Retekess T128 User Manual

Watch receiver
Hide thumbs Also See for T128:

Advertisement

Quick Links

Download this manual
28/07/2020
00
Saturday
T128
Watch Receiver
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the T128 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Retekess T128

Summary of Contents for Retekess T128

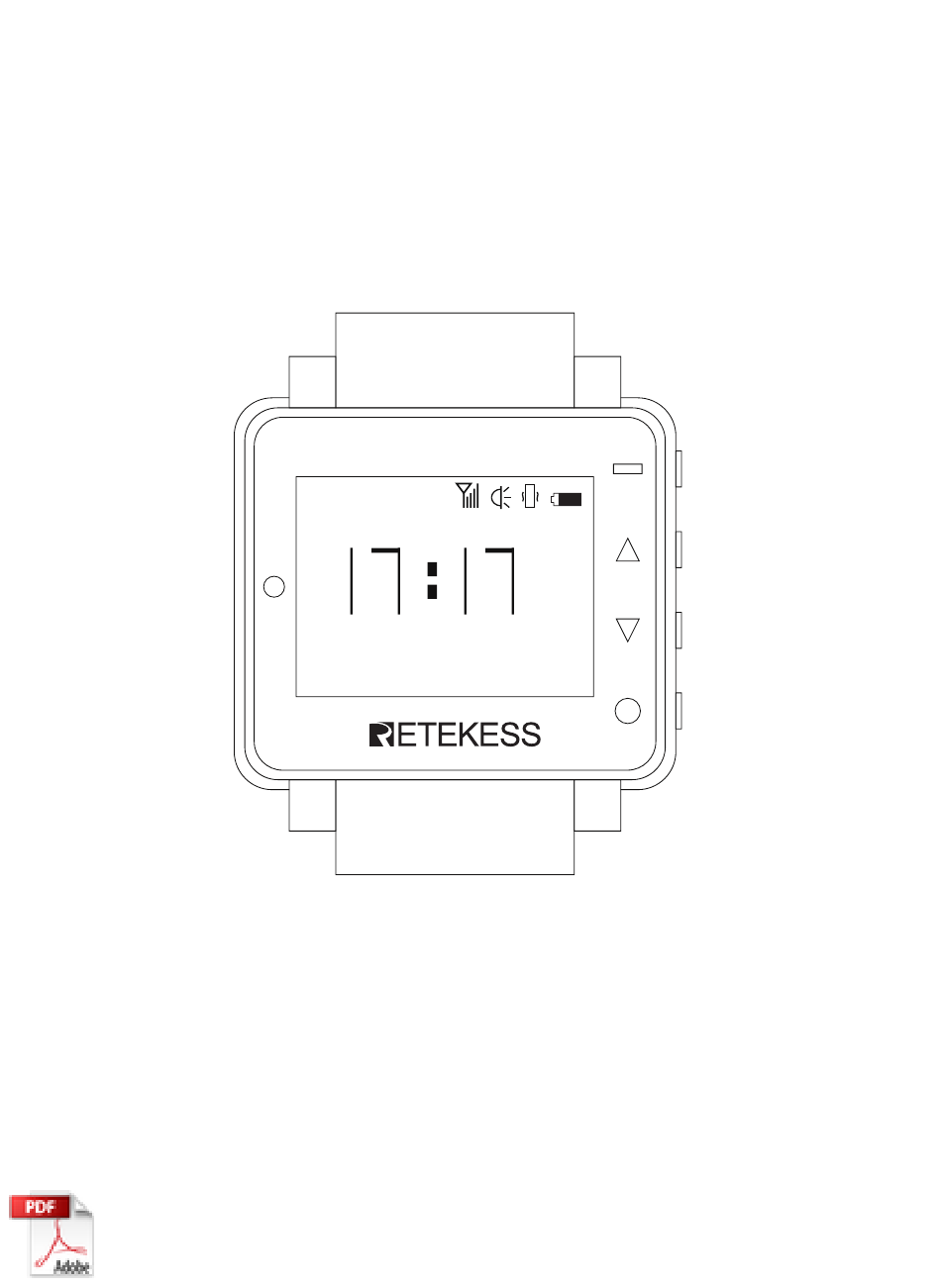

  • Page 1 28/07/2020 Saturday T128 Watch Receiver User Manual...

  • Page 2: Key Features

    Preface Thank you for choosing the Retekess T128 Watch Recei- ver! This unit integrates wireless transmission technology, digital recognizer, dot matrix LCD display and microproce- ssor to realize time display and wireless calling functions. The pager with removable rechargeable batteries, has a long standby time and safe charging circuit.

  • Page 3: Location And Controls

    Location and Controls 28/07/2020 Saturday 1. Menu/OK button, long press the button for about 2 se- conds to enter the main menu interface or short press to enter the next submenu. 2. UP button, short press to move up the menu or increase the parameter value.

  • Page 4: Lcd Display Instruction

    LCD Display Instruction 1. Standby Status Signal Power capacity Date & Time 28/07/2020 LED Indicator Vibration Week Saturday Volume Power/Data port (back side) 2. Call Status Times 28/07/2020 Current call button ID Calling time 02:47:54 0001 02:47:50 0002 Service type Order...
  • Page 5 Display content: Current call button ID, Calling time, Times and Service type. Check call information: Press UP/DOWN button to check the call history. Cancel calling information: Select the call information you want to remove, press the OK or Exit button to remove the information from the displayed list.
  • Page 6 e.g, choose "0001", and press call key from call button. After successful registration, the number will automatically show “0002”. Then you can register the next call button. Repeated registration of the same call button will appear "DONE" on the display since only one number can be re- gistered per call button.
  • Page 7 ·Key Function Set Areas and Service Types according to the needs. ·Area Setting Set the service type corresponding to each key on the call button in each area. (The first letter of the registered ID indicates the area value) 1. Press Menu button for 2s to enter Menu list and press Up/Down button to select Key Function.
  • Page 8 2. Press Menu to enter the sub-menu, "Area Setting" and "Type Setting" shows on the display. 3. Press Up/Down buttons to select Type Setting, then press Menu button to confirm. 4. Press Up/Down buttons to select the service type to be modified, press Menu button to confirm.
  • Page 9 2. Press Menu to enter the sub-menu, "Live View" (the latest call information is displayed at the top of the list) and "Queue View" (the first received call information is displayed at the top of the list) shows on the display. 3.
  • Page 10 Note: The default setting is 0, it means none of the call information will be removed automatically. If you set it to other values, the call information will be removed automa- tically from the call information list after the specific time. ·Cycle Time Setting 1.
  • Page 11 ·Date Format Setting 1. Press Menu button for 2s to enter Menu list and press Up/Down button to select Date Format. 2. Press Menu to enter the sub-menu. 3. Press Up/Down to select the format from 1 to 5, then short press Menu to confirm.
  • Page 12 ·Vibration Setting 1. Press Menu button for 2s to enter Menu list and press Up/Down button to select Vibration. 2. Press Menu to enter the sub-menu. 3. Press Up/Down to select the vibration level from 0 to 4, then short press Menu to confirm. 4.

  • Page 13: Package Includes

    ·Signal 1.Press Exit/Back button for 2s to enter Menu list and press Up/Down button to select Signal. 2.Press Menu button to enter the sub-menu. 3.Press Up/Down buttons to select ON or Off. 4.Press Exit/Back button twice, back to standby mode. ·Power Off 1.Press Exit/Back button for 2s to enter Menu list.
  • Page 14 (RF) spectrum to provide communications be- tween two or more users over a distance. RF energy, which when used improperly, can cause biological damage. All Retekess radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recom- mend specific operating instructions to users of the radios.
  • Page 15 Your Retekess radio has a RF Exposure Product Label. Also, your Retekess user manual, or separate safety booklet includes informa- tion and operating instructions required to control your RF exposure and to satisfy compliance requirements. Radio License (if appropriate)
  • Page 16 Replacement of any transmitter component (crystal, semi- conductor, etc.) not authorized by the local government radio management departments equipment authorization for this radio could violate the rules. FCC Requirements: •This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 17 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU; the full text of the EU decla- ration of conformity is available at the following internet address: www.retekess.com. •Disposal The crossed-out wheeled-bin symbol on your product, literature, or packaging reminds you that in the European...
  • Page 18 (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage;...
  • Page 19 holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. •DO NOT operate the transmitter in areas that are sensi- tive to electromagnetic radiation such as hospitals, aircraft, and blasting sites.
  • Page 20 manently affect your hearing. The louder the radio's volume, the less time is required before your hearing could be affected. Hearing damage from loud noise is sometimes undetectable at first and can have a cumulative effect. Avoid Burns Antennas • Do not use any portable radio that has a damaged antenna.
  • Page 21 •Pull by the plug rather than the cord when discon- necting the charger. •Unplug the charger from the AC outlet before attempting any maintenance or cleaning. •Contact Retekess for assistance regarding repairs and service. •The adapter shall be installed near the equipment and shall be easily accessible.
  • Page 22 Use of WARNING other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations. • For a list of Retekess-approved accessories for your radio model, visit the following website: http://www.Retekess.com EU Importer： Name：Germany Retevis Technology GmbH...
  • Page 23 Guarantee Model Number: Serial Number: Purchasing Date: Dealer: Telephone: User’s Name: Telephone: Country: Address: Post Code: Email: Remarks: 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. 3.The user can get warranty and after-sales service as below: •Contact the seller where you buy.
  • Page 24 MADE IN CHINA Henan Eshow Electronic Commerce Co., Ltd Add: 7/F, Sanjiang Building, No.170 Nanyang Road, Huiji District, Zhengzhou, Henan, China Facebook: facebook.com/Retekess E-mail: support@retekess.com Web: www.retekess.com...
  • Page 25 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
