Model Numbers:
BVS-30W
BVS-40W
BVS-50W
Important Precautions:
The Basement Ventilation System is fully functional right out of
the box. THE FAN WILL BEGIN TO OPERATE ONCE THE PANEL IS
CONNECTED TO THE BASEMENT SYSTEM. PLEASE KEEP HANDS
AND TOOLS AWAY FROM THE BLADE DURING THE INSTALLATION.
Helpful Hints:
• When determining the location of the solar panel, try to face the
panel towards the equator (South in the Northern Hemisphere or
North in the Southern Hemisphere).
• Avoid potential problems such as shading from large objects,
large trees, or other houses which may cause shading during
certain times of the day.
• WARNING: Avoid all contact with the blades. Even a small
bend in the blades can cause severe vibration & premature motor
failure.

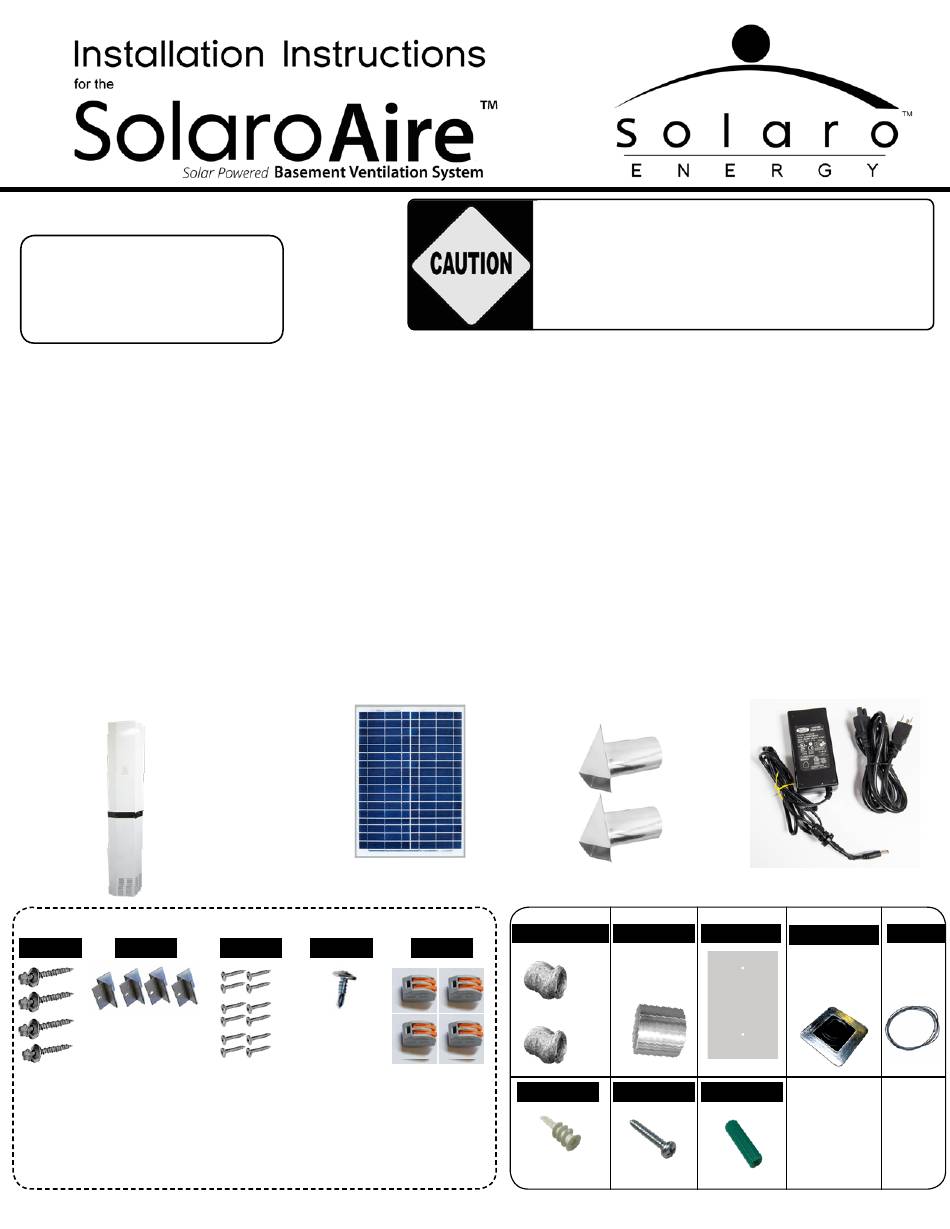

Components & Parts List:
Basement Ventilation Unit
A.
Basement System Install Pack
A-BRT4
F-030
• F-030: (4) 1.5" Dual thread rubber washer screw
• A-BRT4: (4) Solar Feet
• F-016: (12) 1.25" self tapping philips truss head screws
• F-018: (36) .5" self drilling philips truss head screw
(20 Black, 16 white)
• E-CNR: (4) Wago Connectors
B.
Solar Panel
F-016
F-018
WARNING: Take caution during installation. Please
read through ENTIRE packet before performing
any work. Not following the instructions can void
the warranty and/or cause serious injury. For
professional help, please call 1-888-355-5SUN
• Do not cut any structural members in the house
• Always measure twice and cut once.
• Installation of the Basement System should be located in the
basement of the building.
• Take precaution while installing the panel on the roof
Tools Needed:
• Drill
• Measuring Tape
• Pencil
• Utility Knife
C.
Exhaust Ports
E.
Material Included with Kit
2 - 6" Flexible Duct
E-CNR
Each duct is 10 ft. long
Drywall Anchor
(12)
• Safety Goggles
• Caulk/Caulking Gun
• Wire Cutter
• Wire Strippers
Aluminum Tape
Template
Rubber Grommet
Screw #25310
Wall Anchor
(12)
(8)
D
Power Supply
50ft. Cable
Pre-attached
Advertisement
Summary of Contents for Solaro Energy SolaroAire BVS-30W
- Page 1 Model Numbers: WARNING: Take caution during installation. Please BVS-30W read through ENTIRE packet before performing any work. Not following the instructions can void BVS-40W the warranty and/or cause serious injury. For BVS-50W professional help, please call 1-888-355-5SUN Important Precautions: • Do not cut any structural members in the house The Basement Ventilation System is fully functional right out of •...
- Page 2 Installation: Please allow up to an hour for installation. Components and hardware are referenced in each step to the corresponding letters on the parts list. (See components and parts list). NOTE: Most rafters are spaced between 16” (41cm) to 24”(60.96cm) on center. Best performance will be achieved by placing the basement ventilation system in the basement.
- Page 3 Step 2: Mount upper baseplate Align upper and lower baseplate • • Follow steps of steps 4 Step 3: Drill Holes for exhaust ducts • Place guide plate in the center of the desired exhaust location (Fig. 3.1) • Drill pilot holes •...
- Page 4 Install solar panel on shingle roof Step 1: Positioning solar panel feet on solar panel • Place a mark (using a pencil or sharpie) 4” (101.6 mm) from edge at all four corners. (Fig. 1.1) • Gripper pad on the bracket (A-BRT4) will be pointed away from back of the panel.
- Page 5 Step 4: Run the wire down the house or building • Use staples or anchors to secure the cable that is wired from the solar panel to the fan housing in the crawl space Step 6: Attach lower face plate •...
- Page 6 Step 7: Wire Assembly • Using wago attach solar panel ground wire to the motor • Following tags on switch, use wagos to attach motor positive, panel positive, and dc power positive to switch Step 8: Attach upper faceplate • Align holes (Fig. 8.1) •...
-
Page 7: How It Works
How it works: Solar Panel 25ft. Cable Exiting Air Circulating Air Incoming air from outside or other parts of the home... - Page 8 Aire™ system (s). Implied warranty of merchantability and fitness for a particular purpose are limited to the terms of this warranty. Solaro Energy Inc. provides a Limited Lifetime Warranty on all parts and mechanisms on all of its Solaro Aire™ system (s) and to be free of defects in material and workmanship.
