Summary of Contents for ARMOUR PEDALSTATION JNR

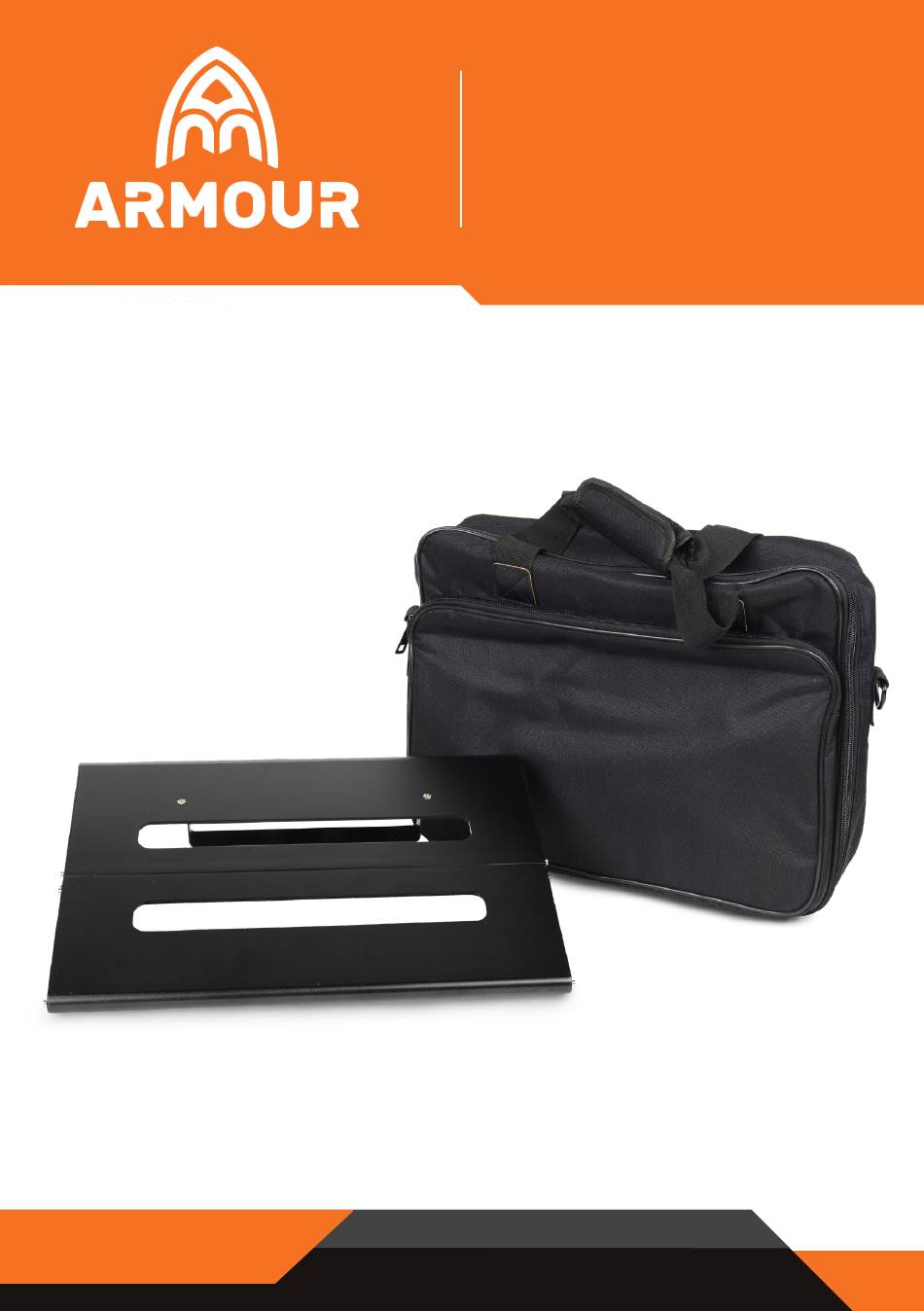

- Page 1 PEDALSTATION JNR USER MANUAL...
- Page 2 INFORMATION FOR YOUR SAFETY When using any electronic product basic precautions should always be followed, including the following: 1. Read all the safety and installation instructions, explanations of graphic symbols and set-up/controls before using any product. 2. This product must be earthed if using a power supply. In the unlikely event of malfunction or breakdown, grounding provides a path of least resistance for an electric current, which reduces the risk of electric shock.
- Page 3 IMPORTANT NOTE: To reduce the risk related to the correct and normal use of the product, all Armour products are accurately tested in a safety laboratory. Do not modify the present unit, the safety standard and the instrument’s performance could be compromised, and as a further consequence the warranty will be revoked.
- Page 4 PEDALSTATION JNR USER MANUAL INDEX Parts ..................................1 Specifications ............................... 2 Assembling the Pedalstation .........................3...
- Page 5 PEDALSTATION JNR USER MANUAL PARTS The Armour Pedalstation JNR is designed with the ability to use it as either a simple 4-pedal board, or as an extended 8-pedal board. The Pedalstation has 5 parts: Faceplate A, Faceplate B, Connector C, Side Connector D...
- Page 6 PEDALSTATION JNR USER MANUAL SPECIFICATIONS PEDALBOARD SOFT BAG Material Dimensions Hardened aluminium 38*30*11cm Finishing Weight Powder coated, wear-resisting 0.58kgs and scratch-resisting process. Dimensions 35*28*4.5 / 1.5 cm Weight 1.14kgs...
- Page 7 PEDALSTATION JNR USER MANUAL ASSEMBLING THE PEDALSTATION There are 5 steps to assemble the Pedalstation. Step 1 Place Faceplate A and B together. Step 2 Connect these two faceplates with the Connect C. Step 3 Place the three parts in a horizontal line.
- Page 8 IT GETS THE JOB DONE...
