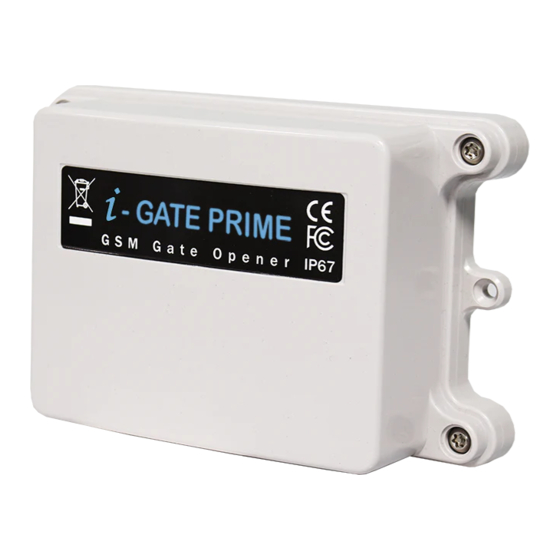

iGate Prime 6 4G
* ALWAYS TEST THE UNIT ON SITE BEFORE

SIM Preparation

Ensure you read all instructions before
1
continuing.
The SIM cards provided need activated
before use. Follow the instructions
provided or visit our telecoms website for
more details:
www.aesglobaltelecom.com

Relay Connections

4
Gate
Controller
Relay1
N/C
COM
N/O
N/C
COM
Optional
N/O
Exit Button
Relay 2
N/C
LIGHTNING PRONE AREAS MUST USE SURGE PROTECTION
FOR POWER SUPPLY!
1
- Advanced GSM Switch
INSTALLATION TO AVOID RE-STOCKING FEE *
2
iGate Enclosure
(Install at height to allow the
internal antenna to find signal.)
DC Power Cable
(1.0mm2 – 8m MAX)
Keep PSU as close to the unit as possible
& Do not share PSU with other devices.
Can be purchased separately.
Driveway
Gates
Separate
lock PSU
Magnetic
Lock
See overleaf for
more PCB details
Turn Over
See full T&C's on our website

Site Wiring

Note: PSU not supplied.
24v DC 1.2A peak.
Power
3
DC24v IN
(Polarity Protected)
SITE SURVEY
Please read this entire manual before installing this
product. A full comprehensive manual is available on
our website for additional information.
Ensure there is good
4G signal on site. 4G
units will fall back to
3G service in some
countries.
This product requires a regular voice & SMS SIM card.
Do not use a data only SIM, as this will not work in the unit.
POWER CABLE
TIP: Most technical calls received are due to installers using CAT5 or alarm cable
to power the unit.
NEITHER are rated to carry enough power! ( 1.2amp peak )
Please use the following cable:
Up to 2 metres ( 6 feet ) – Use minimum 0.5mm
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm

INGRESS PROTECTION

We recommend sealing all entry holes for prevention of insects that can
cause issues with a risk of shorting out components.
To maintain the IP55 rating please follow the sealing instructions included.
(also available online)
NEED MORE ASSISTANCE?
+44 (0)288 639 0693
SCAN THIS QR CODE TO BE BROUGHT TO OUR RESOURCES PAGE.
VIDEOS | HOW-TO GUIDES | MANUALS | QUICK START GUIDES
STILL HAVING TROUBLE?
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
our website:
WWW.AESGLOBALONLINE.COM
Set up on a bench in workshop
BEFORE going to site.
Program the unit in the comfort
of your work bench and call
technical support should you
have any questions.
KEEP POWER SUPPLY AS CLOSE AS POSSIBLE.
Power
2 ( 18 gauge )
Consumption:
2 ( 16 gauge )
Standby = 80mA
2
( 14 gauge )
Peak = 1.2A
