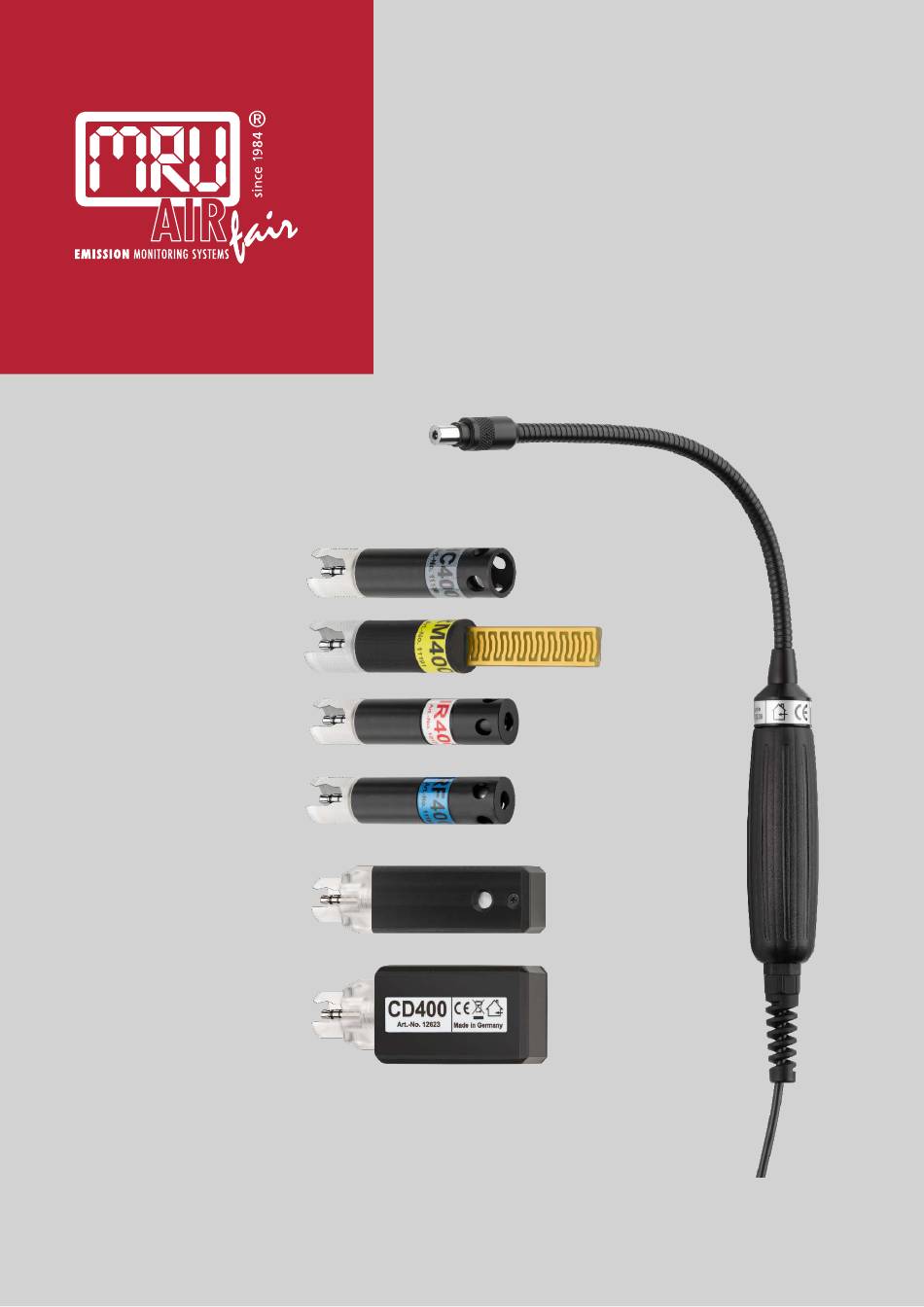

- Page 1 Hand detector probe USER MANUAL HC40X RM400 IR400 RF400 CO400 CD400 1112EN...
- Page 2 Legal notices / Intellectual property rights comments Original user manual © 2022 by MRU No part of this manual may be published in any form (print, photocopy, electronic media or any other publication form) without a written approval by the publisher.
-
Page 3: Table Of Contents
Starting measurement .................... 12 Open context menu ....................13 Setting alarm thresholds and units..............14 4.2. Measuring with interchangeable sensor RM400 ........16 Starting measurement .................... 16 Open context menu ....................17 4.3. Measuring with interchangeable sensor RM400 ........19 Starting measurement .................... - Page 4 Technical data ..................34 Interchangeable Sensor HC400 (Nr.11138) ............34 Interchangeable Sensor HC401 (Nr.11591) ............34 Interchangeable Sensor HC402 (Nr.11733) ............35 Interchangeable Sensor RM400 (Nr.11191) ............36 Interchangeable Sensor IR400 (Nr.12121) ............36 Interchangeable Sensor HM400 (Nr.11922) ............36 Interchangeable Sensor RF400 (Nr.11900) ............37 Interchangeable sensor CO400 (Nr.12130) ............38 Interchangeable sensor CD400 (Nr.12623) ............39...
-
Page 5: Security And Safety Directions For The Analyser
Security and safety directions for the analyser 1.1. Safety manual All general information and safety precautions of MRU products are listed in the supplied separate safety manual. Therefore, this manual must be read and observed before the first use of the ana- lyser. -
Page 6: Introduction
Due to interchangeable sensors, the Hand Detector Probe 400DH can be used for a wide range of applications: • Usable with interchangeable sensor RM400 for leak detection on exhaust pipes. Usable with interchangeable sensor HC400, HC401 and HC402 for leak •... - Page 7 Modifications or changes to the measuring device are not allowed. The Hand Detector Probe 400DH must not be modified in terms of con- struction or safety. Modifications of this kind by the user will invalidate the declaration of conformity 7 / 41 MRU GmbH, D-74172 Neckarsulm...
-
Page 8: The Company Mru
USER MANUAL 400DH 2.2. The company MRU The 400DH is manufactured by the MRU GmbH in Neckarsulm, Germany (founded in 1984), a medium sized company that specializes in developing, pro- ducing and marketing high quality emission monitoring analysers. MRU GmbH... -
Page 9: Description
3.2. Inserting interchangeable Sensor ► Insert the desired interchangeable sensor into the sensor connector. ► Make sure that the interchangeable sensor clicks into place audibly. The analyser automatically identifies the 9 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 10: Terms And Window Designation
(Key F1). With this function the signal is switched on. Signal OFF (F1) If the sensor has a signal threshold, signal ON appears in the context menu and on the display (F1). 10 / 41 MRU GmbH, D-74172 Neckarsulm... - Page 11 The information (sensor name, serial number, firmware version) about the sensor is displayed here. select (>>) "Arrows Varies depending on the interchangeable sensor: right" e. g. with HC402: select (<<) "Arrows left" Switching between CH and H 11 / 41 MRU GmbH, D-74172 Neckarsulm...
-
Page 12: Measuring
► Only use the measuring device to locate gas leaks in the installation area. ► Even if the sensor does not locate a leak, this is not suffi- cient proof of the tightness of a pipe system. Observe the relevant valid rules. 12 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 13: Open Context Menu
Open context menu In the context menu you can configure the measurement. ► Press the context menu key. The context menu ► Select the desired option. 13 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 14: Setting Alarm Thresholds And Units
► Set the desired alarm threshold and unit for each measured value sepa- rately. ► Press ESC. The measurement starts/continues. As soon as the set alarm threshold is exceeded, the measured value turns red and an acoustic alarm signal will sound. 14 / 41 MRU GmbH, D-74172 Neckarsulm... - Page 15 0,02 … 1,14 % LEL [ppm] 10 … 500 ppm 0,001 … 0,050 % [% LEL] 0,06 … 2,94 % LEL [ppm] 10 … 500 ppm 0,001 … 0,050 % [% LEL] 0,03 … 1,25 % LEL 15 / 41 MRU GmbH, D-74172 Neckarsulm...
-
Page 16: Measuring With Interchangeable Sensor Rm400
USER MANUAL 400DH 4.2. Measuring with interchangeable sensor RM400 The interchangeable sensor RM400 is used for leak detection on flue gas pipes. NOTE The RM400 operates on a conductive sensor surface, so do not clean with alcohol or distilled water. -
Page 17: Open Context Menu
Measurement menu Exit measuring program (ESC) Info The information (sensor name, serial number, firmware version) about the sensor is displayed here. select (>>) (<<) Switching between high sens and low sens „Arrows right/left“ 17 / 41 MRU GmbH, D-74172 Neckarsulm... - Page 18 USER MANUAL 400DH NOTE The RM400 operates on a conductive sensor surface, so do not clean with alcohol or distilled water. If necessary, clean the sensor surface with saline water and al- low it to dry DANGER Danger due to improper use Non-compliance with the measurement rules can result in fatal accidents.
-
Page 19: Measuring With Interchangeable Sensor Rm400
USER MANUAL 400DH 4.3. Measuring with interchangeable sensor RM400 The interchangeable sensor HM400 is used to measure ambient parameters. You can use the interchangeable sensor to… • to measure the air humidity • to measure the dew point • to measure the air pressure •... -
Page 20: Setting Units
Dew point ° C, ° F Air pressure abs. hPa, inHG, mmHG, mmH Temperature ° C, ° F 4.4. Measurement with interchangeable sensor IR400 The IR400 interchangeable sensor is used for non-contact temperature measurement. 20 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 21: Starting Measurement
Visual and audible alarm signals indicate a measurement above the set alarm threshold. The flashing frequency of the red LED in the sensor foot increases with a measurement above the set alarm threshold. 21 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 22: Open Context Menu
Setting Alarm threshold, Unit and Emissivity You can set a defined alarm threshold. As soon as the defined alarm threshold is exceeded, an alarm is issued. You can change the unit. You can set the emissivity. 22 / 41 MRU GmbH, D-74172 Neckarsulm... - Page 23 However, metals, especially those with polished or shiny surfaces, can have an emissivity of 0.1 and are poorly suited for IR measurement. Set the corresponding emissivity before the measurement. Otherwise, there may be large deviations in the measurement. 23 / 41 MRU GmbH, D-74172 Neckarsulm...
- Page 24 The emissivity given here serve as a rough orientation and may vary greatly depending on the variation of the material (e.g., not oxidized to oxidized). Research the emission levels relevant to you, e. g. on the Internet or in the relevant specialist literature. 24 / 41 MRU GmbH, D-74172 Neckarsulm...
-
Page 25: Measurement With Interchangeable Sensor Rf400
The measurement process is displayed graphically. Optical and acoustic alarm signals indicate gas leakage. The flashing frequency of the red LED in the sensor foot increases with the increase of the measured gas concentration. 25 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 26: Open Context Menu
As soon as the defined alarm threshold is exceeded, an alarm is issued. ► Go to the context menu. ► Select settings. ► Press OK. A menu appears. ► Select select. ► Set the desired measurand. 26 / 41 MRU GmbH, D-74172 Neckarsulm... - Page 27 As soon as the set alarm threshold is exceeded, the measured value turns red and an acoustic alarm signal will sound. NOTE Refrigerants marked with * are detectable. Refrigerants that are not marked are referenced and cali- brated 27 / 41 MRU GmbH, D-74172 Neckarsulm...
- Page 28 5 … 200ppm 5 … 200ppm R1234ze 5 … 200ppm R1150* 5 … 200ppm R1270* 5 … 200ppm R600(a)* 5 … 200ppm R290* 5 … 200ppm R513a* 5 … 200ppm R1234yf* 5 … 200ppm 28 / 41 MRU GmbH, D-74172 Neckarsulm...
-
Page 29: Measurement With Interchangeable Sensor Co400
Open context menu In the context menu you can configure the measurement. ► Press the context menu key. The context menu ► Select the desired option. 29 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 30: Setting Alarm Threshold And Unit
Setting alarm threshold and unit You can set a defined alarm threshold. As soon as the defined alarm threshold is exceeded, an alarm is issued. 30 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 31: Measurement With Interchangeable Sensor Cd400
The measurement process is displayed graphically. Optical and acoustic alarm signals indicate gas leakage. The flashing frequency of the red LED in the sensor foot increases with the increase of the measured gas concentration. 31 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 32: Open Context Menu
Measurement menu Exit measuring program (Esc) settings Setting Alarm threshold See also chapter Settings alarm threshold, Page 33. info The information (sensor name, page number, firmware version) about the sensor is displayed here 32 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 33: Settings Alarm Threshold
USER MANUAL 400DH Settings alarm threshold ► Go to the context menu. ► Select settings. ► Press OK. A menu appears. ► Set the desired Alarm threshold. ► Press ESC. The measurement starts/continues. 33 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 34: Technical Data
Response Time (until Alarm) ≤5 s Operating principle Gas sensitive semiconductor Cross sensitivities alcohol, CxHy, solvent Recommended test weekly interval Test gas 1000ppm CH (50%r. H.) Heat up time Operating temperature +5°C ... +50 °C 34 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 35: Interchangeable Sensor Hc402 (Nr.11733)
Test gas 1000ppm CH (50%r. H.) Heat up time 30 s Operating temperature +5°C ... +50 °C Storage temperature -20°C ... +60°C Expected lifetime under normal use 1…5 [years] Size 62mm x 13,5mm 35 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 36: Interchangeable Sensor Rm400 (Nr.11191)
USER MANUAL 400DH Interchangeable Sensor RM400 (Nr.11191) Specification Values Measuring range humidity 0 … 100 Resolution Response Time ≤1s Operating principle Resistance Operating temperature +5°C ... +50 °C Storage temperature -20°C ... +60° Expected lifetime under normal use >5 [years]... -
Page 37: Interchangeable Sensor Rf400 (Nr.11900)
Response threshold (R134a) ≤ 5g/a Response Time (until Alarm with ≤ 4s R134a) Recovery Time gas sensitive Operating principle semiconductor alcohol, CxHy, solvent, Cross sensitivities FCKW,HFCKW,FKW,HFKW,HFO conform to EN14624:2012 Heat up time 55 s 37 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 38: Interchangeable Sensor Co400 (Nr.12130)
Operating temperature +0°C ... +50 °C Rel. Humidity, non-condensing 15...95% RH Air pressure 900...1100 hPa Storage Temperature -20°C ... +50° Expected lifetime under normal use [years] Calibration Frequency yearly Size 71 x 20,5 x16,5mm 38 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 39: Interchangeable Sensor Cd400 (Nr.12623)
3%MeasuredValue) Response Time (T90) Operating principle NDIR Heat up time Operating temperature +0°C ... +50 °C Storage Temperature -20°C ... +60°C Expected lifetime under normal use >5 [years] Size 71 x 28,5 x16,5mm 39 / 41 MRU GmbH, D-74172 Neckarsulm... -
Page 40: Declaration Of Conformity
USER MANUAL 400DH Declaration of conformity 40 / 41 MRU GmbH, D-74172 Neckarsulm...
