Page 1

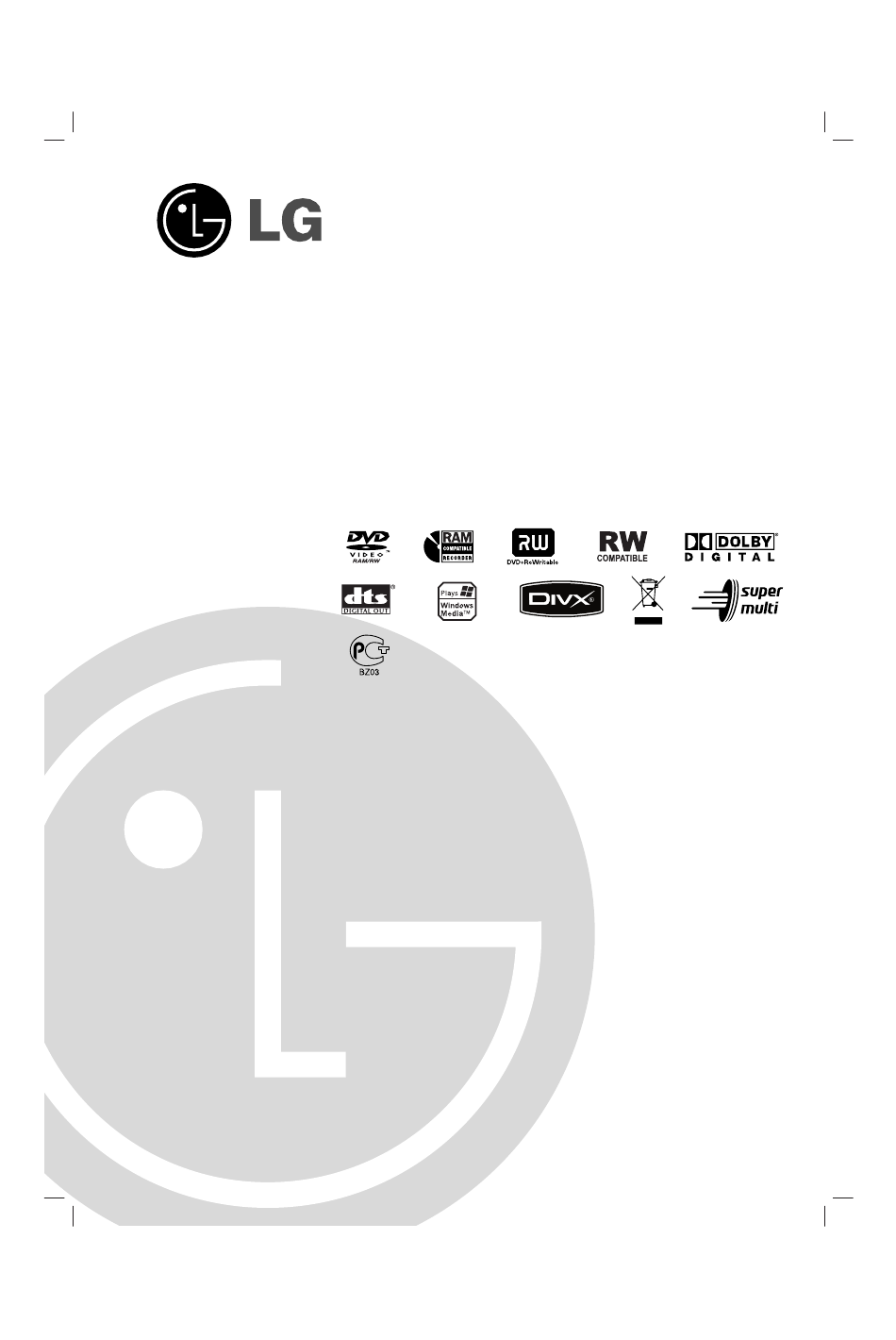

KR200-X.NQEVENT_ENG_2461 DVD Karaoke Recorder OWNER’S MANUAL MODEL: RKS-7000Q (RKS-7000) Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely. The working life of this product is 7 years since the date of purchase.
Page 2
the enclosure. Visible laser radiation when open. CAUTION DO NOT STARE INTO BEAM. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such CAUTION: TO REDUCE THE RISK as vases, should be placed on the apparatus.
Introduction About the Symbol Display To ensure proper use of this product, please read this owner’s manual carefully and retain it for future “ ” may appear on your TV display during reference. operation and indicates that the function explained in this owner’s manual is not available on that specific This manual provides information on the operation media.
Recordable and Playable Discs DVD-RW (Digital Video Disc - ReWritable): DVD-RW discs can be formatted for VR mode recording or Video mode recording. These Discs can be recorded on repeatedly. Recordings can be erased, then you can record again on the same Disc. [VR mode] Recordings can be extensively edited Playable only on VR mode compatible players (after finalization)
Playable Discs DVD (8 cm / 12 cm disc) Discs such as movies that can be purchased or rented Video CD (VCD) (8 cm / 12 cm disc) VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD/Super VIDEO CD format Audio CD (8 cm / 12 cm disc) Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased CD-R/CD-RW (8 cm / 12 cm disc) CD-R/CD-RW discs that contain audio titles, DivX, MP3, WMA, or JPEG files.
Playing media files using the USB feature You can enjoy the media files such as pictures (JPEG), movies (DivX) and tunes (MP3/WMA) saved in an MP3 player or USB memory by connecting the storage device to the USB port of this unit. 1.
Front Panel h i j k a POWER g MIC 1/MIC 2 Switches the unit ON or OFF. Connect a microphone to MIC 1 or MIC 2 or to both sockets. b Disc Tray h Z (OPEN/CLOSE) Insert a disc here. Opens or closes the disc tray.
Remote Control POWER OPEN/CLOSE ( Switches the unit ON or OFF. Opens and closes the disc tray. TV/DVD Changes the input to use for recording. To view channels selected by the (Tuner, AV1, AV2, AV 3 or DV). recorder tuner or by the TV tuner. REPEAT Selects PIP function on or off.
Hookup and Settings Rear Panel a IN(FROM ANT.) f Cooling fan Connect the aerial to this terminal. g AC Power Cord b AV OUT (VIDEO / AUDIO OUT (Left/Right)) Plug into the power source. Connect to a TV with video/audio inputs. h OUT(TO TV) c AV IN 3 (VIDEO IN/AUDIO IN (Left/Right)) Passes the signal from the AERIAL to your...
Connections to Your TV Video connection Connect the VIDEO OUT jack on the recorder to the Make one of the following connections, depending video in jack on the TV using the video cable (V). on the capabilities of your existing equipment. Audio (Left/Right) Connection When using the COMPONENT/ PROGRESSIVE Connect the left and right AUDIO OUT jacks of the...
Connecting to an Amplifier Rear of the unit Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic ll/ Pro Logic Connect the Left and Right AUDIO OUT jacks on the recorder to the audio left and right in jacks on your amplifier, receiver, or stereo system, using the audio cables (A).
Accessory Audio/Video (A/V) Connections VCR, Cable Box, or Satellite Tuner, etc. Connecting a PAY-TV/Canal Plus Decoder You can watch or record PAY-TV/Canal Plus programmes if you connect a decoder (not supplied) to the recorder. Disconnect the recorder’s mains lead from the mains when connecting the decoder. To watch or record PAY-TV/Canal Plus programmes, set [AV2 Connection] option to [Decoder] (see page 17) and set the program’s [Decoder On/Off] option to...
Connecting to the AV IN 3 Jacks Connecting to the Aerial Connect the input jacks (AV IN 3) on the recorder to Remove the aerial cable plug from your TV set and the audio/video out jacks on your accessory insert it into the aerial socket at the back of the component, using audio/video cables.
Using the Home Menu General Operation 1. Select [SETUP] and press ENTER. From the Home Menu screen you can access all the Setup menu appears. Media for playback and recording of the recorder. 2. Use v / V to select the desired option. 1.
Program Edit Program Edit You can perform a search to select and store TV You can edit a channel manually (add, delete, name, channels manually. move, etc.). When you select [Program Edit] in step 4 above, the 1. Select [Program Edit] option then press B. display for setting channels appears.
Clock Set Notes: Progressive Scan will be disabled in the setup menu 1. Select [Clock set] option then press B. when you set Video Output Format to [RGB]. 2. Press B. 3. Enter the necessary information for date and time. Video Output Format b / B (left/right): Moves the cursor to the previous or next column.
Language Settings Audio Settings Dolby Digital / DTS / MPEG Display Menu [Bitstream]: Select “Bitstream” if you connect the Select a language for the Setup menu and on-screen recorder’s DIGITAL AUDIO OUT jack to an amplifier display. or other equipment with a Dolby Digital, DTS or MPEG decoder.
Lock (Parental Control) Settings Note: If you set a rating for the recorder, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have the same rating or a lower one.
KARAOKE Registration You can check the 8byte Karaoke Registration Code to download karaoke music files on the web- site(topkaraoke.ru). 1. Select [Karaoke Registration] then press B. 2. Press ENTER and you can find the Karaoke Registration Code on the popup window. 3.
Recording Settings Disc Settings Disc Format If you load a completely blank disc, the recorder will initialize the disc. DVD-R: The recorder initialize the disc to Video mode. The recording mode will always be Video mode. DVD-RW/DVD+RW/DVD+R(DL)/DVD-RAM: The Initialize menu will appear. Select [Ok] then press ENTER.
Finalize Disc Label Finalizing ‘fixes’ the recordings in place so that the Use this to enter a name for the disc. This name disc can be played on a regular DVD player or appears when you load the disc and when you display computer equipped with a suitable DVD-ROM drive.
General Explanation of Displaying Disc Information on-screen You can display various information about the disc On-Screen Display loaded on-screen. This manual gives basic instructions for operating the 1. Press DISPLAY to show various playback recorder. Some DVDs require specific operation or information.
Playback General Playback Features 1. Load your chosen disc in the tray, with the playback side down. 2. Starts playback using HOME menu (see page 15). 3. To stop the playback, press STOP (x). The unit records the stopped point, depending on the disc. “Xx” appears on the screen briefly. Press PLAY (N) to resume playback (from the scene point).
Page 25
General Playback Features (Continued) Discs Buttons Operations REPEAT During playback, press REPEAT repeatedly to select a DVD ALL desired repeat mode. DivX DVD, VR mode DVD-RW (Title/Chapter/Off) Video CD (Title/ALL/Off) Audio CD, MP3/WMA (TRACK/ALL/(OFF)) Notes: On a Video CD with PBC, you must set PBC to [OFF] in the Setup menu to use the Repeat function.
Page 26
If a menu screen is displayed Marker Search Video DivX The menu screen may be displayed first after loading a To enter a Marker DVD or Video CD which contains a menu. You can start playback from up to nine memorized points.
Page 27
3D Surround PIP (Picture in Picture) Video Video DivX DivX This unit can produce a 3D Surround effect, which This function enables you to view the stored stations simulates multi-channel audio playback from two in sub picture during playback. conventional stereo speakers, instead of the five or more speakers normally required to listen to multi- channel audio from a home theater system.
Playing a DivX Movie File Movie List menu options 1. Press v / V to select a folder/file on the [Movie The recorder can play Divx files. Before playing DivX List] menu then press ENTER. files, read “DivX file requirement” on the right. [Movie List] menu options appear.
Playing an Audio CD or MP3/WMA Audio CD and Music menu options file 1. Press v / V to select a folder/file on the Audio CD or Music menu then press ENTER. The recorder can play audio CDs and MP3/WMA files. The menu options appear.
Program Playback with Audio Program List menu options CD and MP3/WMA file 1. Press v / V to select a track/file on the Program List then press ENTER. Program Playback enables you to make custom The menu options appear. playlists of Audio CD or MP3/WMA tracks. Programs can contain up to 99 Audio CD tracks or 256 MP3/WMA files.
Viewing a JPEG File Photo List menu options 1. Press v / V to select a file on the [Photo List] The recorder can play JPEG files. Before playing menu then press ENTER. JPEG recordings, read “Photo file requirement” on The menu options appear.
Page 32
Skip Images While viewing a picture, press . or > once to advance to the next file or return to the previous file. Rotate Images Use v / V while viewing a picture to flip the picture clockwise or counterclockwise. View Slide Shows 1.
Recording Notes for recording The recording times shown are not exact because the recorder uses variable bit-rate video About DVD recording compression. This means that the exact recording time will depend on the material being recorded. Notes: When recording a TV broadcast, if the reception is poor or the picture contains interference, the This recorder cannot make recordings on CD-R or recording times may be shorter.
Page 34
Restrications on copying Copyright Recording equipment should be used only for Some video material is copy-once protected: Such lawful copying and you are advised to check material cannot be copied to DVD. carefully what is lawful copying in the area in You can identify copy-once protected material during which you are making a copy.
Basic Recording from a TV To Pause the Recording 1. Press PAUSE/STEP (X) to pause recording. Follow the instructions below to record a TV program. 2. When you want to continue recording, press Recording starts immediately and continues until the PAUSE/STEP (X).
Timer Recording 2. Enter the necessary information for your timer recording(s). This recorder can be programmed to record up to 16 b / B (left/right) – move the cursor left/right programs within a period of 1 month. For unattended v / V (up/down) – change the setting at the recording, the timer needs to know the channels to be current cursor position recorded, the starting and ending time.
Checking Timer Recording If two or more timer programs overlap: Details The earlier program takes priority. Programming can be checked whenever the recorder When the earlier program finishes, the later is turned on. Press TIMER REC twice. program starts. Use v / V to select a timer recording. If two programs are set to start at exactly the same Press ENTER to edit the selected program.
Recording from DV Input 1. Make sure your digital camcorder is connected to the front panel DV IN jack. See page 14. Before DV dubbing 2. Select [TV DVD] option on the HOME menu then press ENTER. (see page 15). You can connect a DV-equipped camcorder to this 3.
Editing 1 2 3 Title List and Chapter List Menu Overview Using the Title List menu you can edit video content. The editing features available in the Title List menu depend on whether you are editing video on DVD and whether you’re editing Original content, or a Playlist.
VR Mode: Original and Playlist Adding Chapter Markers Editing You can create chapters within a title by inserting chapter marks at the desired points. Titles, Chapters and Parts Titles in the disc’s original content contain one or Note: more chapters. When you insert a disc’s title into the Chapter markers are inserted at regular intervals Playlist, all the chapters within that title also appear.
Making a New Playlist Adding Additional Title/Chapters to the Playlist Use this function to add an Original title or chapter to You can add an Original title or chapter to add to a the Playlist. When you do this, the whole title is put Playlist title even if it is already registered.
Deleting an Original or Playlist Deleting a Part Title/Chapter You can delete a part which you do not want in the When you erase a title or chapter from the Playlist title. menu, you only remove it from the Playlist; the 1.
Naming a Title You can name Original and Playlist titles independently. 1. Choose the title you want to name on the Title List menu, then press ENTER. The menu options appears on the left side of the menu. 2. Use v/V to select [Edit-Title Name] option then press ENTER.
Dividing One Titles Into Two Combining Two Chapters Into Use this function to combine two adjacent Playlist or Use this command to split a title up into two new titles. Original chapters into one. 1. On the Title List menu, select a title you want to Note: divide then press ENTER.
Moving a Playlist Chapter Use this function to re-arrange the playing order of Playlist chapters on the Title List-Playlist menu. Note: This function is not available if there is only one chapter. 3. Press ENTER to confirm. 1. Press MENU / LIST repeatedly to display the Title List-Playlist menu.
Reference 2. Press TITLE in play or stop mode. Title List menu will appear as shown below. Additional Information You can close the Title List menu by pressing STOP (x). Overwriting Recording To overwrite a new video recording on a previously recorded title, follow these steps.
Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Abkhazian 6566 Fiji 7074 Lingala 7678 Singhalese 8373 Afar 6565 Finnish 7073 Lithuanian 7684...
Operation with KARAOKE Karaoke Advanced Playback S2V (Sound2Vision)_SCORE Function You can enjoy karaoke function with karaoke disc by connecting a microphone to the unit. S2V (Sound2Vision) : S2V shows music visuals using sound of karaoke music and voice. Karaoke Basic Playback SCORE : SCORE shows the song score in real time with the tone and rhythm level meter.
Page 49
Return Function Reserving the Songs This is a function that returns to the preceding menu. When you want to make a reservation of next melody, Press RETURN . you can enjoy up to 12 melodies reservation without waiting. Note: If there is no preceding menu (in case of the first 1.
Page 50
Karaoke Menu Playback Notes: To move to the main menu, press MENU/LIST. Preparation To exit the main menu, press MENU/LIST. Press MENU/LIST on the karaoke mode. The main menu appears on the screen. MUSIC LIST ( LOCAL SONG ( ) and POP SONG ( 1.
Page 51
SONG LIST ( SINGER LIST ( 1 Select and select the initial of the 1 Select and select the initial of song title you want by pressing the v / V, then the singer you want by pressing the v / V, then press ENTER.
Page 52
COMPOSER LIST ( CLASSIC ( 1. Select and select the initial 1. Select by pressing the of the composer you want by pressing the v / V in v / V, and press ENTER. the CLASSIC LIST and COMPOSER LIST menu, and press ENTER.
Page 53
RANDOM ( 5. Select number you want by pressing v / V and press ENTER. 1. Select by pressing v / V on Sing along with the accompaniment. the main menu. 6. Repeat step 5. Alternate between the red and blue teams. 7.
Page 54
Internet Karaoke Playback Notes: You can play the karaoke songs downloaded on If you press DISPLAY instead of ENTER after internet. selecting a desired file, you can check the number (Refer to the Karaoke Registration on page 20) and information of the song file. 1.
Page 55
Internet Karaoke Advanced Playback Reserving songs 1. Press MENU/LIST on the remote control, and the When a song starts playing, the images in an input file list appears on the TV screen. mode you previously set before entering the internet karaoke mode is displayed as the back ground ones.
Controlling Your TV with the Supplied Remote Control You can control the sound level, input source, and power switch of your LG/GoldStar TV with the supplied remote. 1. While holding down TV POWER button, press PR + or -. 2. Release TV POWER button.
Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Symptom Cause Solution No power. The power cord is disconnected. Plug the power cord into the wall outlet securely. No picture. The TV is not set to receive recorder Select the appropriate video input mode signal output.
Page 58
Symptom Cause Solution The disc was recorded in Video mode. Finalize the disc. (page 22) Cannot play a disc recorded using this Some players will not play even a No solution. recorder on another finalized disc recorded in Video mode. player.
Specifications General Power requirements AC 200-240V, 50/60 Hz Power consumption Dimensions (approx.) 441 X 58 X 307 mm (w x h x d) without foot Mass (approx.) 3.92 kg Operating temperature 5˚C to 35˚C Operating humidity 5 % to 90 % Television system PAL I, B/G, I/I, SECAM D/K, K1 colour system Recording format...
