Summary of Contents for GERMANICA GMW230AU8

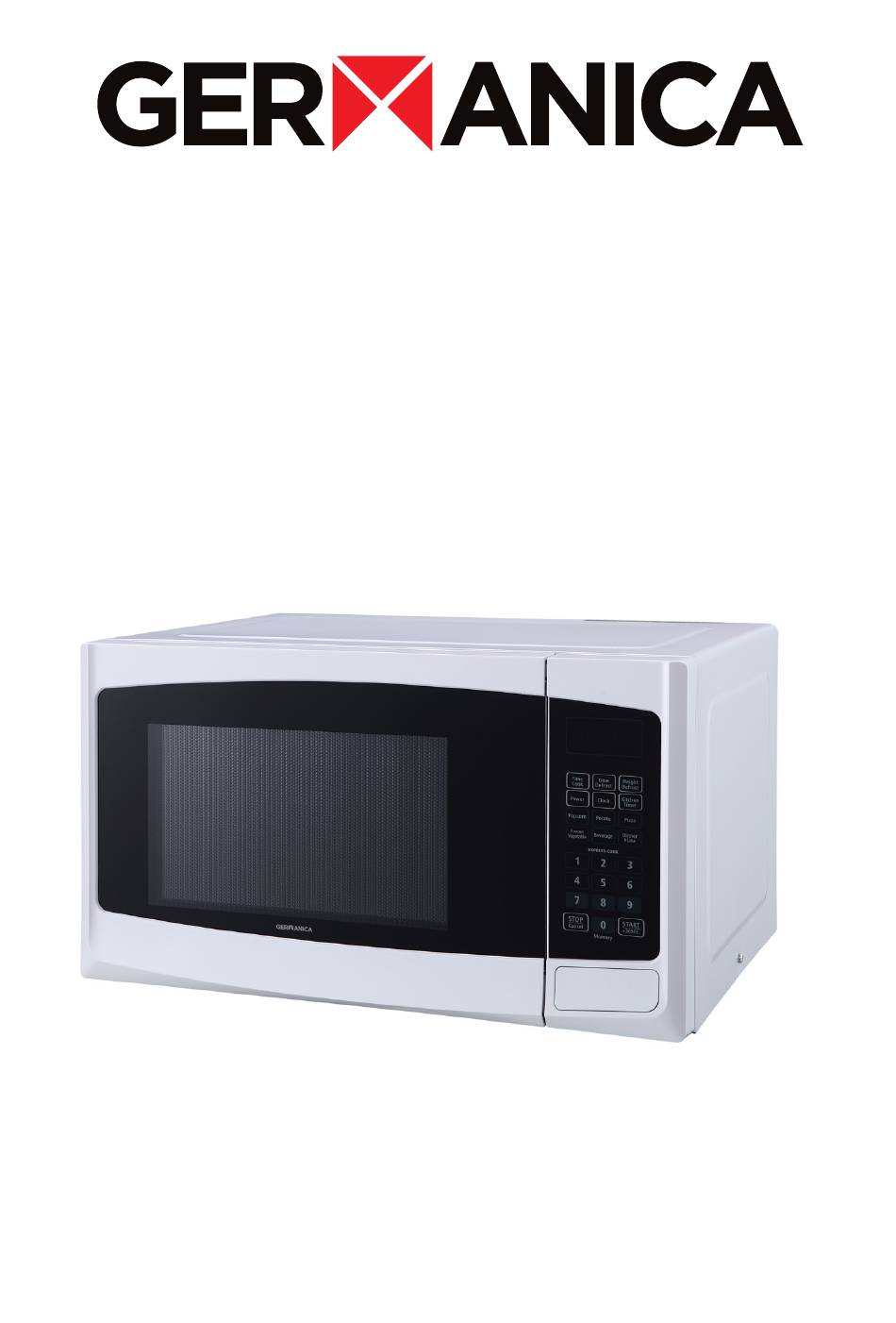

- Page 1 MICROWAVE OVEN GMW230AU8 INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Installation Operation Power Levels Clock Settings Kitchen Timer Microwave Cook Speedy Cooking Weight Defrost Function Timed Defrost Function Popcorn Potato Frozen Vegetable Beverage Dinner Plate Pizza Memory Function Multi-stage Function Inquiring Function Lock Function for Children Cleaning and Maintenance FAQs Specifications... -
Page 4: General Safety
GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the Microwave Oven. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. The lightning flash with symbol within the triangle is intended to warn you of a non-insulated dangerous voltage in the... - Page 5 GENERAL SAFETY (Cont.) WARNING! INSTRUCTIONS TO AVOID EXPOSURE TO MICROWAVE ENERGY • Do not tamper with the safety locking mechanism, and do not use the microwave oven with the door open. The door must be completely shut to prevent harmful exposure to microwave energy. •...
- Page 6 GENERAL SAFET (Cont.) ELECTRICAL SAFETY AND POWER CORD HANDLING • Voltage: Make sure that your outlet voltage and circuit frequency correspond to the voltage stated on the appliance rating plate. • Power outlet: Connect the appliance to a properly earthed power outlet, which must be easily accessible so that you can unplug it if necessary.
- Page 7 GENERAL SAFETY (Cont.) • Do not use the appliance for anything other than its intended purpose. Drying of food or clothing and heating of warming padsband similar items may lead to risk of injury, ignition or fire. • The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction on the use of the appliance by a person responsible for their safety.
-
Page 8: Product Overview
PRODUCT OVERVIEW A - Control Panel E - Observation Window B - Turntable Shaft F - Door Assembly C - Turntable Ring Assembly G - Safety Interlock System D - Glass Tray TURNTABLE INSTALLATION Never place the glass tray upside down. The glass tray should never be restricted. -
Page 9: Installation
INSTALLATION Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation. UNPACKING • When unpacking the appliance, be sure to keep all the packaging materials until you have made sure your new appliance is undamaged and in good working order. - Page 10 INSTALLATION (Cont.) IMPORTANT ADVICE The plug must be connected to an appropriate outlet that is installed and earthed in accordance with local standards and requirements. If unsure, consult an electrician or a service representative. Do not, under any circumstances, cut or remove the third (grounding) prong from the power plug.
-
Page 11: Operation
OPERATION POWER LEVELS The below table respresents each power level. LEVEL POWER DISPLAY 100% PL10 CLOCK SETTINGS Press “CLOCK” - “00:00” will display. Press the number keys and enter the current time. For example: time is 12:10 now, please press “1,2,1,0” in turn. Press “... -
Page 12: Kitchen Timer
OPERATION (Cont.) KITCHEN TIMER Press “KITCHEN TIMER”, screen will display 00:00, the first hour figure will commence flashing. Press the number keys and enter the timer amount. (the maximum cooking time is 99 minutes and 99 seconds) Press “START/+30SEC” to confirm setting. When the timer ends, the buzzer will ring 5 times. -
Page 13: Speedy Cooking
OPERATION (Cont.) During Microwave Cooking “POWER” can be pressed to change the power you need. After pressing “POWER”, the current power flash for 3 seconds, now you can press number button to change the power. The oven will work with the selected power for the rest time. -
Page 14: Popcorn
OPERATION (Cont.) POPCORN Press “POPCORN” repeatedly until the number you wish appears in the display, “50”,”100”g will display in order. For example, press “POPCORN” once, “50” appears. Press “START/+30 SEC” to cook, buzzer sounds once. When cooking finish, buzzer sounds five times and then turn back to waiting state. IMPORTANT INFORMATION When selecting 100 g of popcorn, it is suggested that you fold down a triangle on each corner of the bag before cooking. -
Page 15: Beverage
OPERATION (Cont.) BEVERAGE Press “BEVERAGE” repeatedly until the number you wish appears in the display, “1”, “2”, “3” cup will display in order. One cup is about 120ml. For example, press “BEVERAGE” once, “1” appears. Press “START/+30 SEC” to cook, buzzer sounds once. When cooking finish, buzzer sounds five times and then turn back to waiting state. -
Page 16: Memory Function
OPERATION (Cont.) MEMORY FUNCTION Press “0/MEMORY” to choose memory 1-3 procedure. The Screen will display 1,2,3. If the procedure has been set, press “START/ +30 SEC” to use it. If not, continue to set the procedure. Only one or two stages can be set. After finishing the setting, press “START/ +30 SEC”... -
Page 17: Multi-Stage Function
OPERATION (Cont.) MULTI-STAGE COOKING At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then defrosting shall be placed at the first stage automatically. Note : Auto cooking cannot work in the multi-stage cooking. Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave power for 10 minutes. -
Page 18: Cleaning And Maintenance
Cleaning and Maintenance Turn off the oven and remove the power plug from the wall socket before cleaning. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. - Page 19 Cleaning and Maintenance (Cont.) When it becomes necessary to replace the oven light, please consult customer service on info@ayonz.com to have it replaced. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
-
Page 20: Faqs
FAQS If experiencing issues with your oven and isn’t operating correctly please check the following pages for solutions to the problems. If none of the solutions offered help solve the problem with your appliance then please contact our call centre on info@ayonz.com. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. -
Page 21: Specifications
SPECIFICATIONS Power Supply 230-240V ~ Rated Frequency 50Hz Rated Input 1200-1250W Rated Output 750-800W Microwave Frequency 2450MHz Dimensions 485 (w) x 375 (d) x 293 (h) mm Weight Net: 13 kg / Gross: 14 kg... -
Page 24: Customer Helpline
CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
