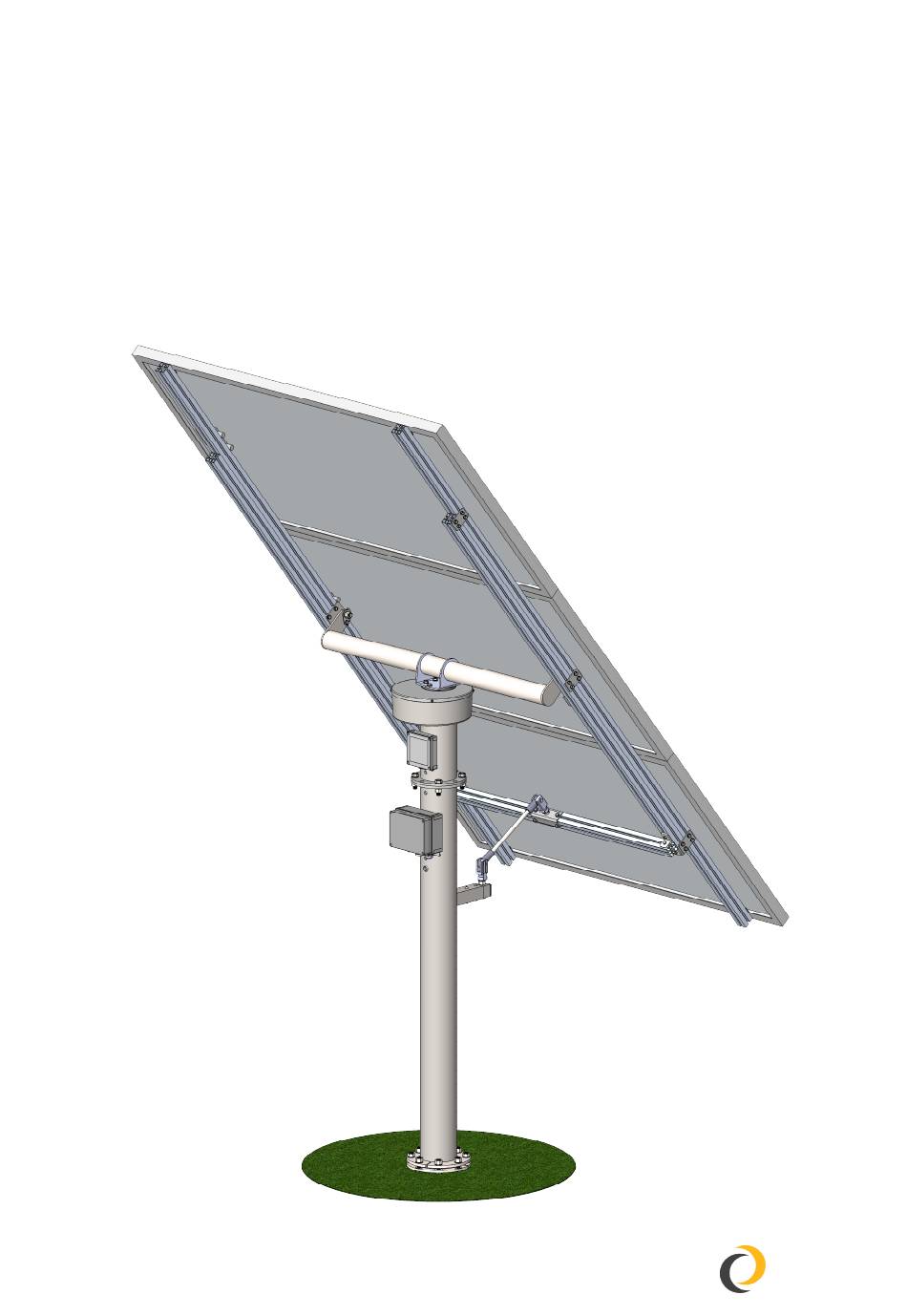

- Page 1 HELIOMOTION QUICK ASSEMBLY GUIDE PV-3 HelioZenit Revision 1, 2021...
- Page 2 PART I - FOUNDATION...
- Page 3 Soil founda�on Make a hole for the concrete at your chosen location. The hole for a PV-3 should be at least 65x65 cm, 70 cm deep (~300 liter). Fill the hole with concrete up to a few centimeters below ground level. Push the rod unit into center of the Rod unit concrete and let the flange rest on...
- Page 4 Bedrock foundation Drill eight holes vertically into the bedrock using the rod unit as a template. Make the holes 20 mm wide and 250 mm deep. Use compressed air to remove any debris and water from the holes to ensure a clean bonding surface. Rod unit Make sure the rod unit fits well into the holes.
- Page 5 South 1. Mount the column including the bottom flange on the rod unit as illustrated. Column needs to be turned so that the square tube faces true south in the northern hemisphere or true north in the southern hemisphere. To do so follow these steps: 2.
- Page 6 PART II - TRACKER...
- Page 8 PART III - FRAMEWORK...
- Page 9 22mm 22mm X = (Panel width * 3 - 2000) / 2...
- Page 11 Tighten these nuts slightly...
- Page 12 PART IV - PANELS...
- Page 13 1. Lift and center a panel onto frame with the cable box (B) as illustrated. 2. Lock panel edges to the frame with four panel clamps (C). 3. Repeat these steps for the remaining panels. Remove the extension rod and attach only the black angle rod.
- Page 14 1. Attach PV cables to the frame using cable ties and self-adhersive clip anchors. 2. Have the electrician connect the PV cables together according to application. Standard applications are listed below. String inverter Grid-tied string inverters generally supports a high voltage PV input.
- Page 15 Grid-�ed system with microinverters AC switch (S) Transformer (T) 24VDC Ground (G) Neutral Line 1 24VDC Utility AC (U) ² 2x1mm ² 5x2.5mm Line in Neutral Ground G G G G L1 L2 L3 Line out The PV solar panels, microinverter (M) and utility AC (U) must be connected by a certified electrician.
- Page 16 Grid-�ed system with microinverters 1. Acquire an outdoor underground cable long enough to reach from the junction box (K) on the column to the nearest fuse box inside the house. A 1-phase system needs a cable with two wires plus a surrounding shield (1-phase cable), whereas a 3-phase system needs a cable with four wires plus the shield (3-phase cable).
- Page 17 Grid-�ed system with string inverter 24V- PV+ PV- 24V+ Ground (G) 24VDC PV (x2) DC (x4+G) ² 2x1mm If the string inverter and 24VDC transformer is placed away from the solar installation the junction box (K) can be wired as shown above. If the string inverter is placed on the column of the solar installation the 24VDC transformer can be added to the outdoor junction box (K) along with AC...
