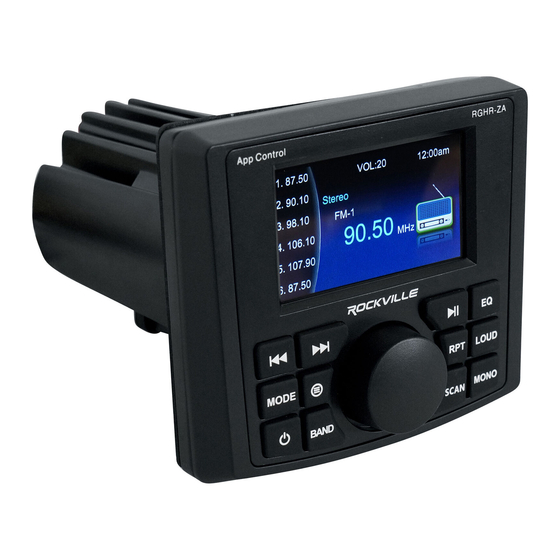

WEATHER RESISTANT GAUGE-HOLE DIGITAL MEDIA
RECEIVER w/4 ZONES and APP CONTROL
WATCH THIS VIDEO BEFORE FIRST USE!
Scan the QR code or go to rockvillesupport.com/
rghr-za to access how-to video(s), the owner's manual,
and other important information you may need to get
If you prefer written instructions, please read ahead!
With Rockville you get many options.
Missing items?
are missing part of your bundle then it just means your order shipped from two different
warehouses. You will receive the remaining items very soon. If you have any concerns or
inquiries, feel free to call our customer support center at 1-646-758-0144, 24 hours a
day/7 days a week.
RGHR-ZA
OWNER'S MANUAL
ATTENTION:
Who reads manuals?
the most out of your item.
If you ordered a bundle that includes more than one product and you

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RGHR-ZA and is the answer not in the manual?

Questions and answers

Summary of Contents for Rockville RGHR-ZA

  • Page 1 WATCH THIS VIDEO BEFORE FIRST USE! Who reads manuals? Scan the QR code or go to rockvillesupport.com/ rghr-za to access how-to video(s), the owner’s manual, and other important information you may need to get the most out of your item.

  • Page 2: Important Safety Instructions

    Thank you for purchasing this Rockville RGHR-ZA. Please read this manual carefully for proper use of your RGHR-ZA. Should you need assistance, please call our technical help line at 1-646-758-0144, 24 hours a day/7 days a week. INCLUDED • Marine digital media receiver •...
  • Page 3 DIMENSIONS HEAD UNIT REMOTE CONTROL 115mm 50.8mm 4.53in. 2in. 3.175mm 19.05mm 0.75in. 1.125in. 103.98mm 4.09375in. 20.64mm 0.8125in. 75.95mm 2.99in. 33.34mm 126mm 1.3125in. 4.9375in.

  • Page 4: Wiring Diagram

    The HOUSE battery’s negative terminal provides the common ground for the boat’s electrical system. The RGHR-ZA runs on 12 volts. Hence, for trouble-free performance, connect the black ground wire and yellow power wire of the RGHR-ZA to the corresponding terminals on the HOUSE battery only.
  • Page 5 INSTALLATION RECEIVER 1. Cut out a 3˝ diameter hole for the unit. Make sure there is at least 5 - 7 inches of depth so the unit can fit into the cutout. 3 ˝ ( 7 6 M M 2. Wire the unit as indicated in the wiring diagram on the facing page.

  • Page 6: Remote Control

    2. Feed the remote control cable into the hole and connect it to the included remote extension cable which should be connected to the remote control input on the RGHR-ZA receiver. Now slide the remote control unit into the hole until it sits firmly against the mounting...
  • Page 7 3. Remove the nuts (see inset) then slide the mounting bracket onto the unit as shown in the illustration. The bracket should sit firmly against the back of the remote and the arms should sit firmly against the mounting surface. 4.
  • Page 8 FUNCTIONS RECEIVER APP CONTROL RGHR-ZA REMOTE ZONE 1 ZONE 2 ZONE 3 MODE LOUD MONO BAND SCAN RECEIVER (PREVIOUS/NEXT): Press to select the previous/next track(BT and USB) modes or radio station. Press and hold to rewind or fast-forward (USB mode only).
  • Page 9 1. When “NOT CONNECTED” is flashing on the screen, the unit is in pairing mode. 2. Ensure your device is in Bluetooth mode and discoverable. 3. Under list of available devices, search for and select RGHR-ZA. 4. Once connected, the paired device’s name will be displayed on the screen.

  • Page 10: Speaker Zones

    RGHR-ZA Mobile App To RGHR-ZA includes an app available for iPhone and Android phones which allows your phone to act as a wireless remote. Through the app you can adjust the main volume, zone...

  • Page 11: Supported File Formats

    You can download the app at the Apple app store or the Google Play app store. Simply search for RGHR-ZA. SUPPORTED FILE FORMATS The following file formats are supported in USB input mode: AUDIO...
  • Page 12 FEATURES • Includes wired remote with the ability to control the volume in each zone • APP control allows you to download the free app for Android or iPhone and control zone volume, song selection, source selection, and more • Back-lit 3˝ TFT color display •...

  • Page 13: Troubleshooting

    Troubleshooting PROBLEM SOLUTION No power 1. Check power connections: Yellow wire goes to battery, red wire goes to ACC, black wire must be grounded securely. Make sure all three wires are connected, otherwise the unit will not receive power on. Poor or no radio reception 1.
  • Page 14 Entrance A, Inwood, NY 11096 Hereby declares that the product Rockville RGHR-ZA Water-Resistant Gauge-Hole Digital Media Receiver complies with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
