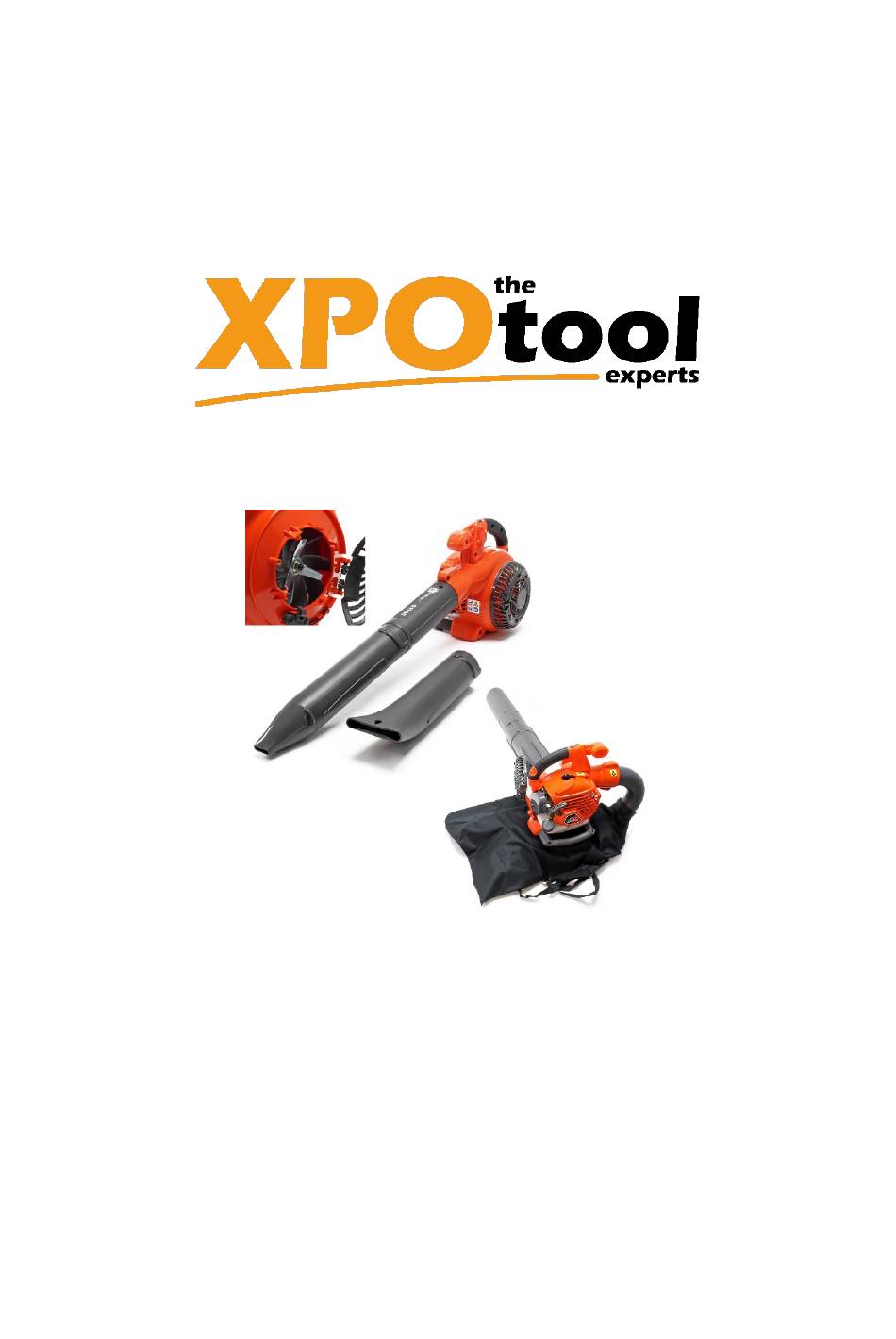

Operation Manual
Leaf Blower, Vacuum, and Shredder
61955
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool 61955
Summary of Contents for XPOtool 61955
- Page 1 Operation Manual Leaf Blower, Vacuum, and Shredder 61955 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 61955 Page 2 The Tool Experts 05 2022-1...
- Page 3 Whenever several users work in the same work area, they should keep a distance of at least 15 m from one another. Risk of hot surface. Risk of burns! Risk of fire! https://www.XPOtool.com Item 61955 Page 3 The Tool Experts 05 2022-1...
- Page 4 • Before each use, inspect the device for worn, loose, missing, or damaged parts. Only operate the leaf blower when it is in perfect condition. https://www.XPOtool.com Item 61955 Page 4 The Tool Experts 05 2022-1...
- Page 5 People who often use privately or work professionally with petrol-powered devices should always keep an eye on their health and the condition of the device. Warning! https://www.XPOtool.com Item 61955 Page 5 The Tool Experts 05 2022-1...
- Page 6 Assembly Delivery content The following parts are included: • Blower • Upper blowpipe • Lower blowpipe • High-speed air nozzle • Connection pipe • Collection bag • Upper suction tube https://www.XPOtool.com Item 61955 Page 6 The Tool Experts 05 2022-1...
- Page 7 3. Align the slots on the lower blowpipe with the tabs on the upper blowpipe. № Name Letter Name Flap Upper blowpipe Notch Lowe blowpiper Clamp screw and rabbet 4. Slide the lower blowpipe over the upper blowpipe. https://www.XPOtool.com Item 61955 Page 7 The Tool Experts 05 2022-1...
- Page 8 5. Push the connecting pipe into the fan outlet. Make sure that the notch in the connecting pipe is on the same line as the guide for the fan outlet. https://www.XPOtool.com Item 61955 Page 8 The Tool Experts 05 2022-1...
- Page 9 2. Slide the lower suction tube into the upper suction tube until the lower tube is firmly seated in the upper tube. № Name № Name Lower blowpipe Upper blowpipe 3. Align the tabs on the inside of the suction port with the slots on the suction tube. https://www.XPOtool.com Item 61955 Page 9 The Tool Experts 05 2022-1...
- Page 10 5. Make sure that the shoulder strap is adjusted to allow unobstructed airflow out of the connecting tube. If the collection bag is bent, the device will not work properly. https://www.XPOtool.com Item 61955 Page 10 The Tool Experts 05 2022-1...
- Page 11 Do not insert the suction tube directly into a pile as this could clog the device. The suction tube should be moved back and forth approx. 2–3 cm from the ground for optimal suction per- formance. https://www.XPOtool.com Item 61955 Page 11 The Tool Experts 05 2022-1...
- Page 12 Item 61955 Page 12 The Tool Experts 05 2022-1...
- Page 13 Engines can be started by moving the start lever to the “run” position and pressing the throttle fully. Pull the starter lever repeatedly while depressing the throttle until the engine starts and runs. This may https://www.XPOtool.com Item 61955 Page 13 The Tool Experts...
- Page 14 Clean the cover and areas around it to prevent debris from entering the carburettor when you remove the cover. Note: Before opening the air filter cover, move the choke lever to the “run” position. https://www.XPOtool.com Item 61955 Page 14 The Tool Experts 05 2022-1...
- Page 15 № Name № Name Fuel filter Fuel line Checking the exhaust retaining screws Once a year, check that the exhaust retaining screws (1) are securely tightened to prevent damage. https://www.XPOtool.com Item 61955 Page 15 The Tool Experts 05 2022-1...
- Page 16 Do not operate the machine for a longer period (e.g., more than half an hour) to prevent damage from noise and vibrations. Use a slow speed as little as possible. https://www.XPOtool.com Item 61955 Page 16 The Tool Experts 05 2022-1...
- Page 17 Fuel filter clogged up Replace spark arrestor. lacks power. Wrong lever position Move lever into “run” position. Dirty spark protector Replace spark protector. Dirty air filter Remove, clean and reinsert the filter https://www.XPOtool.com Item 61955 Page 17 The Tool Experts 05 2022-1...
- Page 18 Clean or replace air filter. Wrong carburettor mixture Have carburettor adjusted by au- thorised service. Incorrect fuel mix ratio Use properly mixed fuel. Choke lever in half position Vary position of choke lever. https://www.XPOtool.com Item 61955 Page 18 The Tool Experts 05 2022-1...
- Page 19 D-52249 Eschweiler Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 61955 Page 19 The Tool Experts 05 2022-1...
