Summary of Contents for pozyx Enterprise Anchor V2.1

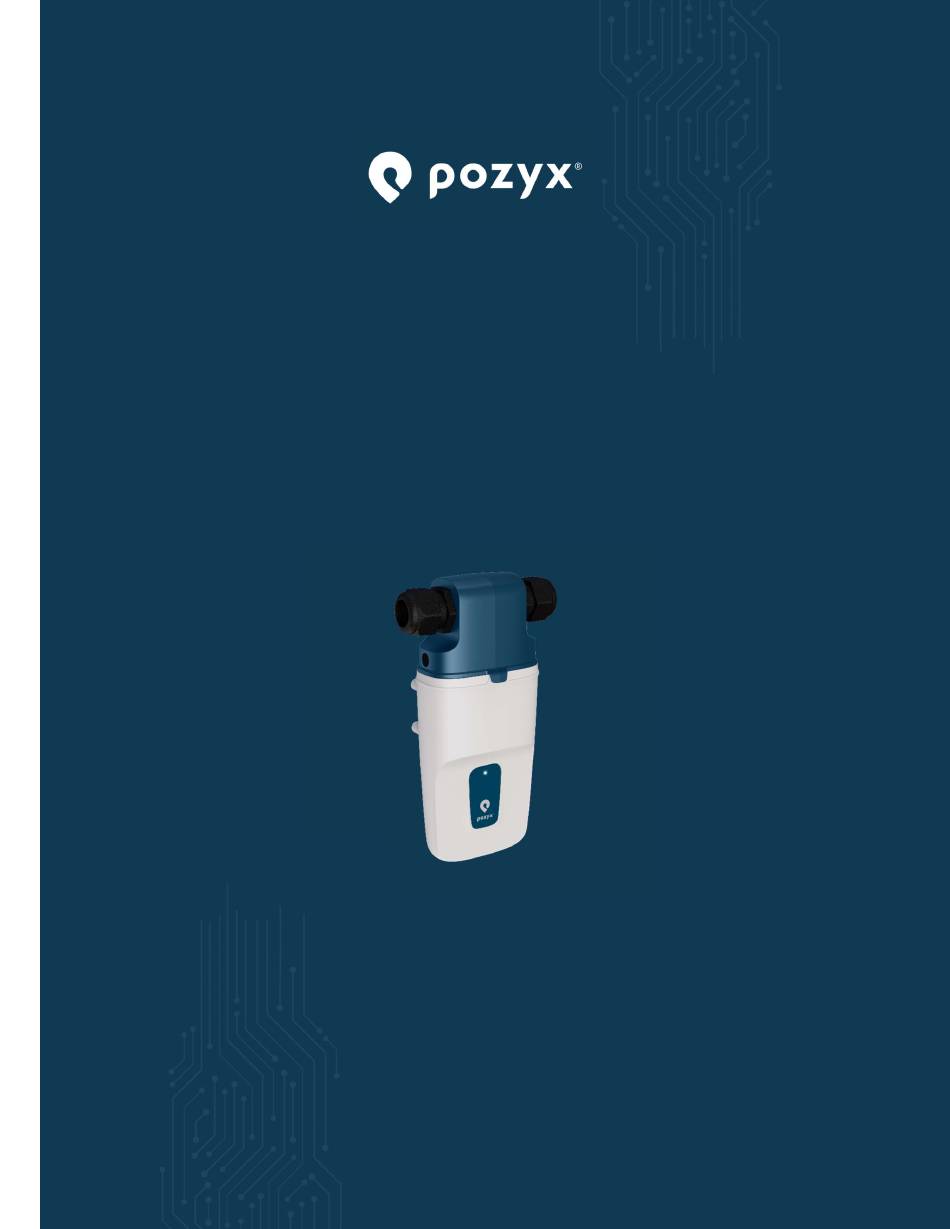

- Page 1 Accurate Positioning Enterprise Anchor V2.1 USER MANUAL v1.5, 2022-06-28...
-
Page 2: Table Of Contents
Contents Contents ............................ 2 Foreword ..........................3 Disclaimer .......................... 3 Note to Operator ......................3 Safety ..........................3 About this Manual ......................4 Audience ..............................4 Copyright ..............................4 Revision History ............................4 Overview ..........................5 General Technical Specifications ..................6 Installing the Anchor ...................... -
Page 3: Foreword
Doing so may present a hazard and will void any warranties. Under no circumstances can Pozyx be held liable in any way shape or form for any defects, damages, injuries, direct or indirect, that are the result of handling, using, installing or any... -
Page 4: About This Manual
5 About this Manual Audience This manual is intended for users of the Enterprise Anchor V2.1 in conjunction with the Pozyx Enterprise System. Any other use outside of the system is deemed incompliant and will void any warranties of the anchor, tag, system, or any Pozyx hardware. -
Page 5: Overview
Mounting the Anchor is straightforward with the help of three mounting brackets. The Anchor works within the Pozyx Enterprise system and requires an infrastructure of tags, anchors, switches, and a Positioning Server to accurately and correctly translate tag positions in a stream of real-time coordinates. -
Page 6: General Technical Specifications
IP66/67 8 Installing the Anchor Mounting Anchors Mounting brackets allow users to install the Enterprise Anchor V2.1 to a pole, wall or ceiling. Three types of mounting brackets are available to mount an Enterprise Anchor V2.1: VESA pole mount (90-020-0001) - Page 7 VESA wall mount (90-020-0002) VESA ceiling mount (90-020-0003) The Anchor is mounted with 4 M4 screws on the mounting bracket.
-
Page 8: Connecting Cables
100Base-T ports. They can be used to link up anchors in sequence which reduces the total amount of wiring required. We call this Daisy Chaining of Anchors. Figure 2 Pozyx Anchor PoE ports The port labeled “1”should be connected to the Positioning Server. This can ... -
Page 9: Powering The Anchor
Powering the Anchor There are two options to power an Enterprise Anchor: Using Power-Over-Ethernet (PoE/PoE+). This option requires that an Ethernet switch with PoE capability is placed between the Positioning Server and the first anchor in a daisy-chain. Each anchor will provide power on the outgoing Ethernet cable for the next anchor in the chain. -
Page 10: Anchor Headers
Anchor Headers Two types of headers are available for the Enterprise Anchor: The header 90-010-0101 provides IP66 and IP67 ingress protection to the Enterprise Anchor. The Ethernet cables enter the header sideways. The header 90-011-0001 can optionally be used to guide the external cables. The ... -
Page 11: Mounting The Ip66/67 Header
8.4.1 Mounting the IP66/67 header 1. Place the RJ 45 connector on the Ethernet cable according to the T568B convention when using an Ethernet cable without pre-confectioned connectors. Warning: Make sure that the RJ45 connectors are suited for the deployed Ethernet cable. 2. -
Page 12: Mounting The Ip20 Header
Warning: To provide IP66/67 protection, the diameter of the Ethernet cables must be tailored to the grommets provided with the header. The standard cable diameter should be 7 mm ±10%. Contact Pozyx for other options. Warning: Make sure that the blind grommet, that is provided with the IP66/67 header, is placed in the right side cable gland if the anchor is the last in an anchor daisy-chain. -
Page 13: Specific Guidelines For 2D Positioning
A tag should be surrounded by anchors in all directions. This can be achieved by placing an anchor in each corner of the room in which tags are to be positioned. 8.5.1 Specific guidelines for 2D positioning: Place the anchors high and in line-of-sight of the user. •... -
Page 14: Anchor Activation
Anchor Activation 8.6.1 UWB functionality The general description of the Enterprise Anchor setup and configuration and as part of a positioning system can be found at https://docs.pozyx.io/enterprise/installing-the-anchors. 8.6.2 Bluetooth functionality The use of the BLE functionality is not supported yet. -
Page 15: Troubleshooting
General malfunction Blinking blue Pozyx reserved mode 10 Ordering information Part Number Description 10-002-0012 Enterprise Anchor V2.1 90-010-0101 IP66/67 cover for the Enterprise Anchor 90-011-0001 IP20 header for the Enterprise Anchor 90-020-0001 VESA pole mount (screws & washers included) 90-020-0002 VESA wall mount (screws &... -
Page 16: Disposal
Please contact the local municipal office for information on the nearest recycling station. 12 Regulatory information 12.1 CE Compliance Statement The manufacturer, Pozyx NV, Vrijdagmarkt 10/201, 9000 Gent, Belgium declares that the product: 10-002-0012: Pozyx Anchor V2.1 with BLE ...
