Summary of Contents for Accu1 Direct 9700

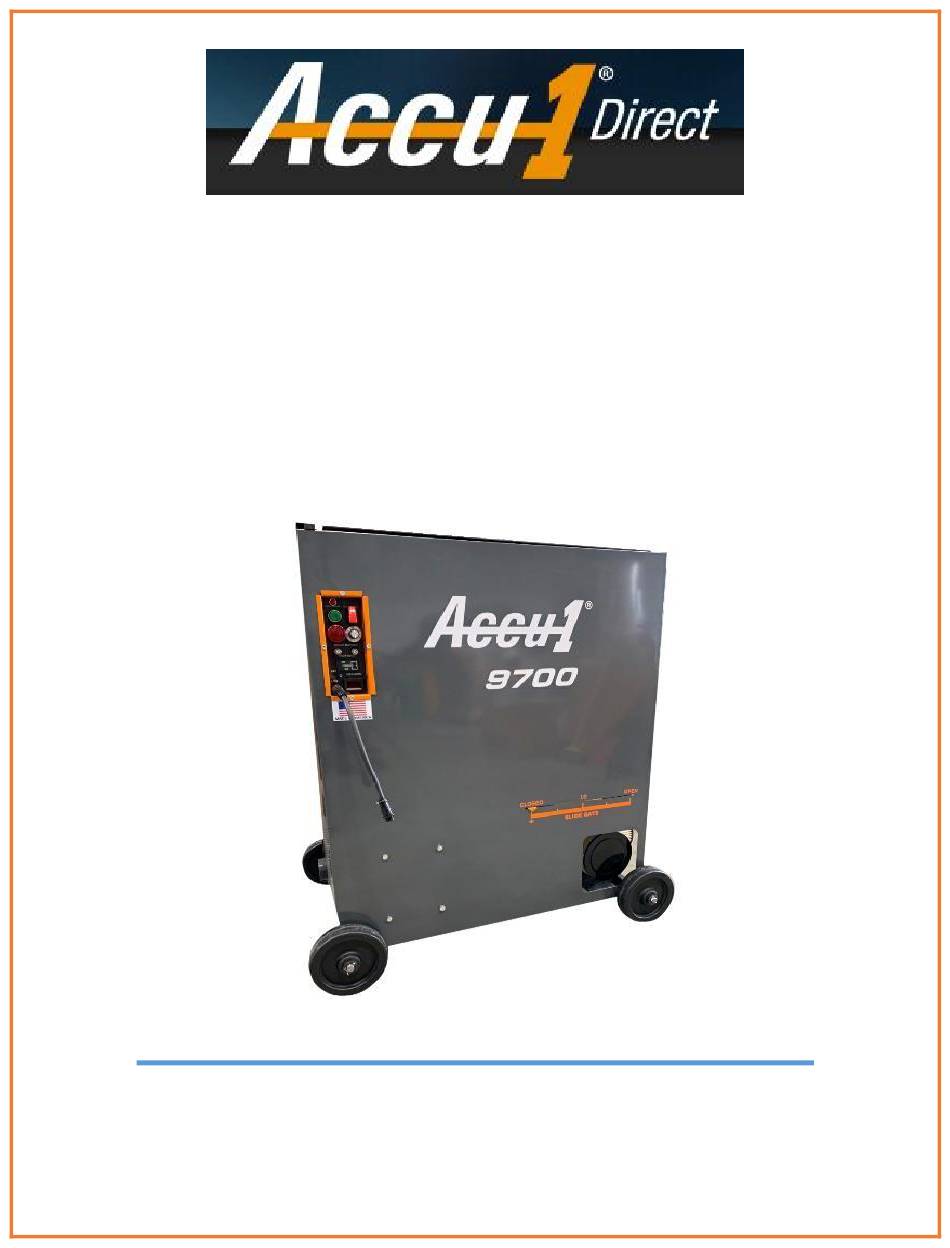

- Page 1 Owner's Manual Model 9700 All-Fiber Blower Accu1Direct, Inc - 138 Denslow Road, East Longmeadow MA 01028 Tel: 800-438-2776 Fax: 413-224-1294 www.accu1.com...
-
Page 2: Table Of Contents
Table of Contents Warranty Page 3 Principles of Operation Page 4 Maintenance Page 5 Warnings Page 6 Operating Instructions Page 7 Machine Adjustments Page 8 Airlock Seal Change Instructions Page 9 Troubleshooting Page 10 Page 2... -
Page 3: Warranty
Warranty Accu1Direct products are warranted to be free from defects in workmanship and materials for a period of five (5) years from date of purchase. The following restrictions apply: 1) The warranty applies to products in normal use only. The product must be serviced and maintained as described herein. -
Page 4: Principles Of Operation
10) All returned goods must be accompanied by a Returned Goods Authorization number (RGA). Contact our factory to obtain the RGA number. Principles of Operation Accu1Direct All-Fiber Machines Accu1Direct’s line of All-Fiber machines move material to specified areas by: 1) Conditioning materials via agitator/auger shafts so that it can be 2) Moved by pressurized air through hoses to the desired spaces. -
Page 5: Maintenance
Maintenance All Accu1Direct equipment is designed to give maximum service with minimum maintenance. The following table is a suggested guide to help you maintain your machine properly. Correct equipment care, i.e. KEEPING THE MACHINE OUT OF THE WEATHER, AND KEEPING FOREIGN OBJECTS OUT OF THE HOPPER, will be rewarded with many years of top performance. -
Page 6: Warnings
Screwdriver Volt-Ohm Meter and Continuity Checker Wrenches: Allen set (English), 8” Adjustable Warnings 1) Do not attempt to service machine while running. 2) Doors and guards must be in place at all times during operation. 3) Do not wear loose fitting clothing or jewelry while using this machine. 4) Keep hands and arms out of the hopper and away from moving parts. -
Page 7: Operating Instructions
Operating Instructions 1) Starting the Model 9700: - Plug the Model 9700 into an appropriate power source via the recessed power receptacle on the rear of the unit with the mating plug provided. - Connect remote to the Model 9700 via the 100’ remote cord provided. -
Page 8: Machine Adjustments
- Press the red Stop button. The Model 9700 will not come on again until the green On button is pressed again. Machine Adjustments Blowers: - Use Blower Speed dial located on electrical panel. Lower numbers represent lower speed; higher numbers represent higher speed. -
Page 9: Airlock Seal Change Instructions
Airlock Seal Replacement Instructions Regular maintenance on your Accu1Direct Model 9700 will extend the life of the equipment and provide better production. Replace all of your airlock seals as soon as a decrease in production occurs. Airlock seal life may vary dramatically because of such factors as type and quality of material used (the more abrasive the material, the shorter the seal life) and damaging objects like knives, hammers, or nails. -
Page 10: Troubleshooting
Page 10... - Page 11 Page 11...
