Summary of Contents for AUDIFIED RZ062
- Page 1 áUDIFIED RZ062 Equalizer User Manual Version 2.0 http://audified.com/rz062-equalizer http://services.audified.com/download/RZ062Equalizer http://services.audified.com/support...
-
Page 2: Table Of Contents
Calibration Top bar Preset management Services menu Utility menu Detailed controls description Treble control Bass control Mid control (RZ062 A) Presence control (RZ062 B) Input and output control LINK switch LR-MS switch Saturation indicators Technical specification SW Specifications SW Requirements... -
Page 3: Introduction
‣ áUDIFIED Introduction Thank you for purchasing AUDIFIED RZ062 Equalizer version 2. AUDIFIED RZ062 is a model of famous EQ used in Europe for mixing, mastering and movie sound. New in version 2.0 This new version of the RZ062 Equalizer brings updated interface with the calibration accessible as a... -
Page 4: Software Installation
RZ062 Equalizer ‣ áUDIFIED The look of meters, switches and knobs outside of the RZ062 is the same as the look of really existing controls on the mixing console where RZ units were usually mounted. Software Installation Download the recent version of the plug-in: http://services.audified.com/download/RZ062Equalizer... -
Page 5: Working With Rz062

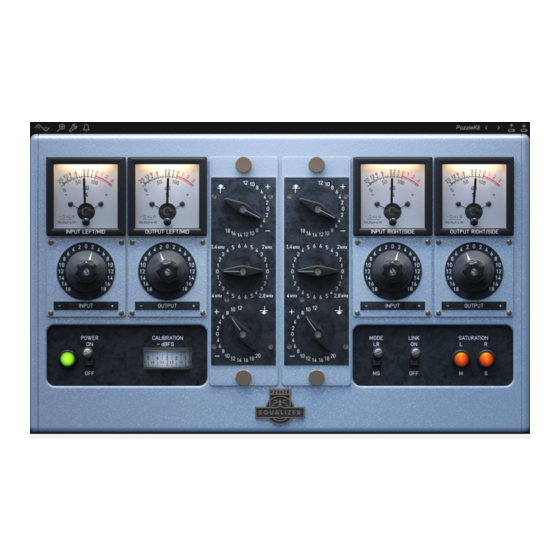

RZ062 Equalizer ‣ áUDIFIED Working with RZ062 Control overview Meters for the left Meters for the right channel or mid channel channel or side channel The EQ section. according to the LR-MS according to the LR-MS mode mode The LR-MS Main ON-OFF Mono-stereo link. -
Page 6: Calibration
You may set the default calibration in the Utility menu. Top bar The bar on top of the plug-in provides access to general functions offered by Audified plug-ins. Preset management Presets can be loaded and saved using symbols on the right of the top bar. -
Page 7: Utility Menu
Hint: You may paste the settings to a plain text file and send the file to a friend to share plug-in settings. He/she will copy the contents of the file and paste to RZ062 using the same menu on another computer... -
Page 8: Detailed Controls Description
Adjusts the frequencies between 40 Hz - 1 kHz ‣ The control works in range of +12 /-20 dB Mid control (RZ062 A) ‣ Rotates the entire frequency curve by a medium frequency (650 Hz), i.e., when the bass frequencies are raised, the treble are simultaneously lowered and vice versa. -
Page 9: Input And Output Control
LR-MS switch ‣ If the switch is in the LR position, the left part of the RZ062 controls the left channel and the right part controls the right channel. ‣... -
Page 10: Technical Specification
Windows 7 and newer ‣ 400 MB disk space required Conclusion We are confident that you can now work with the RZ062. However, if anything seems unclear or you need assistance, feel free to contact us at http://services.audified.com/support Thanks for using AUDIFIED products.
