Summary of Contents for Hiland RS0103

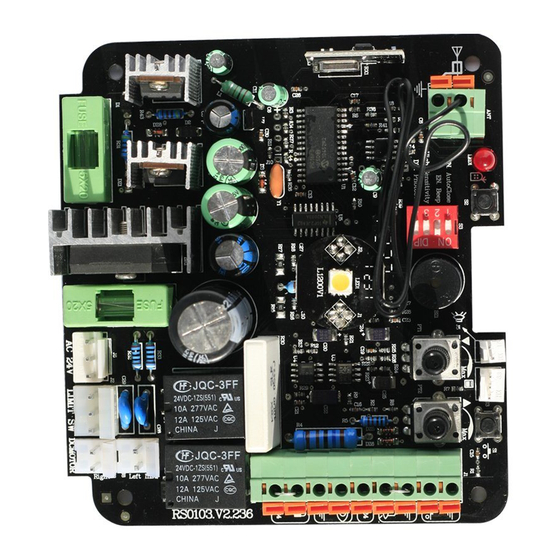

- Page 1 RS0103 Rolling shutter controller user manual A0...
- Page 2 I.Technical parameters 1．Working voltage: 24V AC 2．Temperature range：-20℃ to 60℃ 3．Loading capacity：100W, 24VDC 4. Built-in fuse: motor (10A), electric circuit (0.5A); please exchange appropriate fuse according to loading capacity 5．Working frequency: 433.92MHz 6．Stored transmitters: 6pcs II.Safety Instruction 1．For security, please read instructions carefully before initial operation; making sure that the power is off before connection.
- Page 3 IV、Connection 4.1 DIP Switch DIP 1： DIP 2： DIP 3： 4 ： Auto close Buzzer beeps Increase Photocell function is on after every sensitivity protection is when DIP 1 operation when resistance when on when DIP at ON DIP 2 at ON DIP 3 at ON 4 at off 4.2 Limit switch port J2: External limit switch NC contact, otherwise cannot open or close door.
- Page 4 4.6 Anti-theft switch: It connects NC switch and J5 port is at 23VDC alarm. It will the alarm if the door is forced to open when the door is closed to the limit. The port could be short circuit by shorting stub if this function is unused V.
- Page 5 5.6． Resistance adjustment: Adjust potentiometer of opening door to change the opening and closing resistance. Adjust potentiometer of closing door to change the closing resistance. Make a resistance to door after the adjustment in order to check if it is appropriate. VI、...
