w w w . l u z n e g r a . n e t

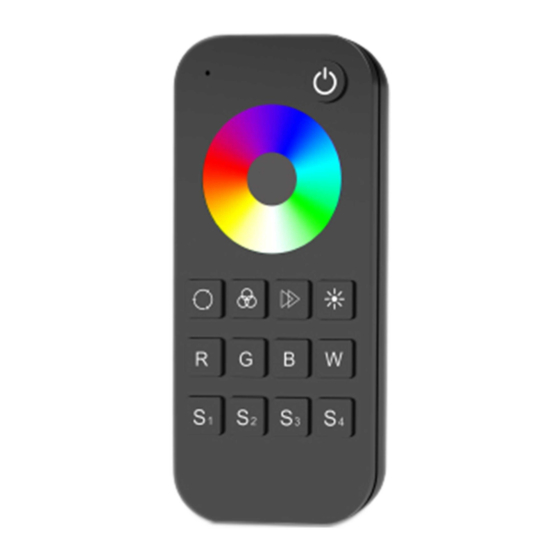

REMOTE CONTROL RGB/RGBW
Ref:
41.092
3V
• For RGB or RGBW led controller.
• Ultra sensitive colour adjustment touch wheel.
• Independent dimming function of each R, G, B, W channel to
achieve millions of colours.
• Each remote can match one or more receivers.
• AAAx2 battery powered.
• Operates with led indicator light.
• Magnet on the back which can be fixed to back holder.
Compatible with receiver:
• 41.091
Measurements:
122mm
53mm
C/ Carles Buhigues, 13
Tel: +34 938 402 598
17.5mm
BARCELONA
08420 Canovelles
Info@luznegra.net
Voltage (V)
Control
Working current
Standby current
Distance control
Measurements
Working temperature
Wall bracket
Memory
Control intensity
Receiver included
Waterproofing
Packaging
Guarantee
Approved by:
53.5mm
MADRID
C/ Adaptación, 27
28906 Getafe
centro@luznegra.net
Tel: +34 916 416 081
SEQUENCERS
3V
voltage
IP20
3V
2.4GHz
< 5mA
< 10μA
30m
122x53x17.5mm
-30ºC / +55ºC
yes
yes
yes
no
IP20
1 unit
3 years
PARIS
113 Avenue Joffre
77450 Esbly
france@luznegra.net
Tel: +33 (0) 160 426 585
Advertisement
Related Manuals for LUZ NEGRA ecoled 41.092
Summary of Contents for LUZ NEGRA ecoled 41.092
- Page 1 w w w . l u z n e g r a . n e t REMOTE CONTROL RGB/RGBW SEQUENCERS Ref: 41.092 • For RGB or RGBW led controller. • Ultra sensitive colour adjustment touch wheel. • Independent dimming function of each R, G, B, W channel to achieve millions of colours.
- Page 2 w w w . l u z n e g r a . n e t REMOTE CONTROL RGB/RGBW SEQUENCERS Mechanical installation: To fix the remote, three options are offered: 1. Fix the remote directly on to any metal surfaces. 2.
- Page 3 w w w . l u z n e g r a . n e t REMOTE CONTROL RGB/RGBW SEQUENCERS Diagram: Light on/off. Touch to change static RGB colour. Short press gives 24 types of static RGB colour. Long press for continuous static colour adjustment. 25 (1) R 100% G 100%...
