Summary of Contents for FulTyme RV 2105

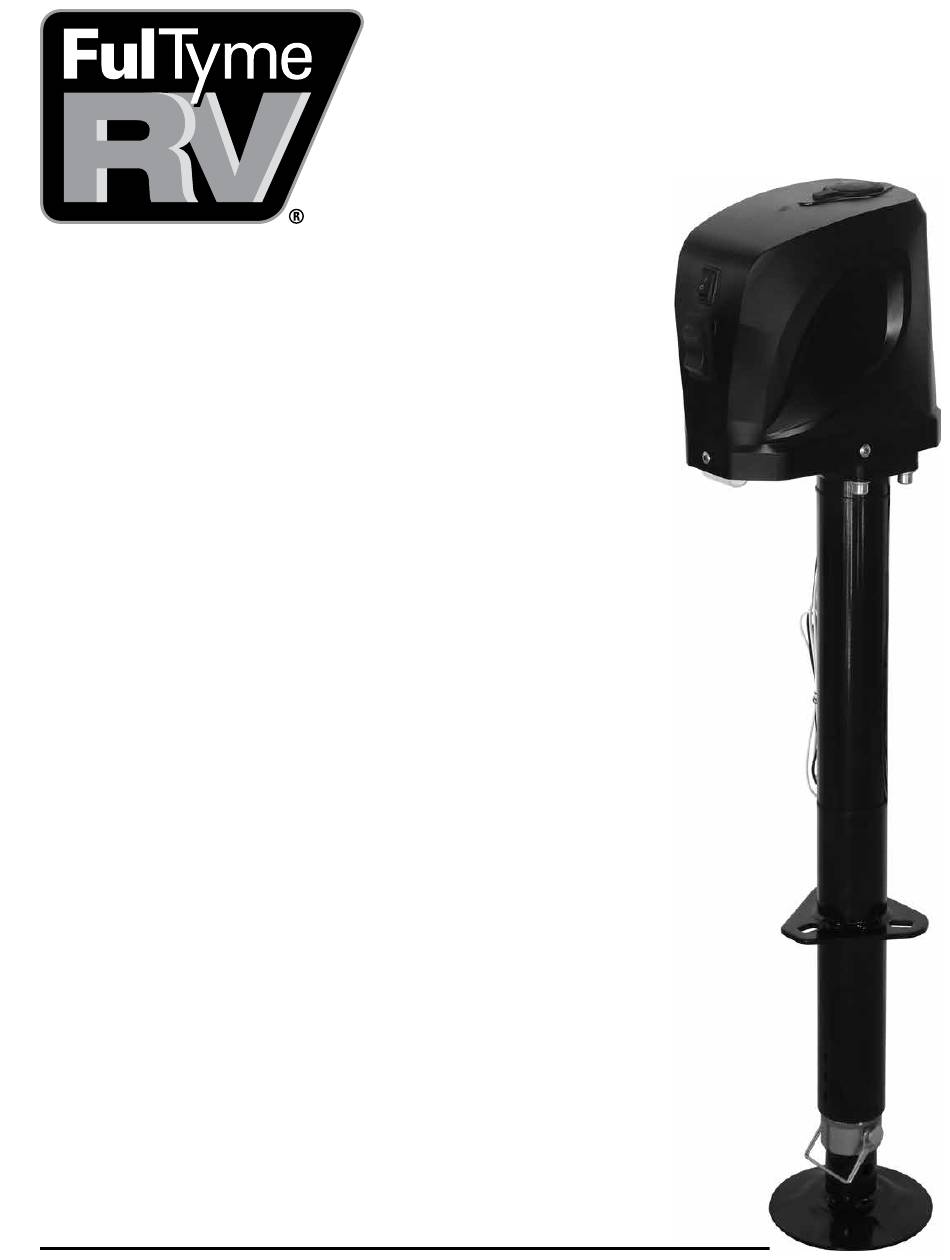

- Page 1 Model 2105 5,000 LB. (2,268 KG) 12V ELECTRIC TRAILER JACK INSTALLATION & OPERATION MANUAL...
-
Page 2: Intended Use
MODEL 2105 • 5,000 LB. 12V ELECTRIC TRAILER JACK WARNING: Read, Understand, Follow and Save These Instructions. Failure to follow all warnings and instructions may result in product failure, property damage, serious personal injury. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. -
Page 3: Exploded View
INSTALLATION & OPERATION MANUAL EXPLODED VIEW PARTS LIST Parts No. Description Override Protection Cover Plastic Cover LED Light Switch Up/Down Switch Motor 6-10 Gear Assembly Drive Shaft Short Positive/Negative Wire LED Light Wiring Board ACME Screw Outer Tube Crank Mounting Plate Power Supply Wire(black color) Inner Tube Ground Wire(White color) -
Page 4: Installation Instructions
MODEL 2105 • 5,000 LB. 12V ELECTRIC TRAILER JACK SAVE THESE INSTRUCTIONS – IMPORTANT SAFETY CONSIDERATIONS JACK USE AND CARE • Do not modify the jack in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the equipment. There are specific applications for which the jack was designed. -
Page 5: Operation
INSTALLATION & OPERATION MANUAL 10. Connect the BLACK wire lead from the jack directly to the positive (+) terminal of the battery or junction box. This unit has a built-in circuit breaker which automatically trips and resets if the amperage is too high. Now connect the WHITE ground wire to the negative (-) battery terminal or to the trailer frame. -
Page 6: Troubleshooting
MODEL 2105 • 5,000 LB. 12V ELECTRIC TRAILER JACK TROUBLESHOOTING Refer to below troubleshooting guide if the device does not function properly or parts are missing. If unable to do so, have a qualified technician service the device. Failure Possible Cause Corrective Action Check battery &... - Page 7 INSTALLATION & OPERATION MANUAL If jack leg is at fully retracted or – extended position Worn gear Replace gear Dirty Inner Tube Clean inner tube and coat with light coat of silicone spray Motor Clutch Bent Inner Tube Replace inner tube Engages Clutch Faulty Replace motor...
-
Page 8: Limited 1-Year Warranty
MODEL 2105 • 5,000 LB. 12V ELECTRIC TRAILER JACK LIMITED 1-YEAR WARRANTY We make every effort to assure that this product meets high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of one years from the date of manufacture, provided that installation and use of the product is in accordance with product instructions.
