SA-59

GSM Communicator

Installation and User Manual

Table of Contents

Need help?

Do you have a question about the SA-59 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rosslare SA-59

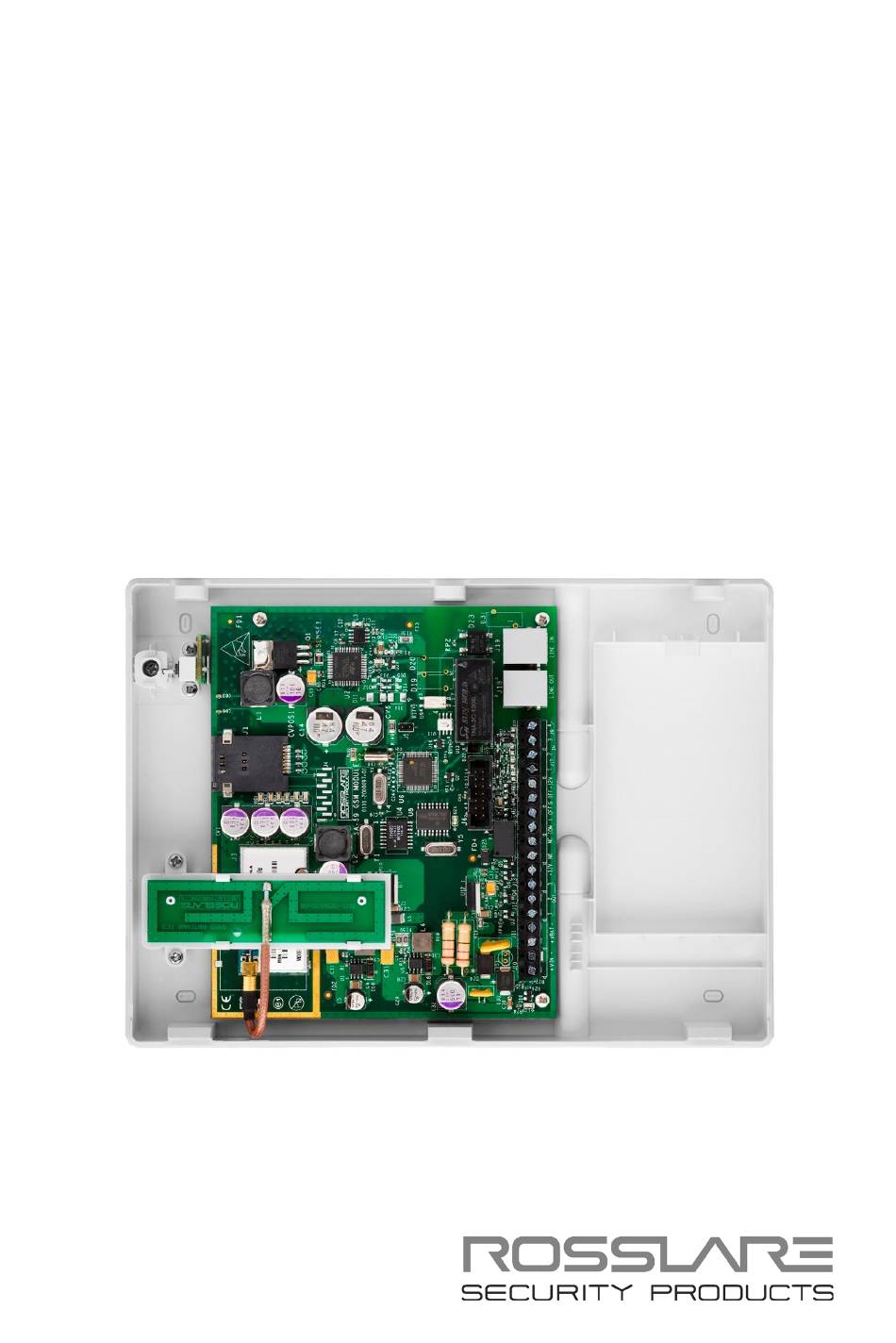

Page 1 SA-59 GSM Communicator Installation and User Manual...
Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.
Page 3: Table Of Contents
4. Messaging Types ............. 12 SMS Messaging Types ............... 12 5. Programming ..............13 Programming the System ..............13 5.1.1 Prefix Number Programming ..............13 5.1.2 Phone Number Programming ..............14 A. Limited Warranty ............15 SA-59 Installation and User Manual...
Page 4 List of Figures List of Figures Figure 1: SA-59 Components ................. 9 Figure 2: Wiring Diagram ................10 SA-59 Installation and User Manual...
Page 5 List of Tables List of Tables Table 1: LED Indicators ................... 9 Table 2: I/O Description .................. 9 Table 3: Inputs ..................... 11 SA-59 Installation and User Manual...
Page 6  ROSSLARE exclusive warranty and liability is limited to the warranty and liability statement provided in an appendix at the end of this document. ...
Page 7: Introduction
The SA-59 is a universal GSM reporting unit and communicator. When it is connected to an alarm panel, the SA-59 operates as a GSM backup unit to the PSTN line, enabling outgoing calls to be redirected to the GSM network if the PSTN line fails.
Page 8: Technical Specifications
0°C to 60°C (32°F to 140°F) Operating Humidity Range 0 to 95% (non-condensing) Physical Characteristics Dimensions (H x W x D) 162 x 223 x 35 mm (6.4 x 8.8 x 1.4 in.) Weight 435 g (15.3 oz) SA-59 Installation and User Manual...
Page 9: Installation
Installation Installation General Figure 1 shows the components of SA-59. Figure 1: SA-59 Components 3.1.1 LED Indicators Table 1 shows the LED indicators. Table 1: LED Indicators Description GSM Power ON – Power supply is connected to device Transmission – Transmission of signal to antenna Reset –...
Page 10: Wiring
When the input is set to 1 (not connected), the output returns to its steady state. Wiring Figure 2 shows the main components on the SA-59 board, including terminal blocks and LED indicators. Figure 2: Wiring Diagram SA-59 Installation and User Manual...
Page 11: Mounting
Mounting The SA-59 mounts on a wall using the unit’s casing. To mount the casing: Make 4 holes for the casing and attach to the wall. Thread cables along the back cover into the panel via holes provided.
Page 12: Messaging Types
The system memory holds 4 telephone numbers enabling messaging and notification to relevant parties when the Alarm System is violated. All SMS’s are controlled by changing the 4th input in the SA-59. SMS Messaging Types Input...
Page 13: Programming
PSTN line. To prepare the unit for programming: Connect the telephone to "Line OUT". Wait for a dial tone. Ensure that the SA-59 is not connected to PSTN lines. The default installer code is 5555. 5.1.1 Prefix Number Programming When using the GSM network, the addition of a prefix number may be needed.
Page 14: Phone Number Programming
Limited Warranty 5.1.2 Phone Number Programming Up to three numbers can be programmed into the SA-59 unit, to which the system sends an SMS message in the event of an event or alarm. To program the first phone number: Press 5555 to enter Program mode.
Page 15: Limited Warranty
The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. SA-59 Installation and User Manual...
