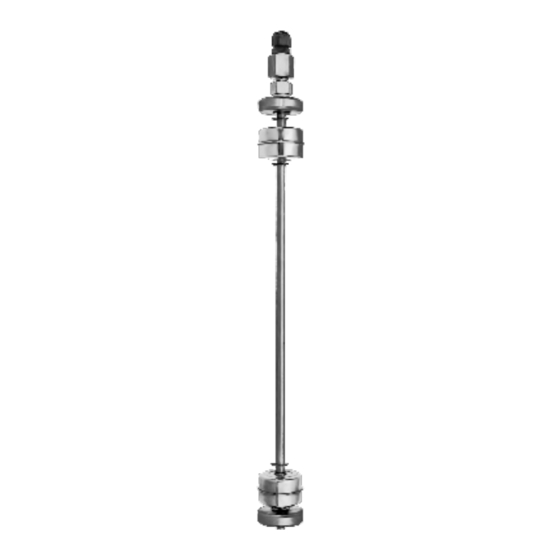

- Page 1 L500S SUSPENDED FLOAT SWITCH INSTALLATION AND OPERATIONS MANUAL Single or Multi-Point, Vertically-Suspended, Liquid Level Float Switch...
- Page 2 Innovation is committed to providing full customer satisfaction; both in quality products and in quality service. Contacts Phone: 203-729-6434 Mon-Fri, 9 AM - 5 PM EST Fax: 203-729-0541 for General Inquiries Email: sales@innovativesensing.com L500S SINGLE OR MULTI-POINT SUSPENDED LIQUID LEVEL FLOAT SWITCH...
-
Page 3: Table Of Contents
3.3 Troubleshooting..............7 3.3.1 External Causes............7 3.3.2 Unit Causes..............8 3.4 Agency Approvals..............9 3.5 Specifications................9 3.5.1 Physical Specifications..........9 3.5.2 Electrical Specifications..........9 3.5.3 Switch Wiring Codes...........9 3.5.4 Dimensional Specifications........10 3.6 Model Configurator............10 3.7 Notes...................11 L500S SINGLE OR MULTI-POINT SUSPENDED LIQUID LEVEL FLOAT SWITCH... -
Page 4: Unpacking
L500S Suspended Liquid Level Float Switch. 1.2.2 Equipment and Tools No special equipment or tools are required to install the L500S Suspended Liquid Level Float Switch. The Following Are Recommended: • Wrenches, thread sealant, gaskets and/or bolting as required for the process connection. -
Page 5: Mounting
1.3 MOUNTING The L500S Suspended Liquid Level Float Switch is available in a variety of threaded and flanged mountings. These devices are meant to be installed on the top of a process tank. They should be mounted in an area free of turbulence or direct streams. Contact the manufacturer for flanged mounting options. -
Page 6: Preventative Maintenance
2.0 PREVENTATIVE MAINTENANCE Periodic inspections are necessary to maintain the proper functionality of the L500S Suspended Liquid Level Switch. The switch is a safety device that protects the equipment it serves. A systematic program of preventative maintenance should be implemented at the time of installation. If the following instructions are completed routinely, the switch will provide continuous, reliable protection. -
Page 7: Reference Information
A compression fitting secures the cable in place and forms a leak-tight seal. The L500S is available in PVC, brass/buna and stainless steel materials. Additional options include special configurations and switch points. -
Page 8: Unit Causes
EXTERNAL CONDITIONS AS DESCRIBED IN SECTION 3.3.1. THE UNIT STILL DOES NOT FUNCTION. If you are still in doubt about the condition or performance of your control, consult the factory for further instructions. L500S SINGLE OR MULTI-POINT SUSPENDED LIQUID LEVEL FLOAT SWITCH... -
Page 9: Agency Approvals
White Green White selected. Green Brown Blue 3 Standard Cables are 15’ long, 22 AWG, UL 2464 cable. Orange Orange Yellow L500S SINGLE OR MULTI-POINT SUSPENDED LIQUID LEVEL FLOAT SWITCH... -
Page 10: Dimensional Specifications
316 S.S. Buna-N 08 100 VA SPDT 2 Aluminum NEMA 4/7/9 20 VA SPST Cast Iron NEMA 4/7/9 L 5 0 0 S 0 8 0 1 2 0 0 3 L500S SINGLE OR MULTI-POINT SUSPENDED LIQUID LEVEL FLOAT SWITCH... -
Page 11: Notes
3.7 NOTES L500S SINGLE OR MULTI-POINT SUSPENDED LIQUID LEVEL FLOAT SWITCH... - Page 12 Products returned under RMA’s can be issued through local representatives, or by the SWI Service Policy must be returned by prepaid contacting the factory directly. transportation. Solutions With Innovation will repair or...
